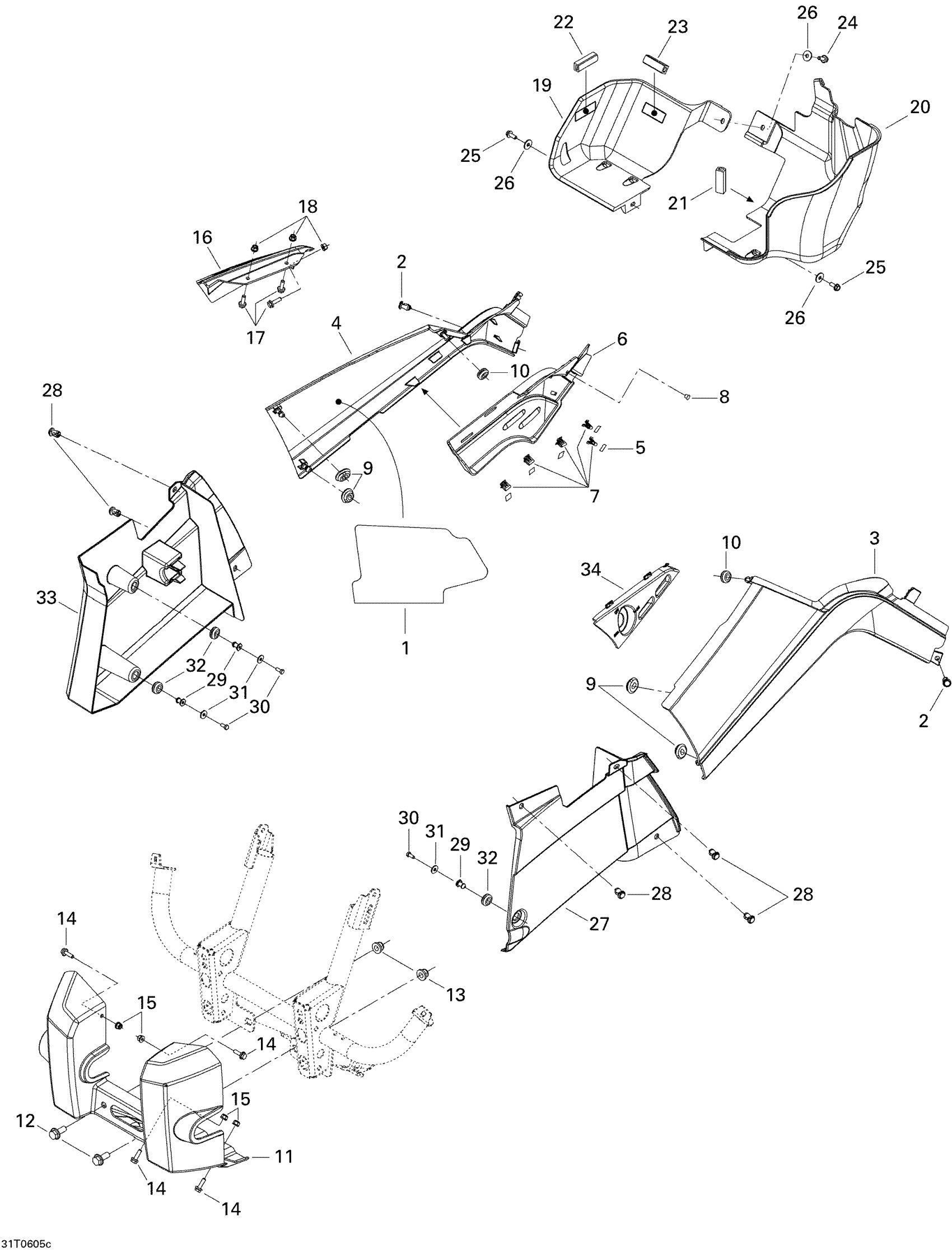

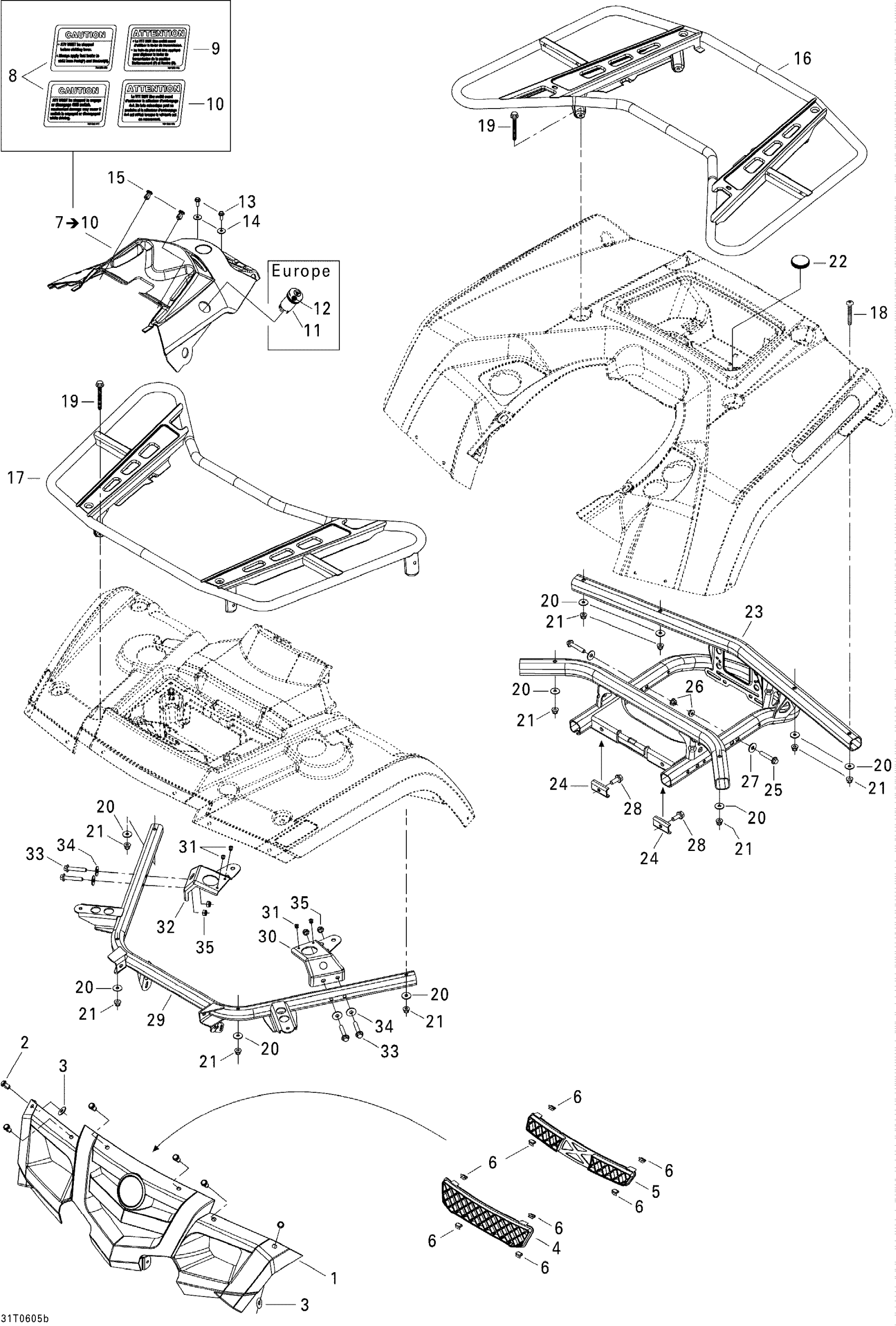

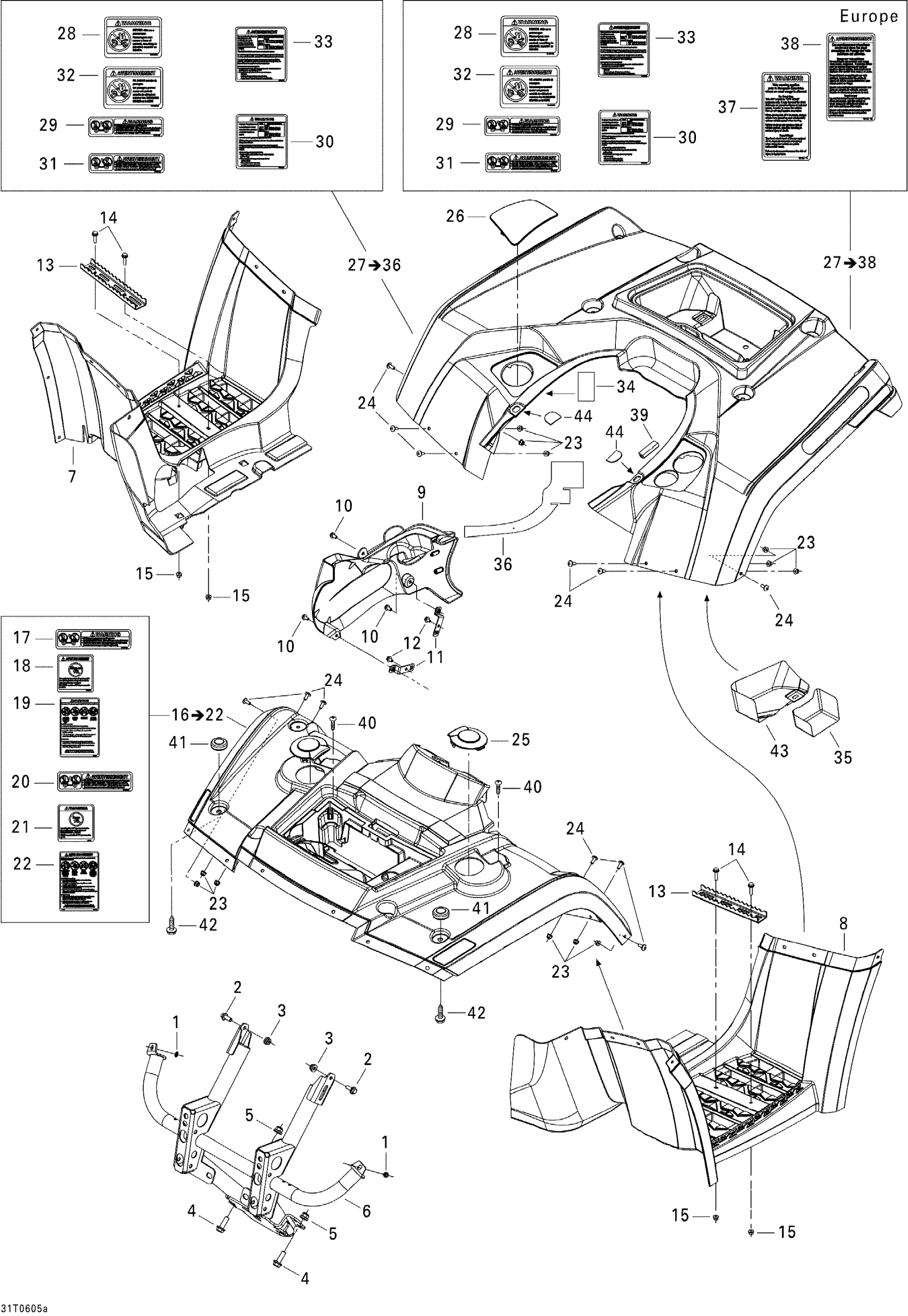

Can-Am Outlander 400 XT 4 X 4, 2006 Body And Accessories Diagram

#

Description
Price

1

FRONT FASCIA, RED - Call your local BRP dealership | Viper Red

705001313

Unavailable

1

FRONT FASCIA, YELLOW - Call your local BRP dealership | Yellow

705001991

Unavailable

1

FRONT FASCIA, GREEN - Call your local BRP dealership | Laurentian Green

705001992

Unavailable

1

Front Fascia, Camo | Camo, B-005

705002012

Unavailable

2

Tuflok Plastic Rivet

293150230

$1.49

3

Flat Washer 8 mm

234082410

$1.49

4

LOWER GRILL - Call your local BRP dealership

705001679

Unavailable

5

UPPER GRILL - Call your local BRP dealership

705001901

Unavailable

6

Clip | Europe Models

517306751

$2.19

7

Console, Viper Red | Includes 4 to 7 / Viper Red

703500266

Unavailable

7

Console, Laurentian Green | Includes 4 to 7 / Laurentian Green

703500267

Unavailable

7

Console, Yellow | Includes 4 to 7 / Yellow

703500330

Unavailable

7

Dash-board, Camo | Includes 7 to 10, Camo

703500669

Unavailable

8

Caution Decal, Lever And 4wd Switch | English Version

704900434

Unavailable

9

Caution Decal, Shifting Lever | French Version

704900475

Unavailable

10

CAUTION DECAL, 4WD SWITCH - Call your local BRP dealership | French Version

704900476

Unavailable

11

EMERGENCY SWITCH - Call your local BRP dealership | Includes 8 to 9 / Europe

710000367

Unavailable

12

EMERGENCY SWITCH LIGHT BULB - Call your local BRP dealership | Europe

710000661

Unavailable

13

Hex. Flange Screw M6 X 16

210261650

$1.69

14

Flat Washer

250200082

$1.49

15

Tuflok Plastic Rivet

293150230

$1.49

16

Rear Luggage Rack

705002617

$275.49

17

Front Luggage Rack

705002616

$275.49

18

Torx Truss Screw M6 X 50

250000749

$3.29

19

Hex. Flange Screw M6 X 50

207665044

$4.19

20

Flat Washer

224061201

$1.49

21

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.49

22

CAP - Call your local BRP dealership

414859400

Unavailable

23

Rear Support

705003656

$275.49

23

Rear Support | Camo, B-005

705002004

Unavailable

24

U Reinforcement

705003647

$8.19

25

Hex. Flange Screw M8 X 50

207685044

$1.69

26

Hex. Flange Elastic Nut M8

233281414

$1.49

27

Flat Washer 8 mm

234082410

$1.49

28

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.69

29

FRONT SUPPORT - Call your local BRP dealership

705003655

Unavailable

30

LH ANCHOR PLATE - Call your local BRP dealership

705000692

Unavailable

31

Pop Rivet 3/16"

390402300

$1.49

32

RH Anchor Plate

705002997

$18.49

33

Hex. Flange Screw M8 X 45

207684544

$3.89

34

Flat Washer 8 mm

234082410

$1.49

35

Hex. Elastic Stop Nut M8

232581414

$1.49
