Partiron

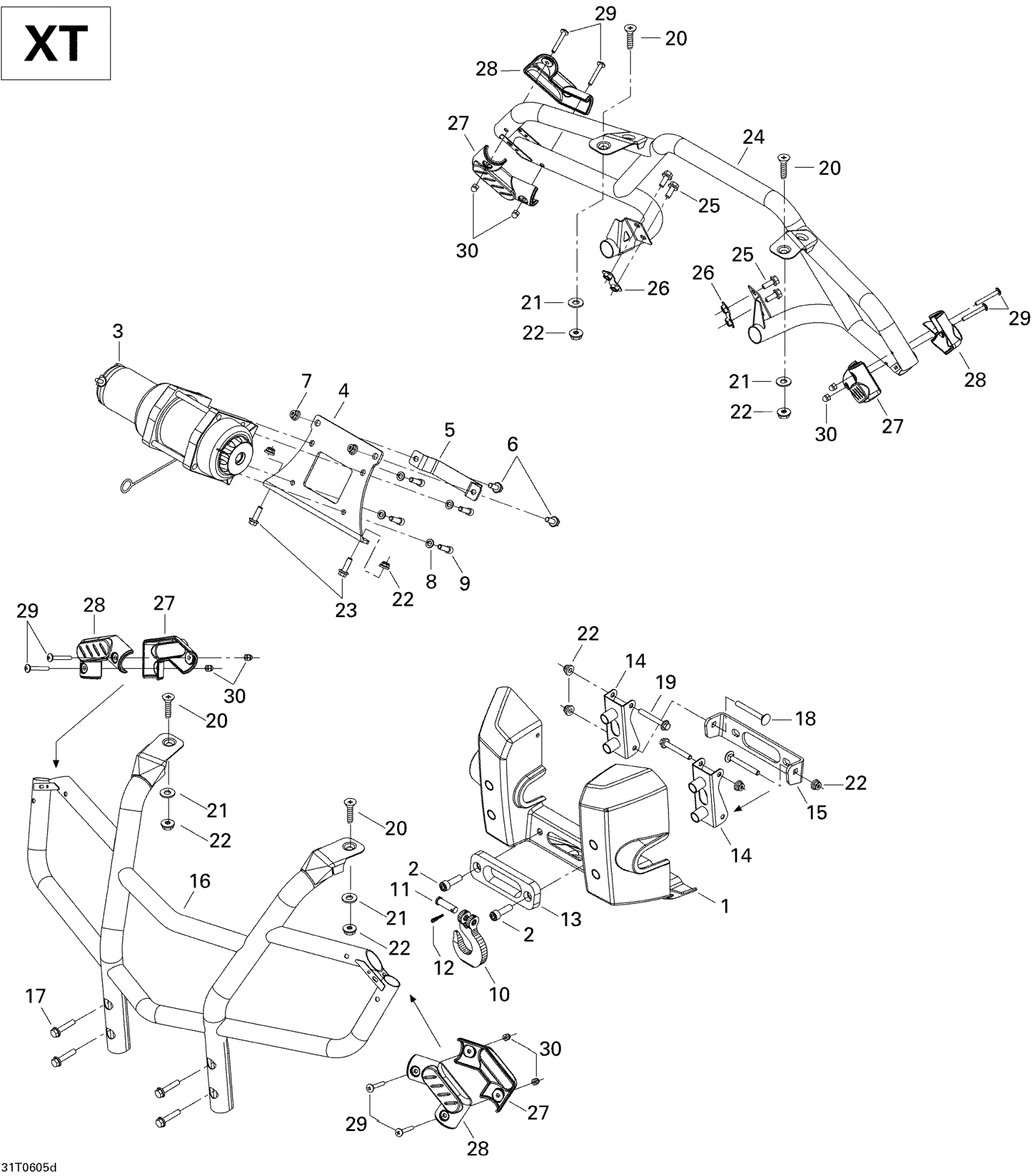

Can-Am Outlander 400 XT 4 X 4, 2006 Body And Accessories XT Diagram

#

Description
Price

1

GUARD PLATE - Call your local BRP dealership

705003496

$34.58

2

Socket Screw M10 X 35

205003544

$1.39

3

WINCH - Call your local BRP dealership

705000839

Unavailable

4

BLACK MOUNTING PLATE - Call your local BRP dealership | XT

705004278

$41.51

5

BLACK WINCH BRACKET - Call your local BRP dealership | XT

705001460

$12.20

6

Hex. Flange Screw M8 X 25

207682544

$0.90

7

Hex. Flange Elastic Nut M8

233281414

$1.14

8

Lock Washer 8 mm

234181401

$0.89

9

SOCKET SCREW 5/16-18 X 1 - Call your local BRP dealership

250000041

$2.39

10

Winch Hook Kit

705014949

$27.66

11

Clevis Pin

250400021

$11.83

12

Cotter Pin

250400022

$8.66

13

CABLE GUIDE - Call your local BRP dealership

705000194

$23.82

14

BUMBER ANCHORING - Call your local BRP dealership

705003006

$13.83

15

renfort de pare-chocs - Call your local BRP dealership

705001073

Unavailable

16

FRONT BUMPER - Call your local BRP dealership | XT

705001964

Unavailable

17

Hex. Flange Screw M8 X 40, Scotch Grip

207584044

$1.07

18

Carriage Bolt M8 X 70

207787044

$1.11

19

Hex. Flange Screw M8 x 60

207686044

$2.56

20

TORX SCREW M8 X 20 - Call your local BRP dealership | XT

235482084

Unavailable

21

Flat Washer 8 mm

234082410

$1.11

22

Hex. Flange Elastic Nut M8

233281414

$1.14

23

Hex. Flange Screw M8 X 25

207682544

$0.90

24

REAR BUMPER - Call your local BRP dealership | XT

705001973

Unavailable

25

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.39

26

ATTACHMENT PLATE - Call your local BRP dealership

705001075

Unavailable

27

MALE CAP - Call your local BRP dealership

705001042

$9.20

28

FEMALE CAP - Call your local BRP dealership

705001043

$9.20

29

Torx Screw M6 X 45

250000215

$1.56

30

Domed Nut M6

232361493

$1.77
