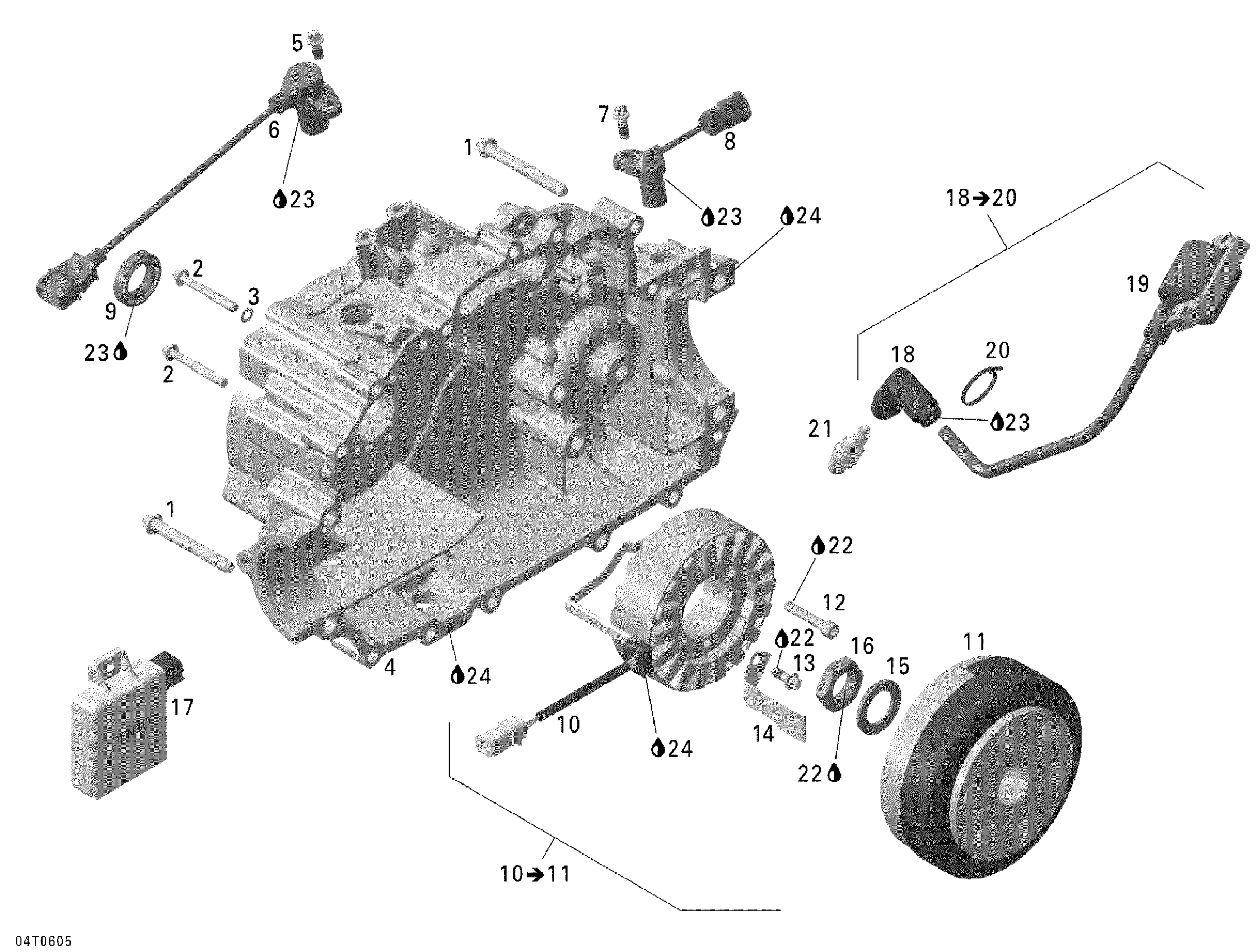

Can-Am Outlander 400 XT 4 X 4, 2006 Magneto Diagram

#

Description
Price

1

Torx Flange Screw M8 X 65

420440402

$7.23

2

Torx Flange Screw M6 X 45

420440324

$0.81

3

Seal Washer

420230415

$1.77

4

Not Available As Spare Part - Friction Washer

Unavailable

5

Torx Flange Screw M6 X 16

420440162

$3.11

6

Crankshaft Position Sensor Ass'y | Includes 10 to 11

420966570

$92.92

7

Torx Flange Screw M6 X 16

420440162

$3.11

8

Camshft Position Sensor Ass'y

420265727

$108.89

9

Oil Seal

420930392

$11.77

10

AC Generator | Includes 10 à 11

420684040

Unavailable

10

STATOR ASS'Y - Call your local BRP dealership

420684850

Unavailable

11

MAGNETO FLYWHEEL - Call your local BRP dealership

420684045

$566.12

12

Torx Flange Screw M6 X 35

420440274

$0.83

13

Torx Flange Screw M6 X 16

420440162

$3.11

14

Inner Cable Cover

420251270

$10.98

15

Lock Washer, 22 mm

420945759

$1.55

16

Hex. Nut, M22 X 1.5

420842239

$14.27

17

AMPLIFIER BOX - Call your local BRP dealership | 400HO

420664285

Unavailable

18

IGNITION COIL ASS'Y - Call your local BRP dealership | Includes 57 to 58

420265358

$133.05

18

Spark Plug Connector

420265248

$31.51

19

Not Available As Spare Part - Friction Washer

Unavailable

20

Not Available As Spare Part - Friction Washer

Unavailable

21

Spark Plug, NGK DCP-R8E

715900637

$5.66

22

Loctite 243, 10 ml

293800060

$20.77

23

Grease, Super Lube

293550030

$24.67

24

Loctite 5910, 300 ml

293800081

$57.99
