Description

Price

1

Gasket

707600317

$10.52

2

Hex. Flange Nut M8

233081416

$1.63

3

Tuned Pipe

707600374

Unavailable

3

Head Pipe | Europe

707600405

Unavailable

4

Spring

415107100

$6.20

5

SPRING - Call your local BRP dealership

707600207

$4.58

6

Muffler Support

707600194

Unavailable

7

Hex. Flange Screw M8 X 12, Scotch Grip

207581244

$0.92

8

Flat Washer

250200082

$0.35

9

HEX. FLANGED SCREW M6 X 12 - Call your local BRP dealership

250000073

Unavailable

10

HEAT SHIELD - Call your local BRP dealership

707600224

$19.20

11

HEAT DEFLECTOR - Call your local BRP dealership | Europe Models

707600313

$12.28

12

Clip | Europe Models

517306751

$1.97

13

MUFFLER - Call your local BRP dealership

707600395

Unavailable

13

Muffler | Europe

707600361

Unavailable

14

Anti-Vibration Rubber

707600702

$8.34

15

Muffler Braket | Includes 15 to 16

707600282

Unavailable

16

Bushing

293900105

$6.26

17

Hex. Screw M6 X 65

207066544

$0.46

18

Flat Washer

224061121

$0.44

19

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

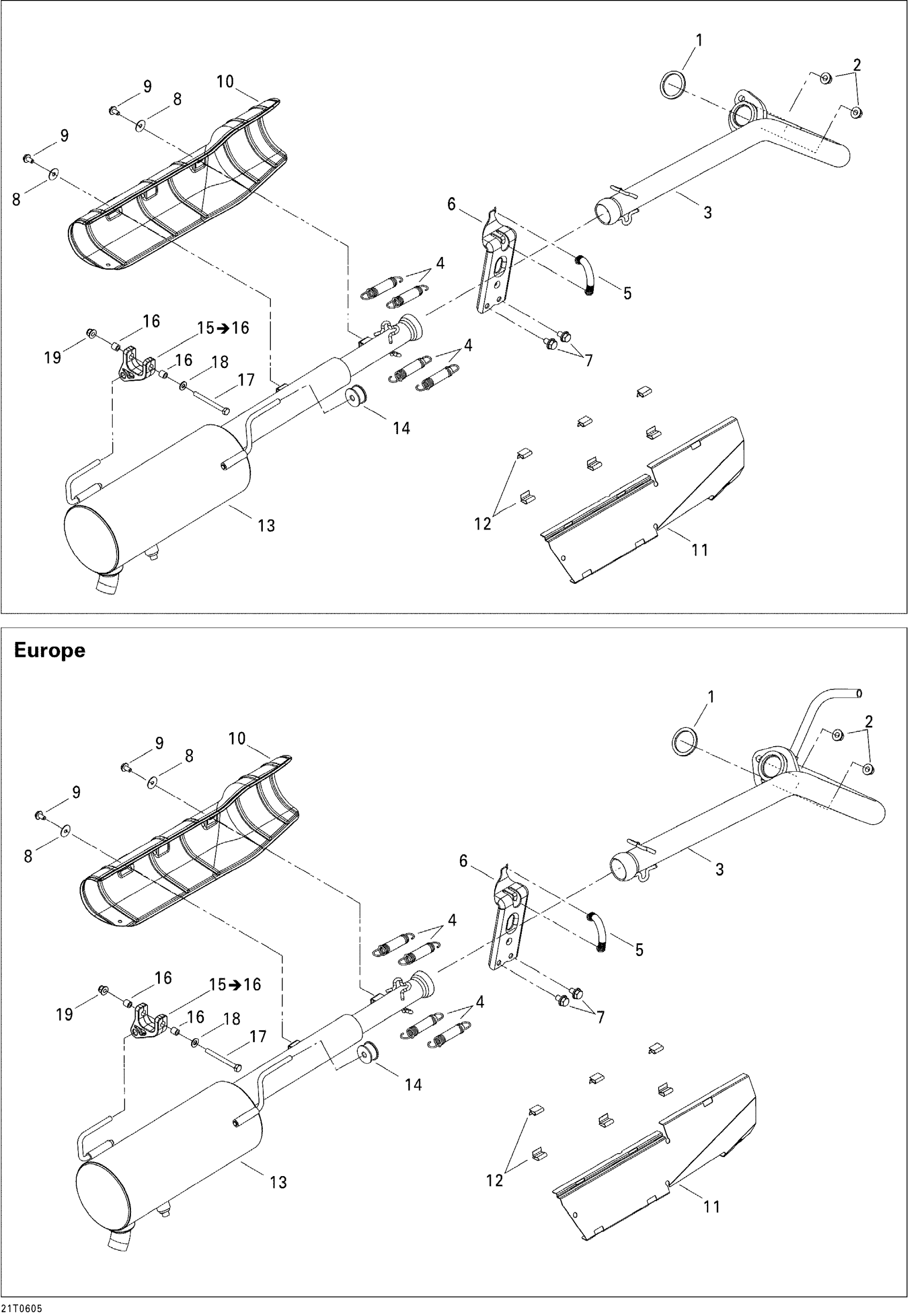

Can-Am Outlander 400 XT 4 X 4, 2006 Exhaust System Diagram

Tuned Pipe

Head Pipe | Europe

Muffler Support

HEX. FLANGED SCREW M6 X 12 - Call your local BRP dealership

MUFFLER - Call your local BRP dealership

Muffler | Europe

Muffler Braket | Includes 15 to 16
