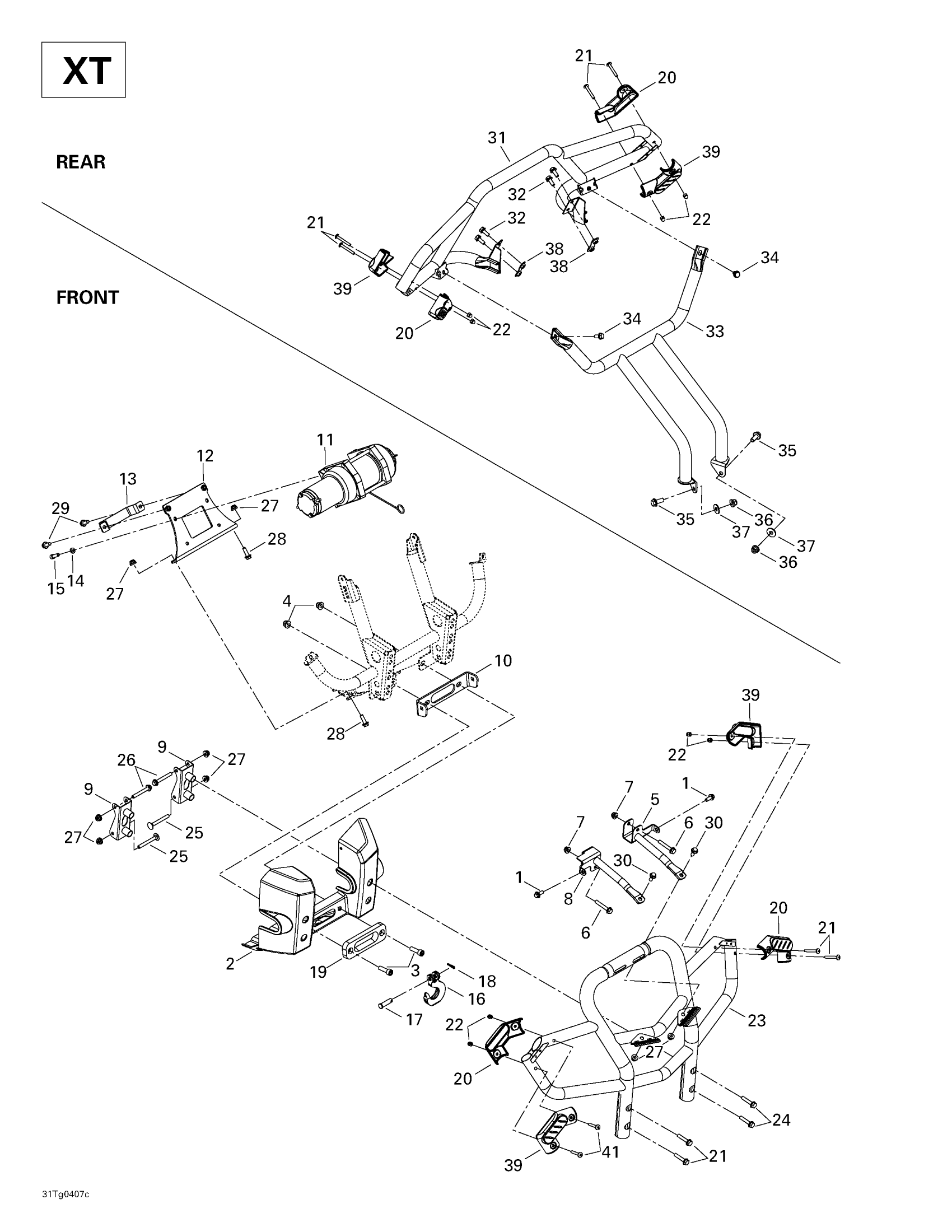

Can-Am Outlander 400 XT 4 X 4, 2004 Winch (XT) Diagram

#

Description
Price

1

Hex. Flange Screw M8 X 25

207682544

$0.90

2

Front Protection Plate

705001076

Unavailable

3

Socket Screw M10 X 35

205003544

$1.39

4

Hex. Flange Elastic Nut M10

233201414

$1.26

5

LH Anchoring

705001186

Unavailable

LH Anchoring | XT & GREEN - SANDSTONE

705001215

Unavailable

LH Anchoring

705001186

Unavailable

LH Anchoring

705001186

Unavailable

LH Anchoring

705001186

Unavailable

6

Hex. Flange Screw M8 X 50

207685044

$1.39

7

Hex. Flange Elastic Nut M8

233281414

$1.14

8

RH Anchoring

705001190

Unavailable

RH Anchoring | XT & GREEN - SANDSTONE

705001216

Unavailable

RH Anchoring

705001190

Unavailable

RH Anchoring

705001190

Unavailable

RH Anchoring

705001190

Unavailable

9

BUMBER ANCHORING - Call your local BRP dealership

705003006

$13.83

10

renfort de pare-chocs - Call your local BRP dealership

705001073

Unavailable

11

WINCH - Call your local BRP dealership

705000839

Unavailable

12

MOUNTING PLATE - Call your local BRP dealership

705000415

Unavailable

13

BRACKET - Call your local BRP dealership

705000416

$8.68

14

Lock Washer 8 mm

234181401

$0.89

15

SOCKET SCREW 5/16-18 X 1 - Call your local BRP dealership

250000041

$2.39

16

Winch Hook Kit

705014949

$27.66

17

Clevis Pin

250400021

$11.83

18

Cotter Pin

250400022

$8.66

19

CABLE GUIDE - Call your local BRP dealership

705000194

$23.82

20

FEMALE CAP - Call your local BRP dealership

705001043

$9.20

Female Cap | XT & GREEN - SANDSTONE

705001094

Unavailable

FEMALE CAP - Call your local BRP dealership

705001043

$9.20

FEMALE CAP - Call your local BRP dealership

705001043

$9.20

FEMALE CAP - Call your local BRP dealership

705001043

$9.20

21

Pan Head Phillips Screw M6 X 45

250000167

Unavailable

22

Domed Nut M6

232361493

$1.77

23

Front Bumper

705001077

Unavailable

Front Bumper | XT & GREEN - SANDSTONE

705001078

Unavailable

Front Bumper

705001077

Unavailable

Front Bumper

705001077

Unavailable

Front Bumper

705001077

Unavailable

24

Hex. Flange Screw M8 X 40, Scotch Grip

207584044

$1.07

25

Carriage Bolt M8 X 70

207787044

$1.11

26

Hex. Flange Screw M8 x 60

207686044

$2.56

27

Hex. Flange Elastic Nut M8

233281414

$1.14

28

Hex. Flange Screw M8 X 25

207682544

$0.90

29

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.39

30

Hex. Flange Screw M8 X 20

207682044

$0.92

31

REAR BUMPER - Call your local BRP dealership

705001079

$359.20

Rear Bumper | XT & GREEN - SANDSTONE OUTLANDER XT 4 x 4.

705001080

Unavailable

REAR BUMPER - Call your local BRP dealership

705001079

$359.20

REAR BUMPER - Call your local BRP dealership

705001079

$359.20

REAR BUMPER - Call your local BRP dealership

705001079

$359.20

32

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.39

33

Rear Lower Bumper

705001081

Unavailable

Rear Lower Bumper | XT & GREEN - SANDSTONE OUTLANDER XT 4 x 4.

705001082

Unavailable

Rear Lower Bumper

705001081

Unavailable

Rear Lower Bumper

705001081

Unavailable

Rear Lower Bumper

705001081

Unavailable

34

Hex. Flange Screw M8 X 16, Scotch Grip

207581646

$1.74

35

Hex. Flange Screw M10 X 25

207602544

$1.33

36

Hex. Flange Elastic Nut M10

233201436

$1.74

37

Flat Washer M10 | 4X4

250200014

$1.17

38

ATTACHMENT PLATE - Call your local BRP dealership

705001075

Unavailable

39

MALE CAP - Call your local BRP dealership

705001042

$9.20

Male Cap | XT & GREEN - SANDSTONE OUTLANDER XT 4 x 4.

705001095

Unavailable

MALE CAP - Call your local BRP dealership

705001042

$9.20

MALE CAP - Call your local BRP dealership

705001042

$9.20

MALE CAP - Call your local BRP dealership

705001042

$9.20
