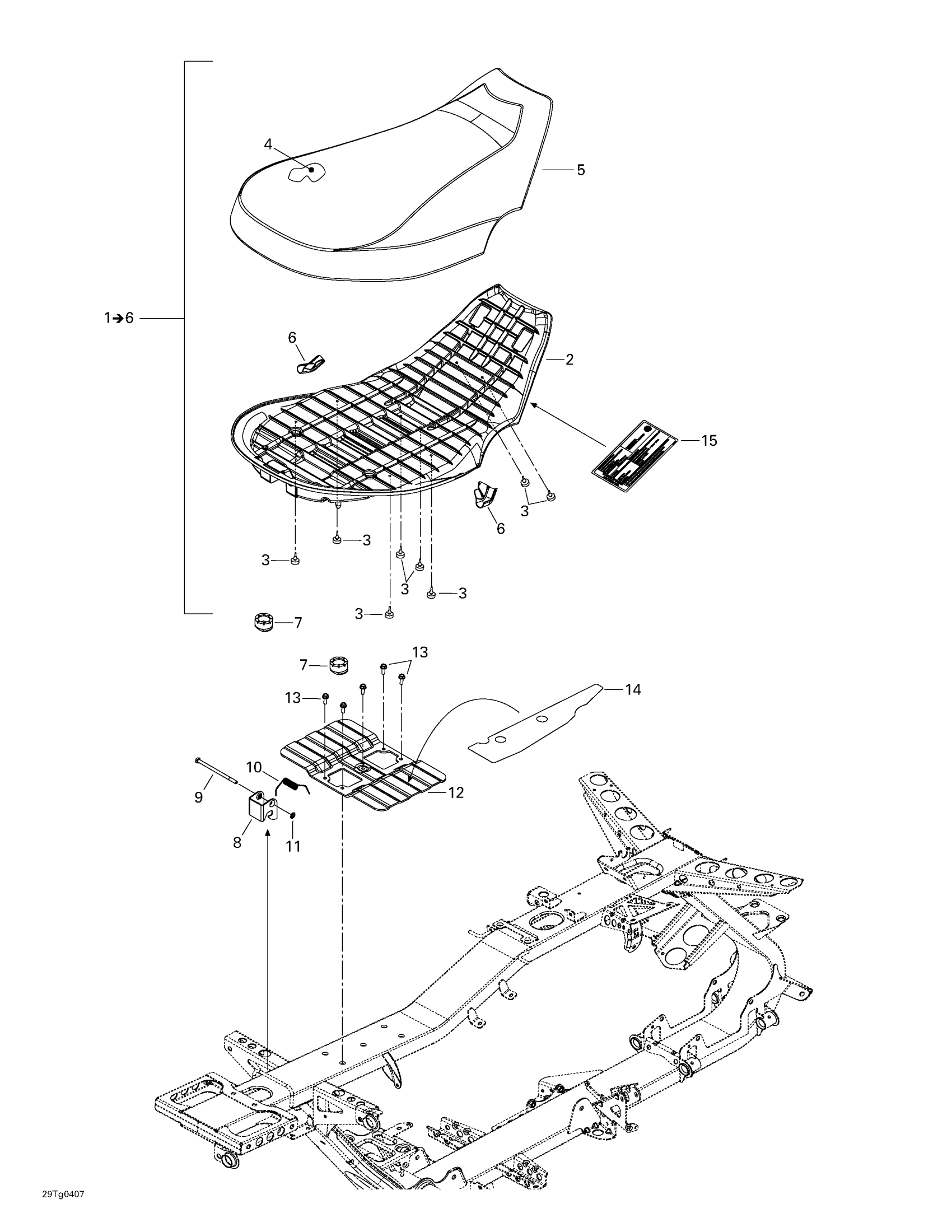

Can-Am Outlander 400 XT 4 X 4, 2004 Seat Diagram

#

Description
Price

1

Siege Assemblee*Seat Assembly | Includes 1 to 6

708001506

$413.40

2

Not Available As Spare Part - Friction Washer

Unavailable

3

Rubber Stopper

708000759

$4.15

4

Not Available As Spare Part - Friction Washer

Unavailable

5

Seat Cover

708000142

Unavailable

6

Seat Corner

708000199

Unavailable

7

Bumper Rubber

708000760

$8.84

8

Latch, Black

708000144

$10.76

9

HEX. SCREW M6 X 110 - Call your local BRP dealership

230061060

Unavailable

10

Spring

708000369

$8.34

11

Push Nut

732610072

$1.97

12

Seat Reinforcement

708000629

$30.57

13

Hex. Forming Screw M6 X 10

210261050

$1.63

14

REFLECTING SHEET - Call your local BRP dealership

708000198

Unavailable

15

Emission Label | 400 H.O

704900661

Unavailable

Emission Label | 330 H.O STD 2 x 4, STD 4 x 4

704900714

Unavailable
