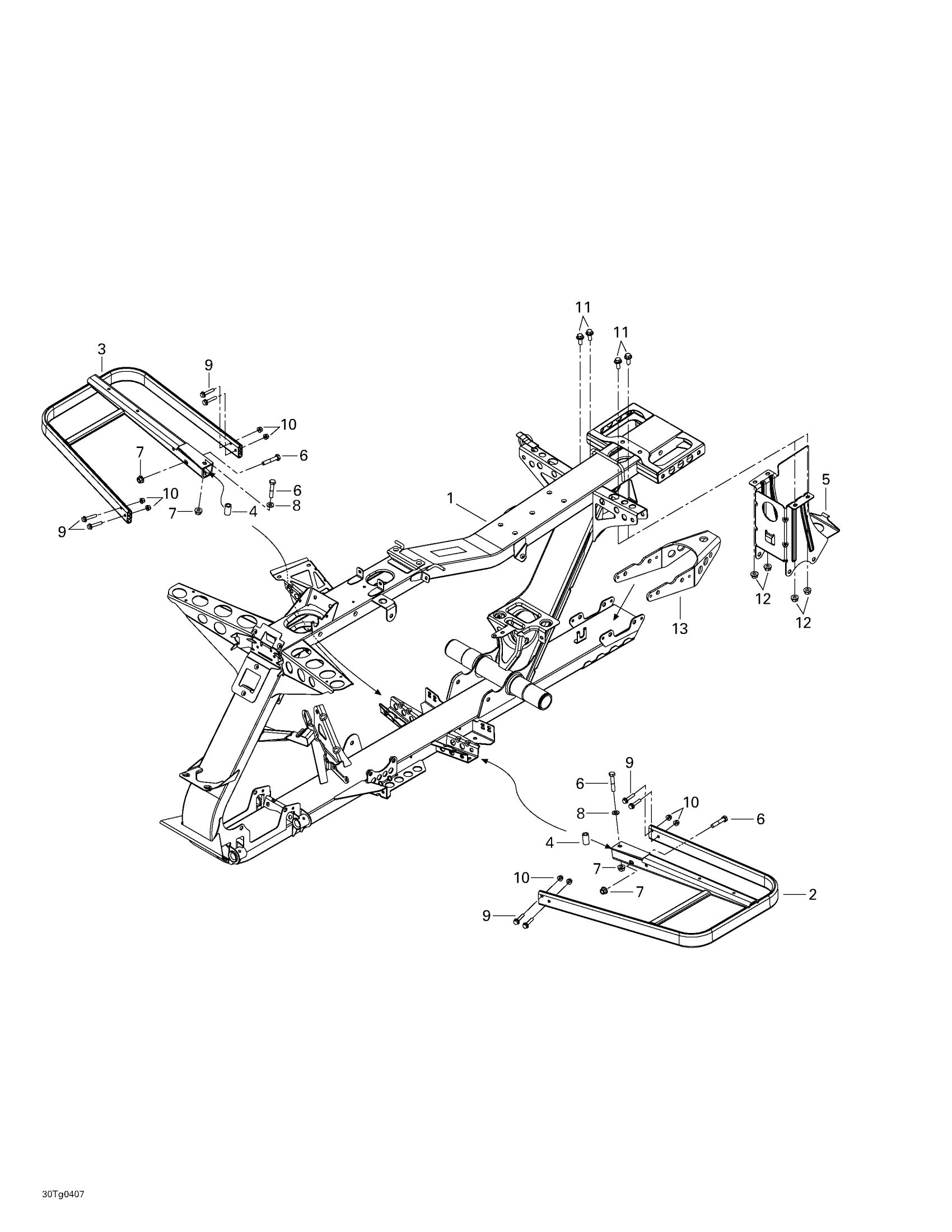

Can-Am Outlander 400 XT 4 X 4, 2004 Frame Diagram

#

Description
Price

1

Frame

705200778

Unavailable

2

LH Footrest

705200526

Unavailable

3

RH Footrest

705200529

Unavailable

4

Footrest Bushing

705200645

Unavailable

5

Battery Support

705200814

Unavailable

6

Hex. Flange Screw M8 X 50

207685044

$1.39

7

Hex. Flange Nut M8

233081416

$1.63

8

Flat Washer 8 mm

234082410

$1.11

9

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$1.74

10

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

11

Hex. Flange Screw M8 X 20

207682046

$1.82

12

Hex. Flange Elastic Nut M8

233281414

$1.14

13

Trailer Hook

705200670

Unavailable
