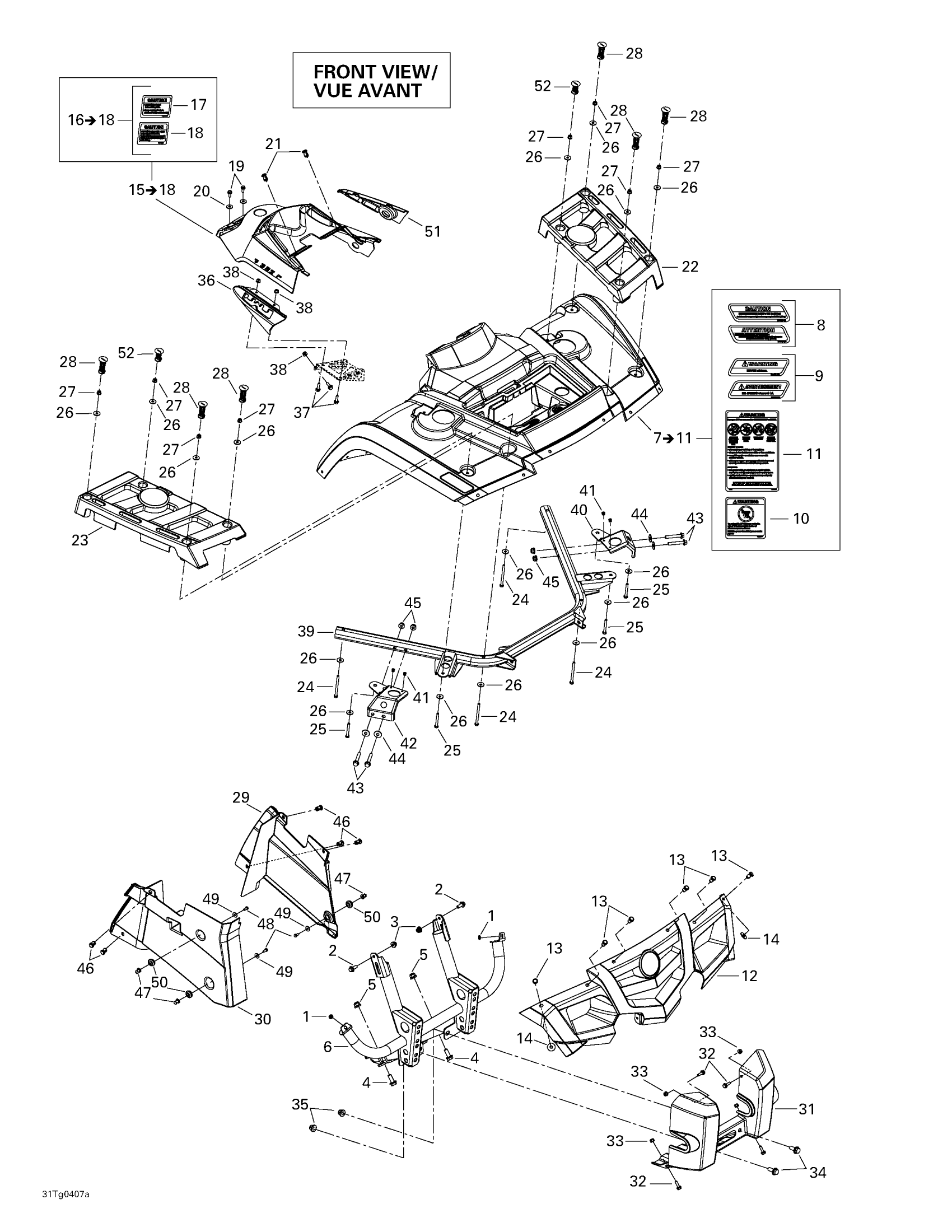

Can-Am Outlander 400 XT 4 X 4, 2004 Body And Accessories, Front View Diagram

#

Description
Price

1

Push Nut

732610072

$1.72

2

Hex. Flange Screw M8 X 20

207682044

$0.92

3

Hex. Flange Elastic Nut M8

233281414

$1.14

4

Hex. Flange Screw M10 X 25

207602544

$1.33

5

Hex. Flange Elastic Nut M10

233201414

$1.26

6

BUMPER F KIT - Call your local BRP dealership

715900097

$176.12

BUMPER F KIT - Call your local BRP dealership

715900097

$176.12

7

RED FRONT FENDER KIT - Call your local BRP dealership

715002318

$359.97

Front Fender | GREEN

703500271

$384.58

YELLOW FRONT FENDER KIT - Call your local BRP dealership

715002317

$359.97

Front Fender

703500327

Unavailable

Front Fender | GREEN - SANDSTONE XT 4 x 4

703500326

Unavailable

8

Warning Decal,, Do Not Sit | English Version

704900483

Unavailable

9

Warning Decal, Load | English Version

704901089

Unavailable

10

Warning Decal, Under 16 Years Old

704900011

Unavailable

Warning Decal, Under 16 Years Old

704900011

Unavailable

11

Warning Decal, Death And Injuries | English version

704900001

Unavailable

WARNING DECAL, DEATH AND INJURIES - Call your local BRP dealership

704901878

Unavailable

12

Front Fascia, Viper Red | Viper Red

705000432

Unavailable

FRONT FASCIA, LAURENTIAN GREEN - Call your local BRP dealership | Laurentian Green

705000734

Unavailable

Front Fascia, Yellow | Yellow

705000851

Unavailable

Front Fascia, Camo | Camo

705000853

Unavailable

Front Fascia | GREEN - SANDSTONE XT 4 x 4

705001171

Unavailable

13

Tuflok Plastic Rivet

293150230

$1.21

14

Flat Washer 8 mm

234082410

$1.11

15

Console, Viper Red | Includes 4 to 7 / Viper Red

703500266

$59.97

Console, Laurentian Green | Includes 4 to 7 / Laurentian Green

703500267

$36.89

Console, Yellow | Includes 4 to 7 / Yellow

703500330

$59.97

Dash-board, Camo | Includes 4 to 7 / Camo

703500332

Unavailable

Dash-Board | GREEN - SANDSTONE XT 4 x 4

703500331

Unavailable

16

Caution Decal, Lever And 4wd Switch | English Version

704900434

Unavailable

17

Caution Decal, Shifting Lever | French Version

704900475

Unavailable

18

CAUTION DECAL, 4WD SWITCH - Call your local BRP dealership | French Version

704900476

Unavailable

19

Hex. Flange Screw M6 X 16

210261650

$1.22

20

Flat Washer

250200082

$0.35

21

Tuflok Plastic Rivet

293150230

$1.21

22

LH FRONT LUGGAGE RACK - Call your local BRP dealership

705000436

$36.12

23

RH FRONT LUGGAGE RACK - Call your local BRP dealership

705000437

Unavailable

24

Hex. Screw M6 X 80

207168044

Unavailable

25

HEX. SCREW M6 X 50 - Call your local BRP dealership

207165044

Unavailable

26

Flat Washer

224061201

$1.11

27

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

28

Protection Plug

705000656

Unavailable

29

LH Inner Fender

705000652

$36.89

30

INNER FENDER - Call your local BRP dealership

705002640

Unavailable

31

GUARD PLATE - Call your local BRP dealership | STD

705003495

Unavailable

32

Hex. Flange Screw M6 X 20

207662044

$1.66

33

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

34

Hex. Flange Screw M10 X 25

207602544

$1.33

35

Hex. Flange Elastic Nut M10

233201414

$1.26

36

LEVER INDICATOR - Call your local BRP dealership

705001529

$14.65

37

Hex. Flange Screw M6 X 20

207662044

$1.66

38

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

39

front support

705000895

Unavailable

40

LH ANCHOR PLATE - Call your local BRP dealership

705000692

$13.83

41

Pop Rivet 3/16" | DS 650 X

390402000

$0.28

42

RH Anchor Plate

705002997

$16.89

43

Hex. Flange Screw M8 X 45

207684544

$3.68

44

Flat Washer 8 mm

234082410

$1.11

45

Hex. Elastic Stop Nut M8

232581414

$0.47

46

Tuflok Plastic Rivet

293150230

$1.21

47

Knob

517303439

$3.73

48

Hex. Screw M5 X 12

207151244

$0.74

49

Washer | DS 650 X

391301600

$0.48

50

Grommet

709000582

$4.38

51

Valve Support

705000654

Unavailable

52

PROTECTION PLUG - Call your local BRP dealership

705000655

$5.35
