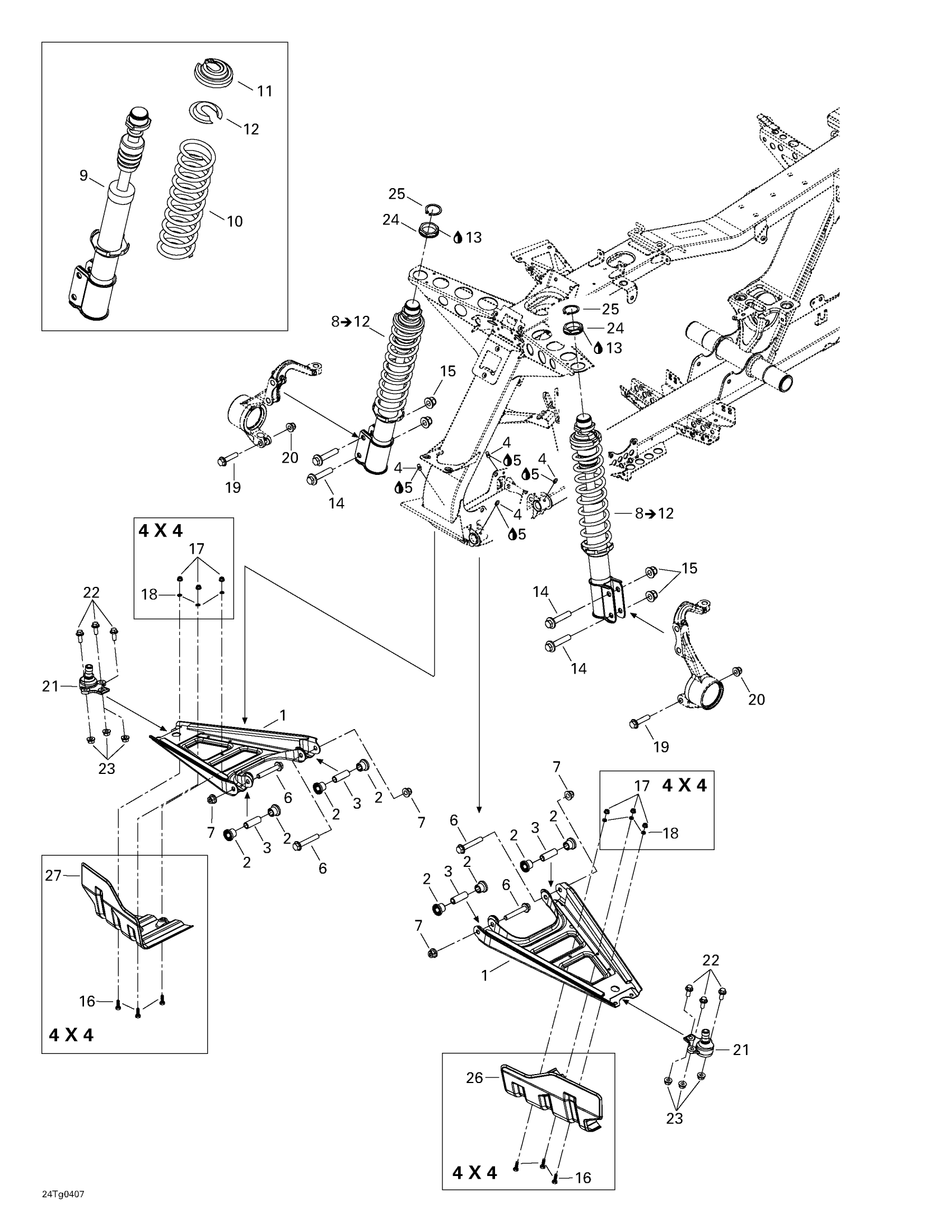

Can-Am Outlander 400 XT 4 X 4, 2004 Front Suspension Diagram

#

Description
Price

1

Suspension Arm

706205905

$147.73

2

Bushing

706200181

$2.45

3

Sleeve

706201587

$3.36

4

Grease Fitting

408200700

$3.21

5

Synthetic Grease, 400 G

293550010

Unavailable

6

Hex. Flange Screw M10 X 65

207606536

$4.15

7

Hex. Flange Elastic Nut M10

233201436

$2.00

8

Not Available As Spare Part - Friction Washer

Unavailable

Not Available As Spare Part - Friction Washer

Unavailable

9

Front Shock

706200658

$148.48

10

SPRING_COMPRESSION B-211 PAINTED - Call your local BRP dealership | Outlander STD & XT

706200216

Unavailable

Front Spring | Outlander STD & XT (Camo)

706200355

Unavailable

11

STOPPER SPRING - Call your local BRP dealership

706200882

Unavailable

12

Cap

706200793

$4.28

13

Loctite 243, 10 ml

293800060

$21.49

14

Hex. Flange Screw M12 X 60

207626046

$6.99

15

Hex. Flange Elastic Nut M12

233221414

$5.85

16

Hex. Screw M5 X 16 | 4X4

207151644

$0.85

17

Hex. Flange Elastic Nut M5

233251414

$1.91

18

FLAT WASHER - Call your local BRP dealership | 4X4

250200081

Unavailable

19

HEX. FLANGED SCREW M10 X 45 - Call your local BRP dealership

207604544

Unavailable

20

Hex. Flange Elastic Nut M10

233201414

$1.45

21

JOINT ATTACH - Call your local BRP dealership

706200231

Unavailable

22

Hex. Flange Screw M8 X 25

207682544

$1.03

23

Hex. Flange Elastic Nut M8

233281414

$1.31

24

NUT - Call your local BRP dealership

706200443

Unavailable

25

Circlip 32 mm

293370009

$1.33

26

LH PROTECTOR - Call your local BRP dealership | 4X4

706200213

Unavailable

27

RH PROTECTOR - Call your local BRP dealership | 4X4

706200214

$9.24
