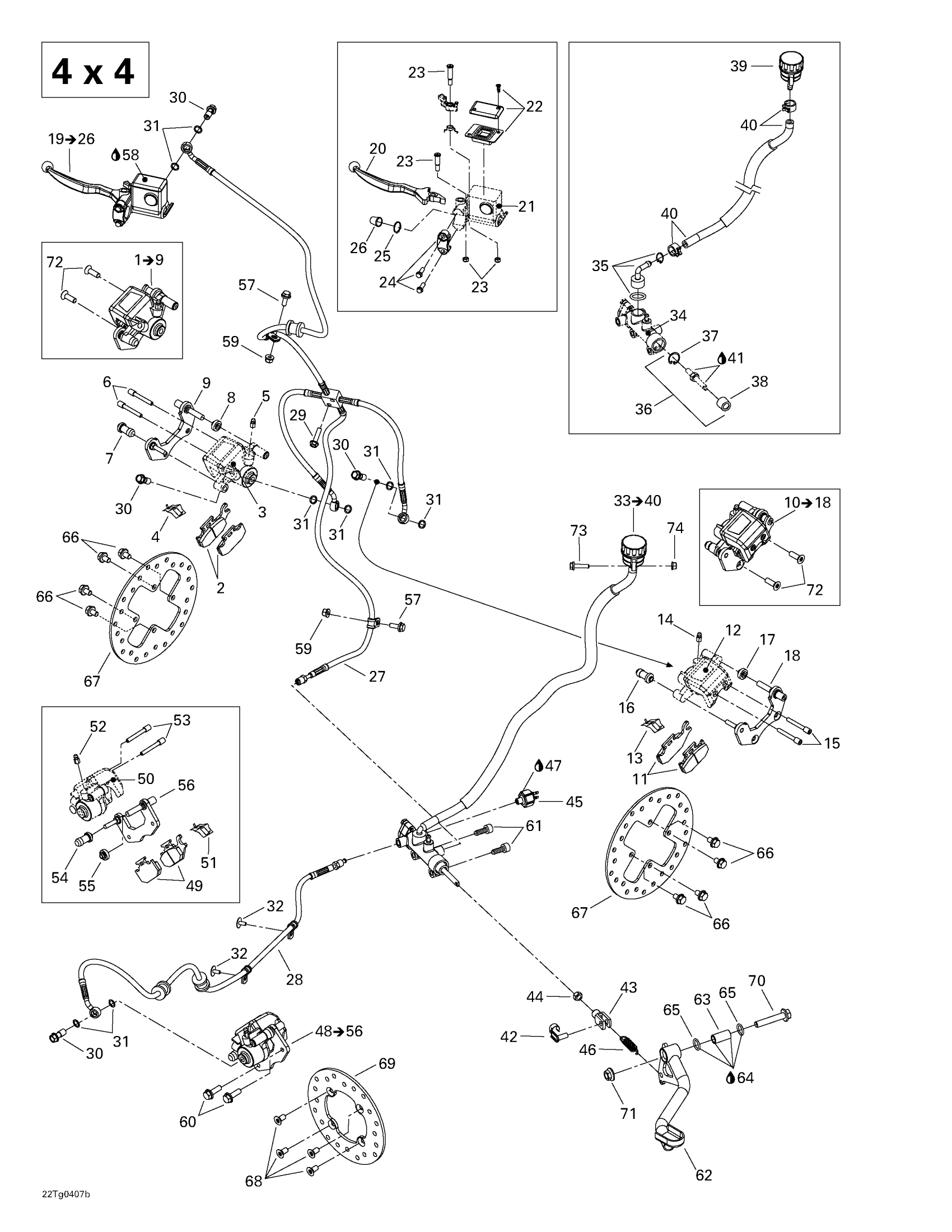

Can-Am Outlander 400 XT 4 X 4, 2004 Hydraulic Brake (4 X 4) Diagram

#

Description
Price

1

LH Caliper | Includes 10 to 18

705600576

$204.45

2

Brake Pad Kit

705600350

$48.48

3

Piston Set

705600078

$35.79

4

Spring

705600079

$13.51

5

Bleeding Screw

705600080

$14.49

6

Pin Set (2)

705600081

$18.63

7

Compression Boot

705600082

$9.30

8

Compression Boot

705600083

$9.30

9

LH Caliper Support

705600297

Unavailable

10

RH Caliper | Includes 1 to 9

705600575

Unavailable

11

Brake Pad Kit

705600349

$48.48

12

Piston Set

705600078

$35.79

13

Spring

705600079

$13.51

14

Bleeding Screw

705600080

$14.49

15

Pin Set (2)

705600081

$18.63

16

Compression Boot

705600082

$9.30

17

Compression Boot

705600083

$9.30

18

Not Available As Spare Part - Friction Washer

Unavailable

19

Front Master Cylinder | Includes 19 to 26

705600844

$202.96

20

Lever Arm

705600243

$49.22

21

PISTON KIT - Call your local BRP dealership

705600244

Unavailable

22

Cap Set

705600084

$23.10

23

Brake Lever Bolt Kit

705600246

$13.51

24

BRACKET KIT - Call your local BRP dealership

705600087

Unavailable

25

CIRCLIP - Call your local BRP dealership

705600088

Unavailable

26

COMPRESSION BOOT - Call your local BRP dealership

705600089

Unavailable

27

Front Hose

705600382

Unavailable

28

Rear Hose

705600373

Unavailable

29

Hex. Flange Forming Screw M6 X 25

210262550

$1.88

30

Banjo Bolt (M10 x 1.25 thread)

705600609

$0.90

31

Copper Washer

705601628

$4.21

32

Pop Rivet 3/16"

390406500

$0.81

33

Rear Master Cylinder | Includes 33 to 40

705600254

$202.21

34

Piston Set

705600255

Unavailable

35

PUSHER BRACKET, HOSE CONNECTOR - Call your local BRP dealership

705600064

Unavailable

36

Not Available As Spare Part - Friction Washer

Unavailable

37

Circlip

705600068

Unavailable

38

Compression Boot

705600090

Unavailable

39

Oil Tank, Brake Fluid Reservoir

705600182

$35.04

40

OIL HOUSING HOSE - Call your local BRP dealership

705600262

Unavailable

41

Not Available As Spare Part - Friction Washer

Unavailable

42

Pin Kit

219702305

$30.57

43

Yoke

705600100

Unavailable

44

Hex. Nut M8

232081414

$0.69

45

Interrupteur *Brake Switch

710001345

Unavailable

46

BREAK PEDAL SPRING - Call your local BRP dealership

705600098

Unavailable

47

Was 293800013 Loctite 56765

219704454

$63.40

48

REAR CALIPER - Call your local BRP dealership | Includes 54 - 62.

705600263

Unavailable

49

Brake Pad Kit

705600014

$48.48

50

Piston Set

705600295

Unavailable

51

Spring

705600079

$13.51

52

Bleeding Screw

705600080

$14.49

53

Pin Set (2)

705600081

$18.63

54

Compression Boot

705600082

$9.30

55

Compression Boot

705600083

$9.30

56

LH CALIPER SUPPORT - Call your local BRP dealership

705600298

Unavailable

57

Hex. Flange Screw M6 X 16

207661644

$0.70

58

BRAKE FLUID, SRF, DOT 4 - Call your local BRP dealership

293600063

Unavailable

HYDRAULIC OIL - Call your local BRP dealership

293600131

Unavailable

59

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

60

Hex. Flange Screw M8 X 25, Scotch Grip

207582544

$1.63

61

Socket Head Screw M8 X 20, Scotch Grip

250000136

$3.51

62

BRAKE PEDAL - Call your local BRP dealership

705600265

Unavailable

63

SPACER - Call your local BRP dealership

705600283

Unavailable

64

Synthetic Grease, 400 G

293550010

Unavailable

65

O-RING - Call your local BRP dealership

293300053

Unavailable

66

Hex. Flange Screw M8 X 12, Scotch Grip

207581244

$1.06

67

Disk Brake

705600603

$55.19

68

Torx Screw M8 X 16, Scotch Grip

235381646

$2.40

69

Disk Brake

705600604

$55.19

70

Hex. Flange Screw M10 X 55

207605544

$3.19

71

Hex. Flange Elastic Nut M10

233201414

$1.45

72

Torx Screw M8 X 25, Scotch Grip

250000143

$2.03

73

Hex. Flange Screw M6 X 25

207662544

$0.61

74

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27
