Partiron

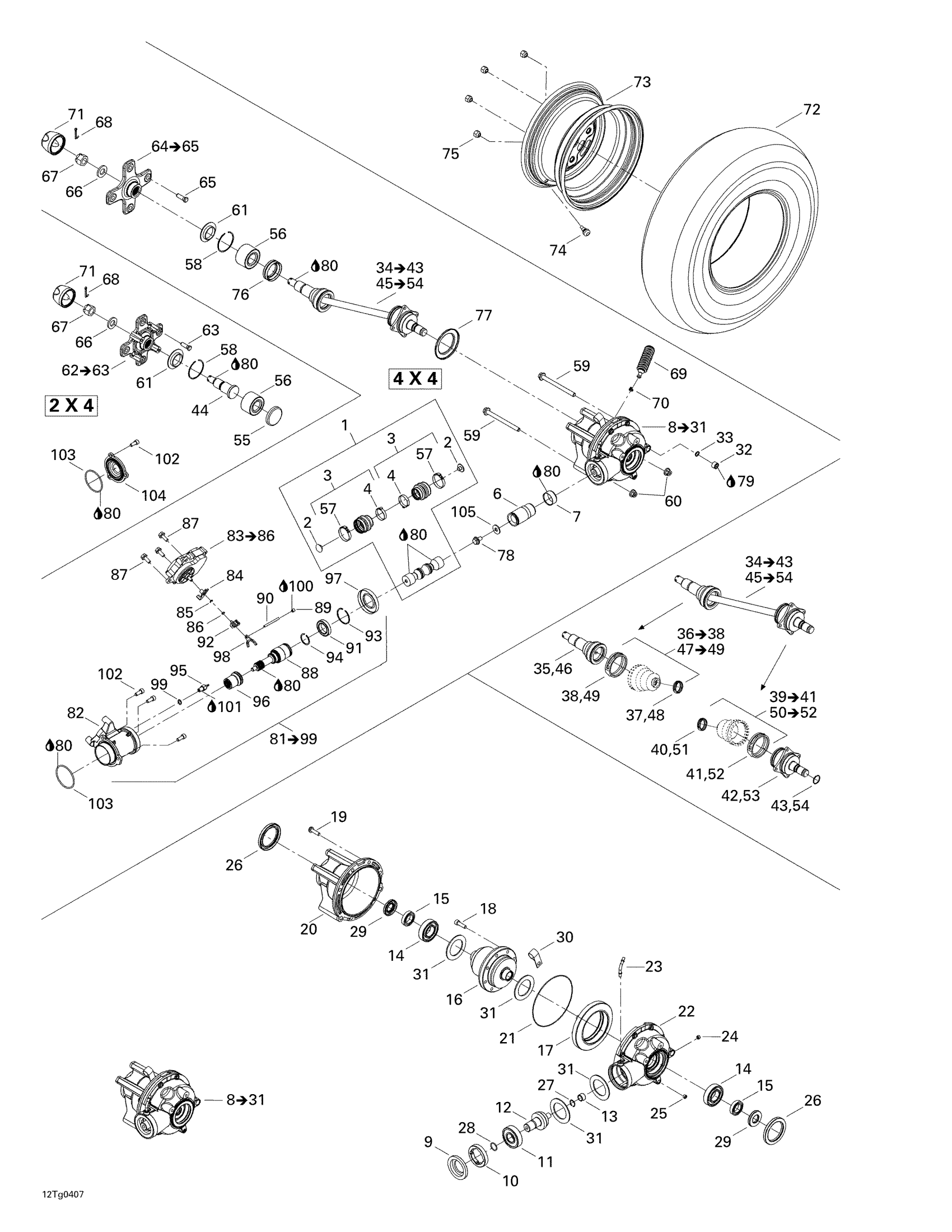

Can-Am Outlander 400 XT 4 X 4, 2004 Drive System, Front Diagram

#

Description
Price

1

Front Drive Axle Ass'y | 4X4 / Includes 1 to 5

705400912

$175.35

2

Not Available As Spare Part - Friction Washer

Unavailable

3

Rubber Boot Kit | 4X4 / Includes 3 to 5

703500255

Unavailable

4

Collar | 4X4

705400148

Unavailable

5

Not Available As Spare Part - Friction Washer

Unavailable

6

Front Bushing Shaft Kit | 4X4

703500678

$104.58

7

Wear Ring | 4X4

705400036

$25.35

8

Not Available As Spare Part - Friction Washer

Unavailable

9

Oil Seal | 4X4

705401481

$18.43

10

Nut | 4X4

705401603

$36.89

11

Ball Bearing | 4X4

705500260

$30.74

12

GEAR, 10 TEETH - Call your local BRP dealership | 4X4

705500268

Unavailable

13

Needle Bearing | 4X4

705500261

Unavailable

14

Ball Bearing | 4X4

705401606

$49.20

15

Ball Bearing | 4X4

293350044

$30.74

16

Ens Differentiel*Differential Kit | 4X4

703500871

$710.74

17

GEAR, 36 TEETH - Call your local BRP dealership | 4X4

705400192

$249.20

18

RING GEAR SCREW - Call your local BRP dealership | 4X4

705400101

$8.43

19

Screw | 4X4

705401601

$9.29

20

Front Cover | 4X4

705400133

Unavailable

21

Seal | 4X4

705500265

$16.12

22

Front Cover | 4X4

705400261

Unavailable

23

VENT VALVE - Call your local BRP dealership | 4X4

705500893

$14.37

24

Protector Plug

705500246

Unavailable

25

Drain Plug | 4X4

705500894

$11.06

26

Oil Seal | 4X4

293250137

Unavailable

27

RETAINING RING - Call your local BRP dealership | 4X4

705500269

$8.43

28

O-Ring | 4X4

705500267

$6.25

29

Gasket | 4X4

705401618

$17.66

30

CLAMP - Call your local BRP dealership

705600311

$5.68

31

Shim | 4X4

705401604

$55.35

32

Fill Level Plug | 4X4

705500504

$7.61

33

Copper Washer | 4X4

705500506

$0.36

34

RH CV Joint | Includes 31 - 40.

705400097

Unavailable

35

CV JOINT - Call your local BRP dealership | 4X4

705400154

$147.66

36

Boot Wheel Kit | 4X4 / Includes 36 to 38

705400127

$41.51

37

CLAMP - Call your local BRP dealership | 4X4

705400064

$5.35

38

Clamp | 4X4

705400180

Unavailable

39

Boot Differential Kit | 4X4 / Includes 39 to 41

705400126

$41.51

40

CLAMP - Call your local BRP dealership | 4X4

705400064

$5.35

41

Clamp | 4X4

705400181

Unavailable

42

RH PLUNGING JOINT - Call your local BRP dealership | 4X4

705400156

$209.97

43

CIRCLIP - Call your local BRP dealership | 4X4

705400042

Unavailable

44

Shaft Stub | STD 2 x 4

705400188

Unavailable

45

LH CV Joint | Includes 41 - 50.

705400096

Unavailable

46

CV JOINT - Call your local BRP dealership | 4X4

705400154

$147.66

47

Boot Wheel Kit | 4X4 / Includes 36 to 38

705400127

$41.51

48

CLAMP - Call your local BRP dealership | 4X4

705400064

$5.35

49

Clamp | 4X4

705400180

Unavailable

50

Boot Differential Kit | 4X4 / Includes 39 to 41

705400126

$41.51

51

CLAMP - Call your local BRP dealership | 4X4

705400064

$5.35

52

Clamp | 4X4

705400181

Unavailable

53

PLUNGING JOINT - Call your local BRP dealership | 4X4

705400155

$218.43

54

CIRCLIP - Call your local BRP dealership | 4X4

705400042

Unavailable

55

COVER - Call your local BRP dealership | 2X4

705400187

$3.82

56

Ball Bearing

293350150

$52.99

57

Oetiker Gear Clamp 44.0MM | 4X4

293650138

$8.57

58

Circlip

293370019

$4.98

59

Hex. Flange Screw M10 X 125

230602546

$6.08

60

Hex. Flange Elastic Nut M10

233201436

$1.74

61

EXTERNAL WEAR SLEEVE - Call your local BRP dealership | 2X4

705501122

Unavailable

62

WHEEL HUB ASS'Y - Call your local BRP dealership | 2X4 / Includes 63 to 64

705401040

$80.74

63

Wheel Stud M10 X 1.25 | 2X4

250300055

$3.28

64

Wheel Hub Ass'y | Includes 57 - 58.

705500361

Unavailable

65

Wheel Stud M10 X 1.25 | 2X4

250300055

$3.28

66

WASHER - Call your local BRP dealership

250200019

$2.02

67

Hex. Flange Castellated Nut M18

232291413

$2.82

68

Cotter Pin

250400036

$1.74

69

Rubber Bellow | 4X4

705400552

$6.02

70

Tie Wrap 94 mm | 4X4

293750001

$0.83

71

WHEEL CAP - Call your local BRP dealership

705400012

Unavailable

72

Front Tire | Outlander XT

705400213

Unavailable

73

FRONT RIM - Call your local BRP dealership | Outlander STD & XT (Camo)

705400243

Unavailable

Front Rim | CHROME, STD 4 x 4, XT 4 x 4

705400229

Unavailable

Front Rim

705400160

Unavailable

74

Rim Valve With Cap

705400193

$6.69

75

Steel Wheel Nut

250100042

$2.48

76

Oil Seal | 4X4

293250090

$23.05

77

WEAR SLEEVE - Call your local BRP dealership | 4X4

705400179

$6.12

78

Flange Screw M10 X 16, Scotch Grip | 4X4

250000060

$3.60

79

JET PUMP OIL SYNTHETIC 6 FL OZ / 178 ML | 4X4

779221

$13.62

80

Synthetic Grease, 400 G

293550010

Unavailable

81

Not Available As Spare Part - Friction Washer

Unavailable

82

HOUSING - Call your local BRP dealership | 4X4

705400169

Unavailable

83

Actuator Kit | 4X4 / Includes 85 to 88

703500506

$406.12

84

Fork | 4X4

705400274

$16.12

85

Circlip | 4X4

293370042

$3.11

86

O-Ring | 4X4

293300108

Unavailable

87

Hex. Flange Screw M8 X 20, Scotch Grip | 4X4

250000137

$3.23

88

UNION SHAFT - Call your local BRP dealership | 4X4

705400917

$97.99

89

Pressure Screw M8 X 8 | 4X4

206580890

$1.65

90

Dowell Pin | 4X4

250400025

$7.37

91

Ball Bearing | 4X4

705400249

$24.58

92

Slider | 4X4

705402139

$46.12

93

Circlip | 4X4

293370029

$5.52

94

Circlip | 4X4

293370030

$2.75

95

SWITCH - Call your local BRP dealership | 4X4

710000324

Unavailable

96

Coupling Sleeve | 4X4

705400389

$32.28

97

Oil Seal | 4X4

293250138

$23.05

98

Shifter Lever Plate | 4X4

705401553

$16.89

99

Copper Washer

705601628

$4.34

100

Loctite 243, 10 ml

293800060

$20.77

101

Loctite 243, 10 ml

293800060

$20.77

102

Socket Head Screw M8 X 20, Scotch Grip

250000136

$3.06

103

O-Ring

293300091

$7.37

104

COVER - Call your local BRP dealership | 2X4

705400186

$19.20

105

Flat Washer M10 | 4X4

250200014

$1.17
