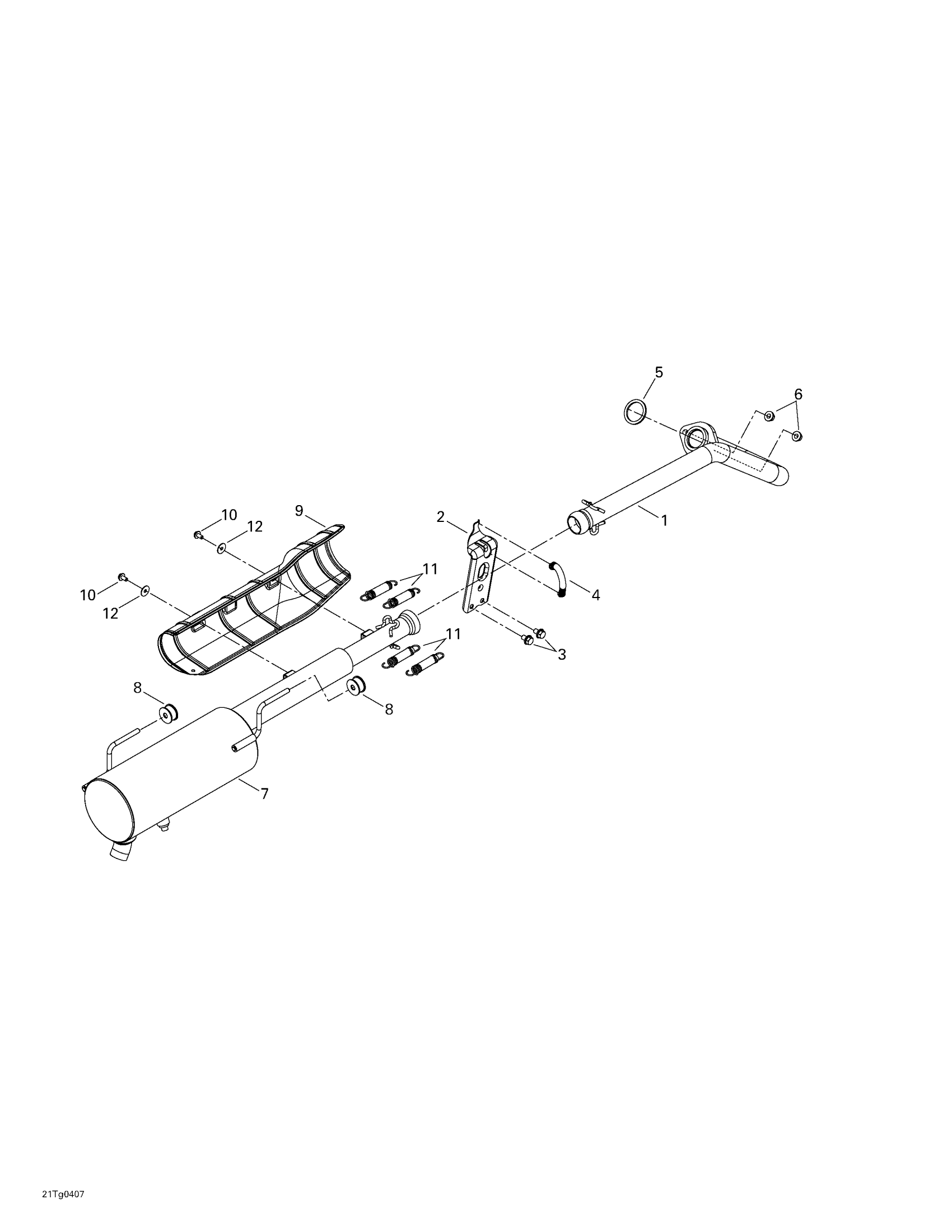

Can-Am Outlander 400 XT 4 X 4, 2004 Exhaust System Diagram

#

Description

Price

1

TUNNED PIPE ASS'Y - Call your local BRP dealership

707600181

Unavailable

2

Muffler Support

707600194

Unavailable

3

Hex. Flange Screw M8 X 12, Scotch Grip

207581244

$1.06

4

SPRING - Call your local BRP dealership

707600207

Unavailable

5

Gasket

707600317

$10.21

6

Hex. Flange Nut M8

233081416

$1.87

7

Muffler

707600182

Unavailable

8

Anti-Vibration Rubber

707600702

$8.09

9

HEAT SHIELD - Call your local BRP dealership

707600224

Unavailable

10

HEX. FLANGED SCREW M6 X 12 - Call your local BRP dealership

250000073

Unavailable

11

Spring

415107100

$6.01

12

Flat Washer

250200082

$0.40
