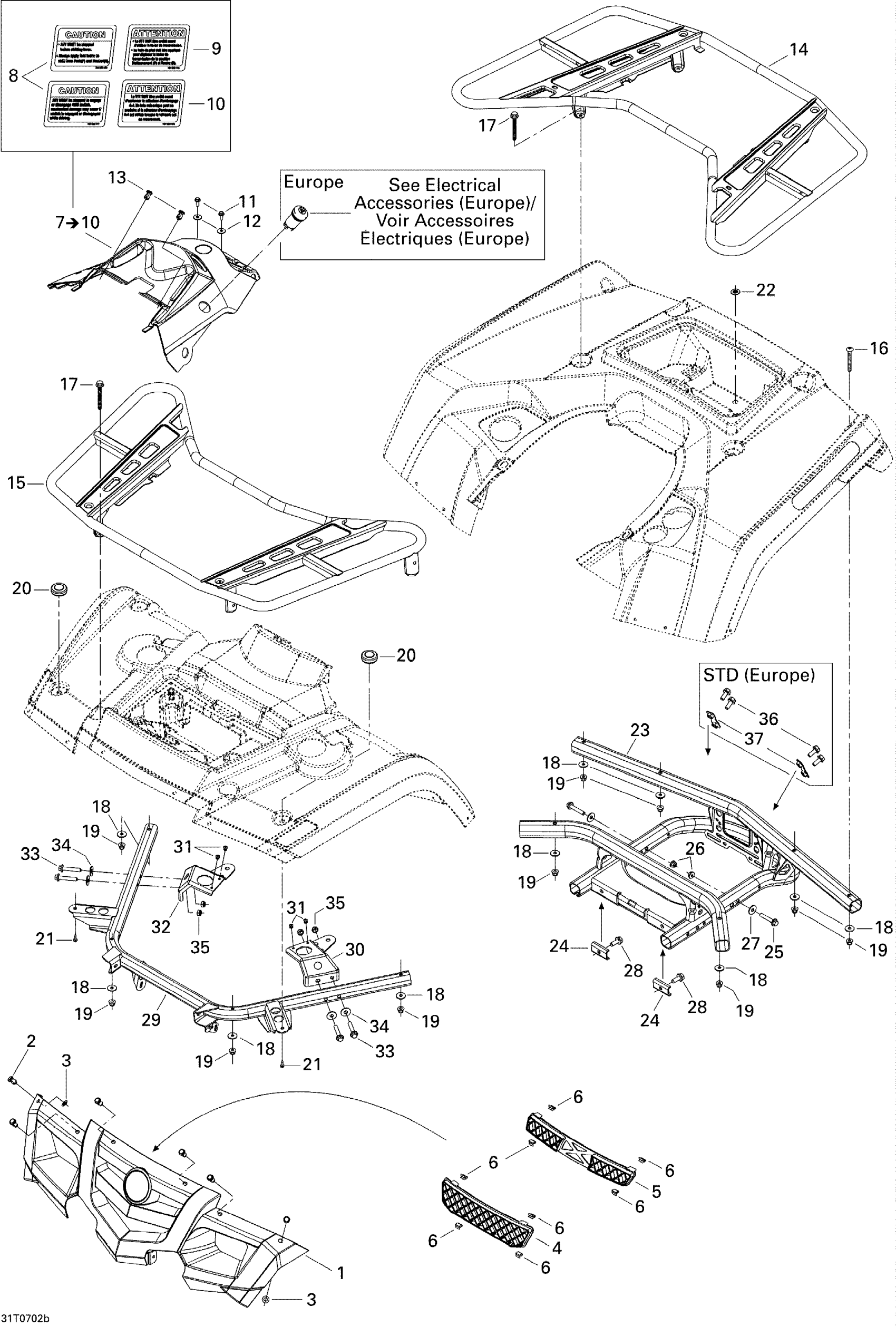

Can-Am Outlander 400 STD 4 X 4, 2007 Body And Accessories 2, STD Diagram

#

Description
Price

1

FRONT FASCIA, RED - Call your local BRP dealership | Viper Red

705001313

$63.05

1

FRONT FASCIA, YELLOW - Call your local BRP dealership | Yellow

705001991

$48.43

1

FRONT FASCIA, GREEN - Call your local BRP dealership | Laurentian Green

705001992

$46.89

1

Front Fascia, Camo | Camo, B-005

705002012

Unavailable

2

Tuflok Plastic Rivet

293150230

$1.21

3

Washer

506151252

$3.11

4

LOWER GRILL - Call your local BRP dealership

705001679

Unavailable

5

UPPER GRILL - Call your local BRP dealership

705001901

$9.20

6

Clip | Europe Models

517306751

$1.97

7

Dash-board, Camo | Includes 7 to 10, Camo

703500669

Unavailable

7

DASH-BOARD, RED - Call your local BRP dealership | Includes 7 to 10, Viper Red

703500668

$59.97

7

Dash-board, Green | Includes 7 to 10, Laurentian Green

703500674

$36.89

7

DASH-BOARD, YELLOW - Call your local BRP dealership | Includes 7 to 10, Yellow

703500670

Unavailable

7

Dash-board, Red | Includes 7 to 10, Viper Red (Europe)

703500671

Unavailable

7

DASH-BOARD, GREEN - Call your local BRP dealership | Includes 7 to 10, Laurentian Green (Europe)

703500672

Unavailable

7

DASH-BOARD, YELLOW - Call your local BRP dealership | Includes 7 to 10, Yellow (Europe)

703500673

Unavailable

8

Caution Decal, Lever And 4wd Switch | English Version

704900434

Unavailable

9

Caution Decal, Shifting Lever | French Version

704900475

Unavailable

10

CAUTION DECAL, 4WD SWITCH - Call your local BRP dealership | French Version

704900476

Unavailable

11

Hex. Flange Screw M6 X 16

210261650

$1.22

12

Flat Washer

250200082

$0.35

13

Tuflok Plastic Rivet

293150230

$1.21

14

Rear Luggage Rack

705002617

$267.66

15

Front Luggage Rack

705002616

$267.66

16

Torx Truss Screw M6 X 50

250000749

$3.11

17

Hex. Flange Screw M6 X 50

207665044

$3.38

18

Flat Washer

224061201

$1.11

19

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

20

RUBBER CAP - Call your local BRP dealership

705002042

$9.74

21

HEX. SCREW 12 X 3/4 - Call your local BRP dealership

365901100

$1.45

22

CAP - Call your local BRP dealership

414859400

$2.78

23

Rear Support

705003656

$267.66

23

Rear Support | Camo, B-005

705002004

Unavailable

24

U Reinforcement

705003647

$6.92

25

Hex. Flange Screw M8 X 50

207685044

$1.39

26

Hex. Flange Elastic Nut M8

233281414

$1.14

27

Flat Washer 8 mm

234082410

$1.11

28

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.39

29

FRONT SUPPORT - Call your local BRP dealership

705003655

Unavailable

30

LH ANCHOR PLATE - Call your local BRP dealership

705000692

$13.83

31

Pop Rivet 3/16"

390402300

$0.64

32

RH Anchor Plate

705002997

$16.89

33

Hex. Flange Screw M8 X 45

207684544

$3.68

34

Flat Washer 8 mm

234082410

$1.11

35

Hex. Elastic Stop Nut M8

232581414

$0.47

36

Hex Screw Washer Head M8 X 20

207582054

$2.61

37

ATTACHMENT PLATE - Call your local BRP dealership

705001075

Unavailable
