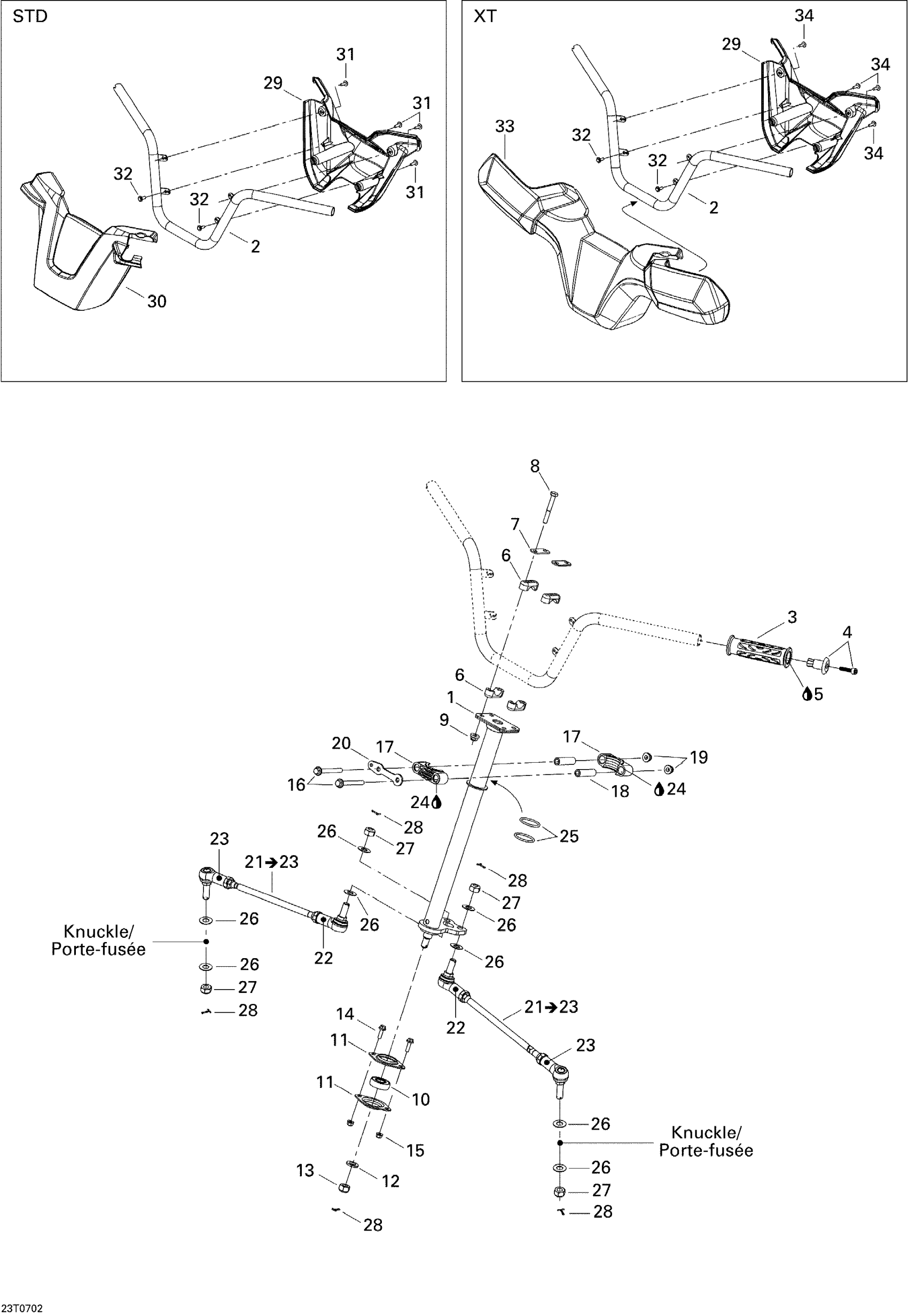

Can-Am Outlander 400 STD 4 X 4, 2007 Steering System STD Diagram

#

Description
Price

1

Main Tube

709401056

$113.40

2

Steering | STD

709401237

$58.93

3

Handle Grip

709400493

$13.82

4

End Piece

709400449

$7.57

5

Loctite 406, 7 Oz

293800100

$36.99

6

Steering Support

709400919

$20.12

7

Stiffner

709400509

$4.30

8

Hex. Screw M8 X 60

207086046

$2.30

9

Hex. Elastic Flange Nut M8

233281416

$1.25

10

Ball Bearing

709400439

$17.88

11

FLANGE, BEARING - Call your local BRP dealership

709400152

Unavailable

12

Flat Washer 12 mm

234021410

$0.66

13

Hex. Flange Elastic Nut M12

250000047

$1.56

14

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

$1.74

15

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

16

Hex. Flange Screw M8 X 70

207687044

$6.11

17

Half Bushing

709400471

$13.22

18

BUSHING - Call your local BRP dealership

709400072

Unavailable

19

Hex. Flange Elastic Nut M8

233281414

$1.14

20

STOPPER PLATE - Call your local BRP dealership

709400053

Unavailable

21

Tie Rod Ass'y | Includes 21 to 23

709400190

Unavailable

22

Ball Joint, RH Threads

709400487

$49.22

23

LH Ball Joint

709402303

$34.30

24

Synthetic Grease, 400 G

293550010

Unavailable

25

O-Ring

293300068

$5.29

26

Hardened Washer

706200281

$2.34

27

Nut M12

250100099

$1.64

28

Cotter Pin

211400013

$0.31

29

BLACK REAR STEERING COVER - Call your local BRP dealership

709400313

$21.61

30

BLACK FRONT STEERING COVER - Call your local BRP dealership | STD

709400386

Unavailable

31

Torx Screw K50 X 16

250000720

$1.39

32

Hex. Plastic Screw M4.8 X 16

243141630

$1.74

33

Not Available As Spare Parts

XXX

Unavailable

34

Not Available As Spare Parts

XXX

Unavailable
