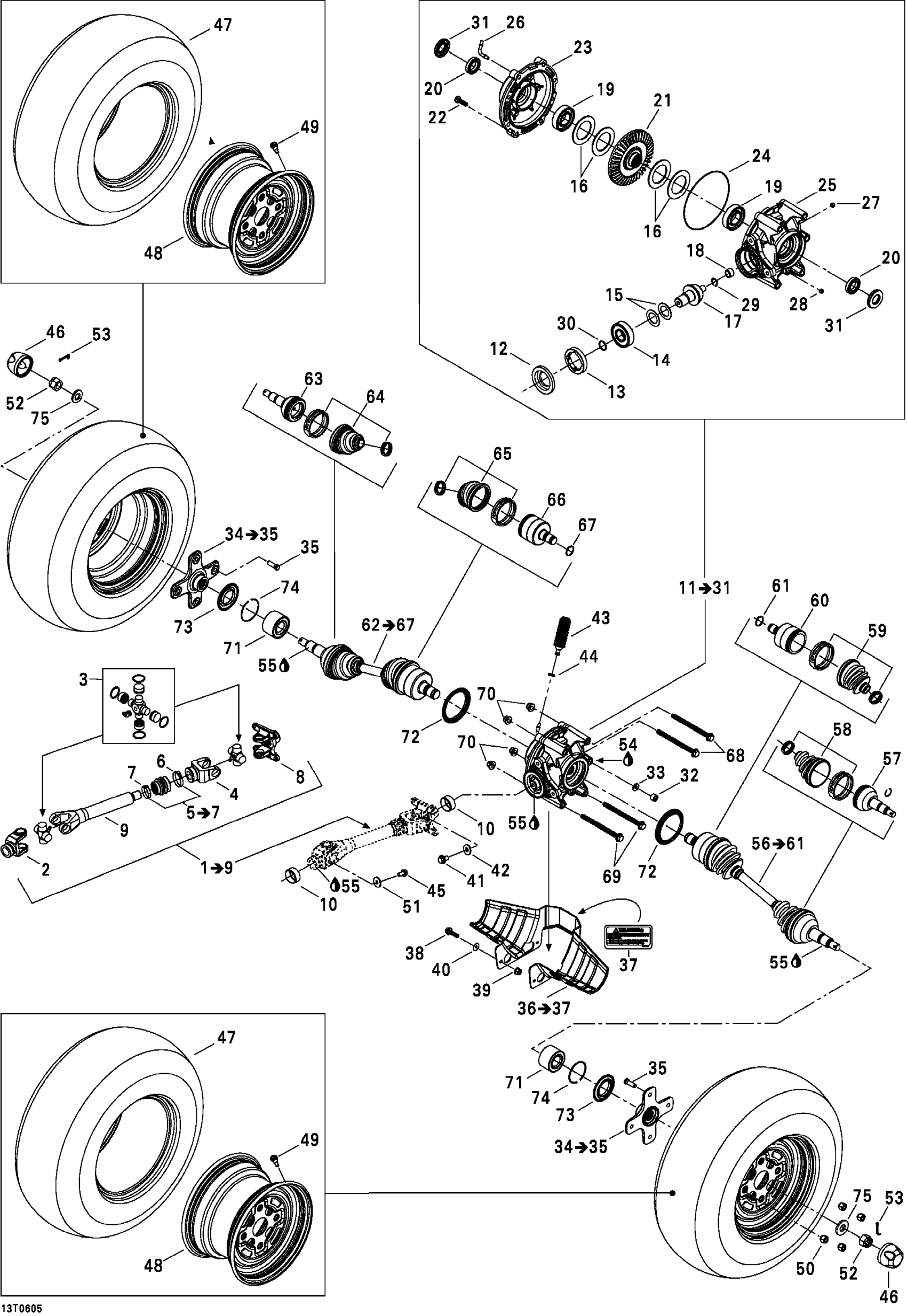

Can-Am Outlander 400 STD 4 X 4, 2006 Drive System, Rear STD Diagram

#

Description
Price

1

Rear Propeller Shaft | Includes 1 to 9

703500825

$241.01

2

Fixed Yoke Joint

715900116

$55.19

3

Ens. Croix*U-Joint Cross Kit

715900325

$65.64

4

Slip Joint

705500762

Unavailable

5

Rubber Boot Kit | 4X4 / Includes 3 to 5

703500255

Unavailable

6

Oetiker Gear Clamp 44.0MM | 4X4

293650138

$8.22

7

Collar | 4X4

705400148

Unavailable

8

DISC JOINT - Call your local BRP dealership

705500351

Unavailable

9

Not Available As Spare Part - Friction Washer

Unavailable

10

Wear Ring | 4X4

705400036

$24.60

11

Rear Differential Ass'y | Includes 11 to 31

705500774

Unavailable

12

Oil Seal | 4X4

705401481

$17.88

13

Nut | 4X4

705401603

$33.55

14

Ball Bearing | 4X4

705500260

$29.82

15

Pinion Gear Shim 1.67 mm

705502061

$15.64

16

Differential Shim 0.02 mm

705502060

$12.64

17

GEAR, 10 TEETH - Call your local BRP dealership | 4X4

705500268

Unavailable

18

Needle Bearing | 4X4

705500261

Unavailable

19

Ball Bearing

705502737

$44.75

20

BALL BEARING - Call your local BRP dealership

705500750

Unavailable

21

GEAR, 36 TOOTH - Call your local BRP dealership

705500775

Unavailable

22

Screw | 4X4

705401601

$8.67

23

REAR DIFFERENTIAL COVER - Call your local BRP dealership

705500697

Unavailable

24

Seal | 4X4

705500265

$15.64

25

Rear Differential Housing

705500699

Unavailable

26

VENT VALVE - Call your local BRP dealership | 4X4

705500893

Unavailable

27

PROTECTION PLUG - Call your local BRP dealership

705500516

Unavailable

28

Drain Plug | 4X4

705500894

$10.24

29

RETAINING RING - Call your local BRP dealership | 4X4

705500269

Unavailable

30

O-Ring | 4X4

705500267

$6.06

31

Oil Seal

705501996

$20.12

32

Fill Level Plug | 4X4

705500504

$8.73

33

Copper Washer | 4X4

705500506

$0.42

34

LH WHEEL HUB ASSEMBLY - Call your local BRP dealership | 4X4 / Includes 65 to 66

705501713

Unavailable

35

Wheel Stud M10 X 1.25 | 2X4

250300055

$3.18

36

Protector Kit | Includes 38 to 39

703500722

$60.42

37

WARNING DECAL-ENGLISH-TRAILER - Call your local BRP dealership

704900766

Unavailable

38

Hex. Flange Screw M6 X 25

207662544

$0.61

39

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

40

Flat Washer

250200082

$0.40

41

Flange Screw M10 X 16, Scotch Grip | 4X4

250000060

$3.49

42

Flat Washer M10 | 4X4

250200014

$1.34

43

Rubber Bellow | 4X4

705400552

$5.84

44

Oetiker Clamp

293650042

$2.82

45

Hex. Flange Screw M8 X 16, Scotch Grip

207581646

$2.00

46

WHEEL CAP - Call your local BRP dealership

705400012

Unavailable

47

Rear Tire | STD

705500441

Unavailable

47

Rear Tire | STD

705500441

Unavailable

47

Tire 25X10R12 MST | Traxter CVT STD

705503225

$143.25

48

REAR RIM, BLACK - Call your local BRP dealership | Standard, Camo

705500495

Unavailable

48

REAR RIM, GREY - Call your local BRP dealership | STD

705500622

Unavailable

48

REAR RIM, GREY - Call your local BRP dealership | STD

705500622

Unavailable

49

Rim Valve With Cap

705400193

$6.49

50

Steel Wheel Nut

250100042

$3.07

51

Washer

211200041

$3.01

52

Hex. Flange Castellated Nut M18

232291413

$3.24

53

Cotter Pin

250400036

$2.00

54

JET PUMP OIL SYNTHETIC 6 FL OZ / 178 ML | 4X4

779221

$15.64

55

Synthetic Grease, 400 G

293550010

Unavailable

56

LH CV Joint | Includes 56 to 61

705500738

Unavailable

57

CV JOINT - Call your local BRP dealership

705500701

Unavailable

58

BOOT WHEEL KIT - Call your local BRP dealership | Includes 60 to 62

705500469

Unavailable

59

Boot Kit | Includes 63 to 65

705500428

$52.21

60

PLUNGING JOINT - Call your local BRP dealership

705500784

Unavailable

61

CIRCLIP - Call your local BRP dealership

705500845

Unavailable

62

RH CV Joint | Includes 62 to 67

705500739

Unavailable

63

CV JOINT - Call your local BRP dealership

705500701

Unavailable

64

BOOT WHEEL KIT - Call your local BRP dealership | Includes 60 to 62

705500469

Unavailable

65

Boot Kit | Includes 63 to 65

705500428

$52.21

66

PLUNGING JOINT - Call your local BRP dealership

705500784

Unavailable

67

CIRCLIP - Call your local BRP dealership

705500845

Unavailable

68

Hex. Flange Screw, M10 X 130

230603046

$6.99

69

Hex. Flange Screw M10 X 135

230603546

$6.99

70

Hex. Flange Elastic Nut M10

233201436

$2.00

71

Ball Bearing

293350150

$50.34

72

WEAR SLEEVE - Call your local BRP dealership

705500901

Unavailable

73

Wear Sleeve | 4X4

705501121

$6.73

74

Circlip

293370019

$4.68

75

Conical Spring Washer M18

250200171

$6.06
