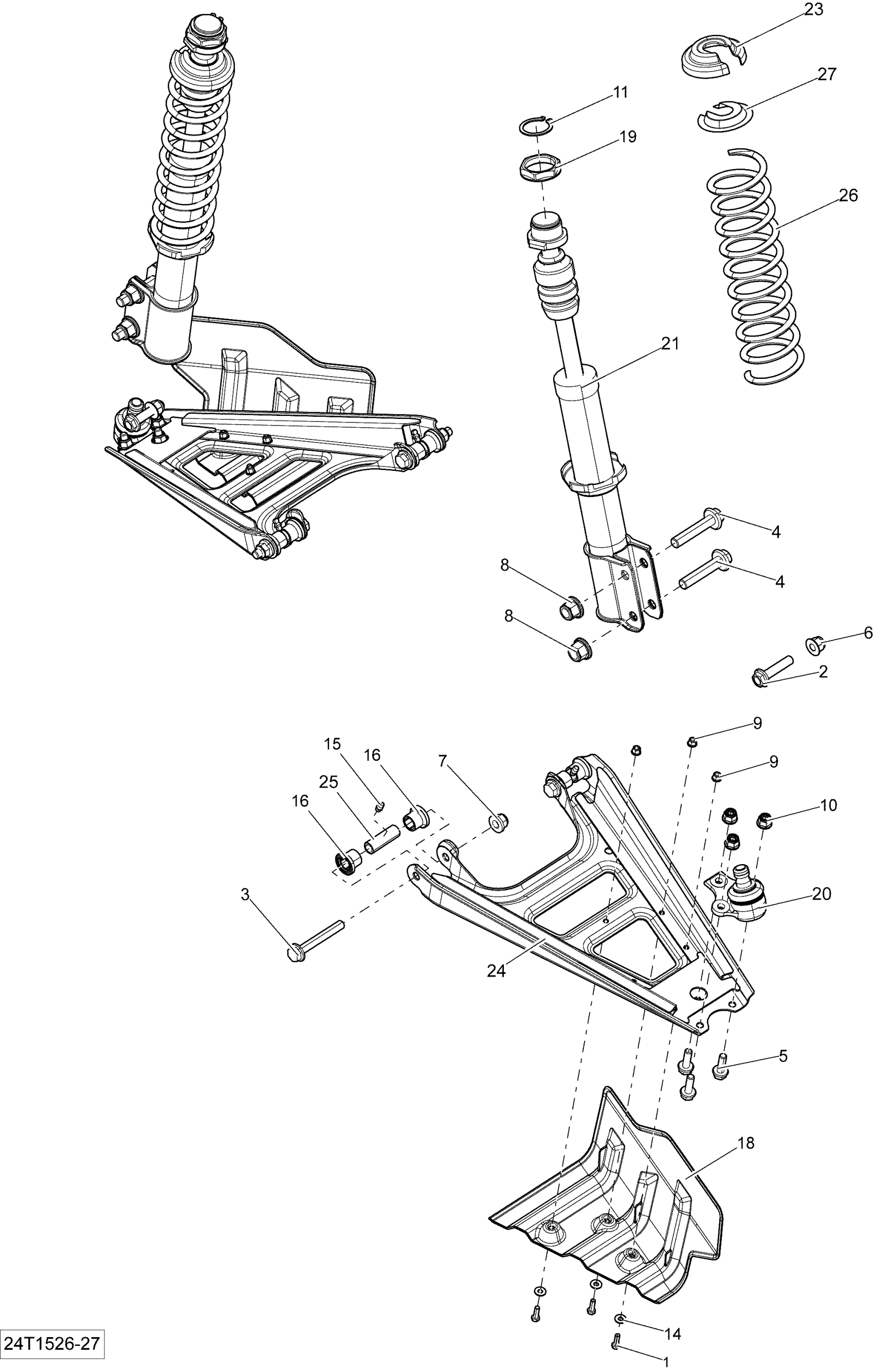

Can-Am Outlander 400 EFI, STD(International only), 2015 Front Suspension _24T1526 Diagram

#

Description
Price

1

Hex. Screw M5 X 16 | 4X4

207151644

$0.85

2

HEX. FLANGED SCREW M10 X 45 - Call your local BRP dealership

207604544

Unavailable

3

Hex. Flange Screw M10 X 70

207607046

$2.82

4

Hex. Flange Screw M12 X 60

207626046

$6.99

5

Hex. Flange Screw M8 X 25

207682544

$1.03

6

Hex. Flange Elastic Nut M10

233201414

$1.45

7

Hex. Flange Elastic Nut M10

233201436

$2.00

8

Hex. Flange Elastic Nut M12

233221414

$5.85

9

Hex. Flange Elastic Nut M5

233251414

$1.91

10

Hex. Flange Elastic Nut M8

233281414

$1.31

11

Circlip 32 mm

293370009

$1.33

14

FLAT WASHER - Call your local BRP dealership | 4X4

250200081

Unavailable

15

Grease Fitting

408200700

$3.21

16

Bushing

706200181

$2.45

18

LH PROTECTOR - Call your local BRP dealership | 4X4

706200213

Unavailable

18

RH PROTECTOR - Call your local BRP dealership | 4X4

706200214

$9.24

19

NUT - Call your local BRP dealership

706200443

Unavailable

20

Joint Attachment

706200444

$48.48

21

Front Shock

706200658

$148.48

23

STOPPER SPRING - Call your local BRP dealership

706200882

Unavailable

24

Suspension Arm

706205905

$147.73

25

Sleeve

706201587

$3.36

26

SPRING COMPRESSION B-160 PAINTED - Call your local BRP dealership

706200819

Unavailable

27

Cap

706200793

$4.28
