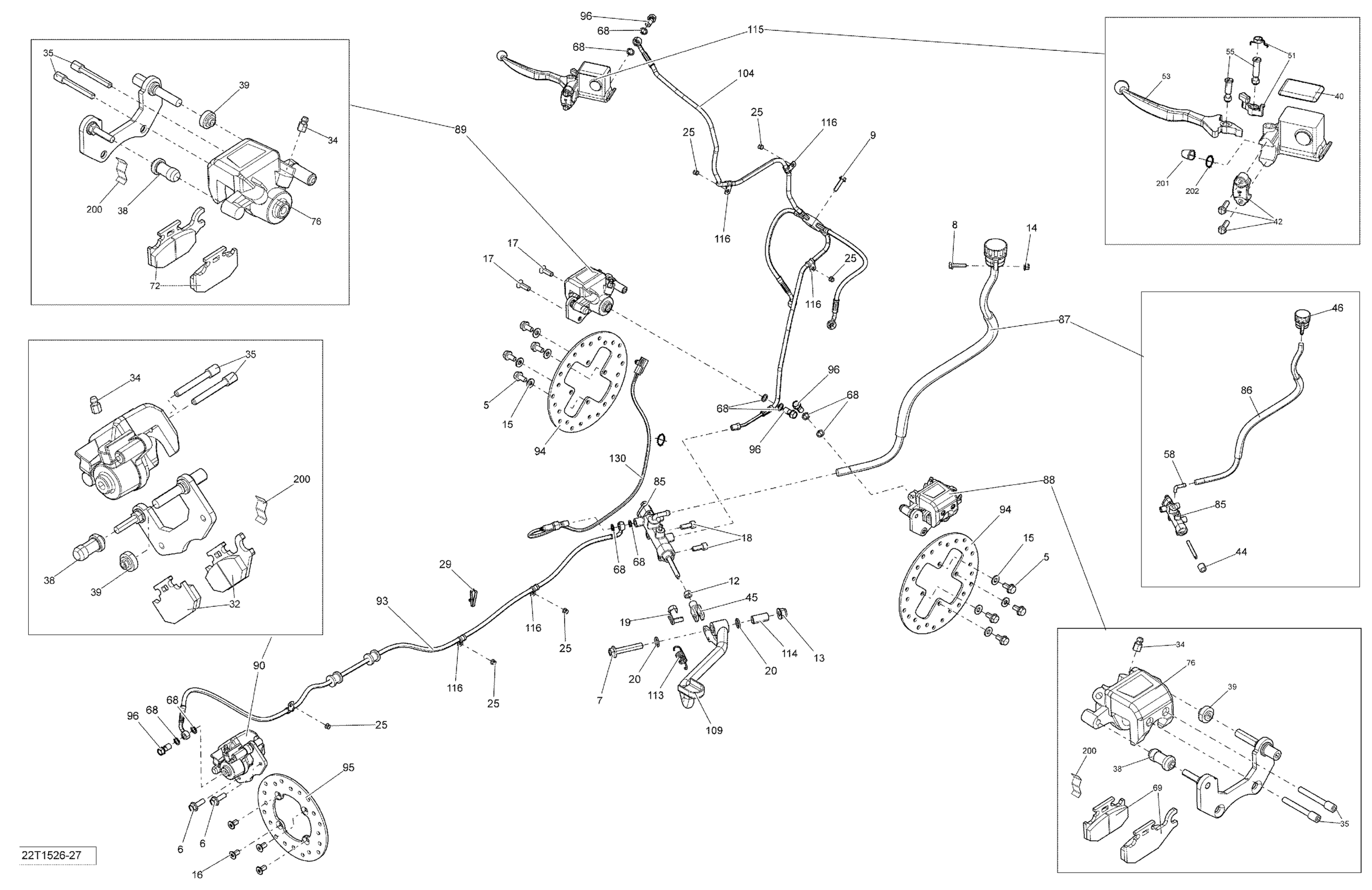

Can-Am Outlander 400 EFI, STD(International only), 2015 Brakes _22T1526 Diagram

#

Description
Price

5

Hex. Flange Screw M8 X 16, Scotch Grip

207581646

$1.74

6

Hex. Flange Screw M8 X 25, Scotch Grip

207582544

$1.68

7

Hex. Flange Screw M10 X 55

207605544

$2.78

8

Hex. Flange Screw M6 X 25

207662544

$0.53

9

Hex. Flange Forming Screw M6 X 25

210262550

$1.64

12

Hex. Nut M8

232081414

$0.60

13

Hex. Flange Elastic Nut M10

233201414

$1.26

14

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

15

Conical Spring Washer M8

234281474

$1.25

16

Torx Screw M8 X 16, Scotch Grip

235381646

$2.09

17

Torx Screw M8 X 25, Scotch Grip

250000143

$1.77

18

Socket Head Screw M8 X 20, Scotch Grip

250000136

$3.06

19

Pin Kit

219702305

$26.62

20

O-Ring

293300144

$3.98

25

Pop Rivet 3/16”

390910000

$0.48

29

Tie-Rap 180 mm

414115200

$0.09

32

LH Brake Pad Kit

705600398

$49.39

34

Bleeding Screw

705600080

$15.22

35

Pin Set (2)

705600081

$19.20

38

Compression Boot

705600082

$10.14

39

Compression Boot

705600083

$10.14

40

Cap Set

705600084

$23.05

42

BRACKET KIT - Call your local BRP dealership

705600087

Unavailable

44

Compression Boot

705600090

Unavailable

45

Yoke

705600100

Unavailable

46

Oil Tank, Brake Fluid Reservoir

705600182

$36.89

51

PARKING KIT, BRAKE LEVER LOCK - Call your local BRP dealership

705600477

Unavailable

53

Lever Arm

705600243

$50.74

55

Brake Lever Bolt Kit

705600246

$14.75

58

PUSHER BRACKET, HOSE CONNECTOR - Call your local BRP dealership

705600064

Unavailable

68

Copper Washer

705601628

$4.34

69

Brake Pad Kit

705600349

$49.39

72

Brake Pad Kit

705600350

$49.39

76

Piston Set

705600078

$36.89

85

Piston Set

705600255

Unavailable

86

OIL HOUSING HOSE - Call your local BRP dealership

705600754

Unavailable

87

Master Cylinder | Includes 36 to 44, STD Model

705600751

$212.28

88

RH Caliper | Includes 1 to 9

705600575

Unavailable

89

LH Caliper | Includes 10 to 18

705600576

$210.74

90

Rear Caliper | Includes 48 to 56

705600577

$210.74

93

Rear Hose | Includes 34 to 35

705600929

$87.66

94

Disk Brake

705600603

$56.89

95

Disk Brake

705600604

$56.89

96

Banjo Bolt (M10 x 1.25 thread)

705600609

$0.91

104

Front Hose | Includes 28 to 29

705600925

$166.12

109

BRAKE PEDAL, BLACK - Call your local BRP dealership

705601154

Unavailable

113

Brake Pedal Spring

705600792

$9.22

114

Inner Spacer

705600815

$10.98

115

Front Master Cylinder | Includes 19 to 26

705600844

$212.28

116

Clamp

293650256

$4.36

130

Brake Switch

705600798

$50.74

200

Spring

705600079

$14.37

201

COMPRESSION BOOT - Call your local BRP dealership

705600089

Unavailable

202

CIRCLIP - Call your local BRP dealership

705600088

Unavailable
