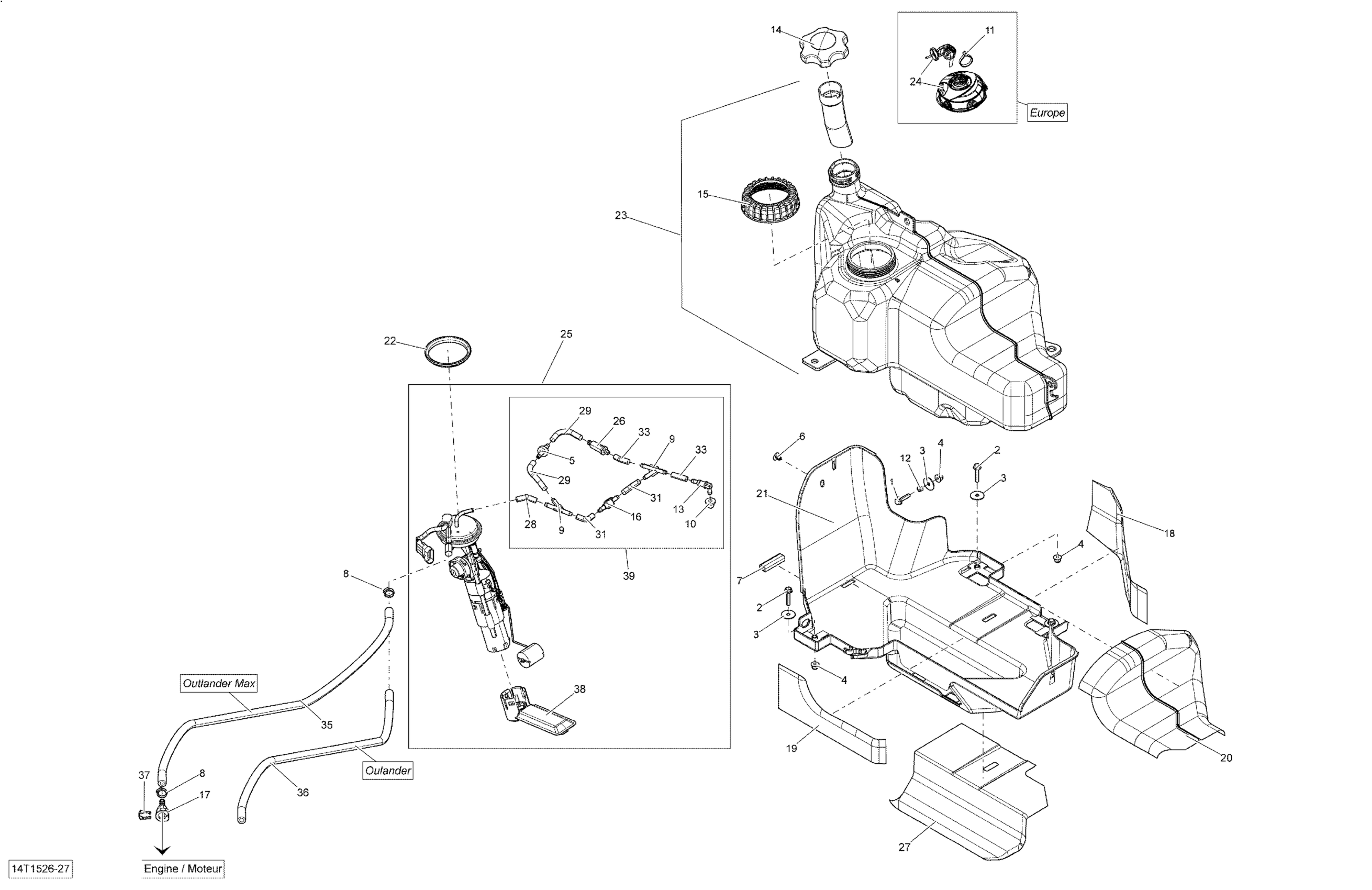

Can-Am Outlander 400 EFI, STD(International only), 2015 Fuel System _14T1526 Diagram

#

Description
Price

1

Hex. Flange Screw M6 X 25

207662534

$2.00

2

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$2.00

3

Washer

224060251

$0.55

4

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

5

Check Valve

275500398

$9.84

6

PLASTIC TUKLOCK RIVET - Call your local BRP dealership

293150168

Unavailable

7

Was 293200017 Neoprene Seal

219704365

$135.79

8

Crimp Clamp, 15.3-706R

293650047

$3.03

9

Y-Fitting

293710059

$9.40

10

Grommet

293720029

$1.30

11

Not Available As Spare Parts

XXX

Unavailable

12

Bushing | DS 650 X

293900104

$5.10

13

Elbow Male Connector

414580600

$4.01

14

Fuel Tank Cap

513033025

$22.36

15

Nut, Fuel Pump Module

513033040

$26.84

16

Check Valve

513033469

$29.07

17

Female Quick Fitting Ass'y

709000125

$12.76

18

REFLECTING SHEET - Call your local BRP dealership

709000204

Unavailable

19

REFLECTING SHEET - Call your local BRP dealership

709000205

Unavailable

20

REFLECTING SHEET - Call your local BRP dealership

709000206

Unavailable

21

TANK PROTECTOR - Call your local BRP dealership

709000207

Unavailable

22

Seal

709000208

$12.16

23

Fuel Tank Ass'y

709000220

$224.60

24

Not Available As Spare Parts

XXX

Unavailable

25

Fuel Pump Kit Ass'y

703500766

$353.87

26

Filter

709000330

$7.48

27

REFLECTING SHEET - Call your local BRP dealership

709000360

Unavailable

28

Polyurethane Hose 10000Mm Long

219704410

$52.96

29

Polyurethane Hose 10000Mm Long

219704410

$52.96

31

Polyurethane Hose 10000Mm Long

219704410

$52.96

33

Polyurethane Hose 10000Mm Long

219704410

$52.96

35

Was 709000163 Fuel Line

219704440

$25.34

36

Was 709000163 Fuel Line

219704440

$25.34

37

Locking Clip

513033135

$4.96

38

Fuel Pre-Filter Kit

709000389

$73.85

39

Fuel Vent Kit

715001288

$29.82
