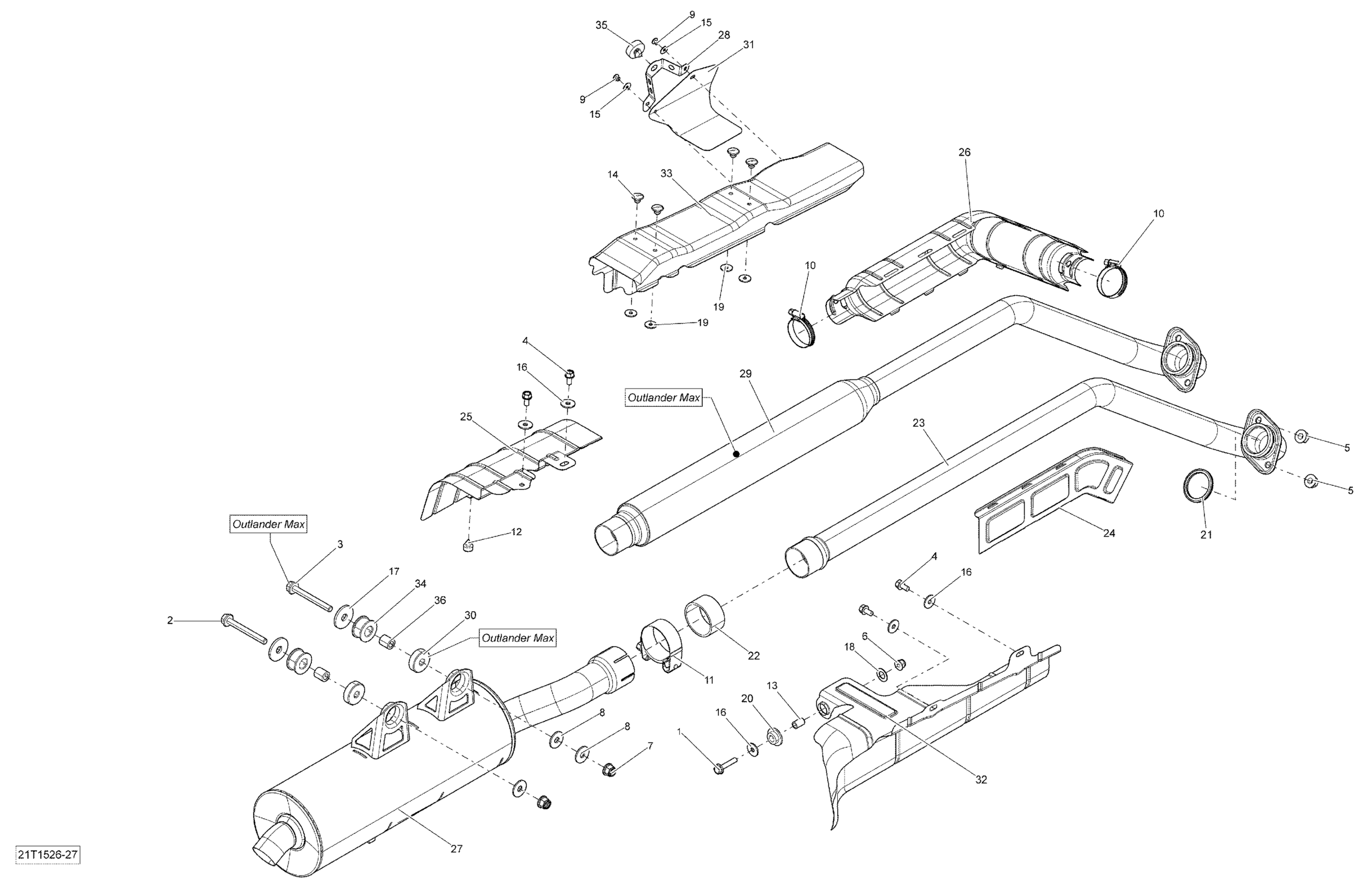

Can-Am Outlander 400 EFI, STD(International only), 2015 Exhaust System _21T1526 Diagram

#

Description
Price

1

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$1.74

2

Hex. Flange Screw M8 X 70

207687044

$6.11

3

Not Available As Spare Parts

XXX

Unavailable

4

Hex. Flange Screw M6 X 12

210261250

$1.56

5

Hex. Flange Nut M8

233081416

$1.63

6

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

7

Hex. Flange Elastic Nut M8

233281414

$1.14

8

Flat Washer 8 mm

234082410

$1.11

9

RIVET_POP 1/8 X ,375 - Call your local BRP dealership

293150122

$0.65

10

Norma Gear Clamp

293650098

$4.28

11

Norma Gear Clamp

293650177

$9.29

12

Not Available As Spare Parts

XXX

Unavailable

13

Sleeve

293900078

$12.68

14

Pop Rivet 3/16"

390406500

$0.70

15

WASHER - Call your local BRP dealership

391301000

$0.65

16

Flat Washer

250200082

$0.35

17

Washer

503032900

$3.20

18

Washer

503175800

$3.26

19

Washer

517124300

$0.16

20

Grommet

705003932

$2.75

21

Gasket

707600317

$10.52

22

Pipe Gasket

707600430

$18.43

23

PIPE_EXHAUST WELD - Call your local BRP dealership

707600453

$183.82

24

HEAT SHIELD COVER - Call your local BRP dealership

707600457

$10.74

25

Not Available As Spare Parts

XXX

Unavailable

26

Heat Base Shield

707600462

$23.05

27

Muffler

707600574

$509.97

27

Not Available As Spare Parts

XXX

Unavailable

28

Panel Support

707600581

Unavailable

29

Not Available As Spare Parts

XXX

Unavailable

30

Not Available As Spare Parts

XXX

Unavailable

31

HEAT SHIELD - Call your local BRP dealership

707600618

$13.83

32

Protector

707600621

Unavailable

33

HEAT SHIELD - Call your local BRP dealership

707600700

Unavailable

34

Vibration Damper

707603323

$11.98

35

Rubber Stopper

708000506

$6.15

36

Bushing

293900106

$4.42
