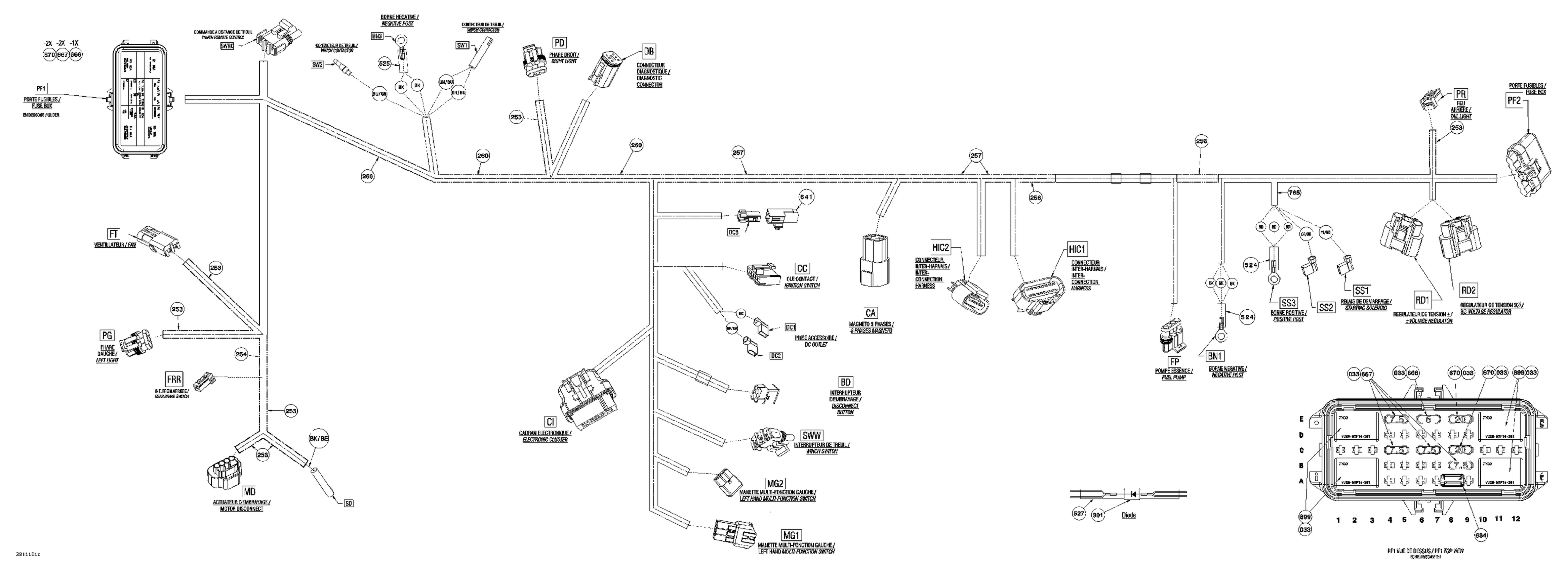

Can-Am Outlander 400 EFI, 2011 Main Harness International Diagram

#

Description
Price

1

Main Harness Ass'y | Includes 1 to 1028

710002226

Unavailable

253

Tubing 6 Mm 3000Mm Long

219704425

$13.14

254

Was 409901700 Tubing (9 mm)

219704399

$79.97

255

Was 409901800 Tubing (13 mm)

219704400

$9.40

256

Tubing 16 Mm 1000Mm Long

219704408

$6.23

257

Was 409901600 Tubing 19mm

219704398

$89.97

260

Was 515175319 Tubing 22 mm

219704423

$11.84

301

Diode

409012700

$10.83

365

MALE HOUSING, 4 CIRCUITS - Call your local BRP dealership

515175672

Unavailable

484

Seal

415128501

$1.51

525

SHRINK TUBING - Call your local BRP dealership

710000482

Unavailable

641

Male Housing, 2 Circuits

710000667

$7.48

666

Little Fuse, 5 Amperes

710000742

$7.24

667

Little Fuse, 7.5 Amperes

710000743

$8.02

670

Little Fuse, 20 Amperes

710000746

$6.77

672

Diode

710000748

$10.83

899

Relay, 30 AMP | Obsolete. ATV order 515176774

278002168

Unavailable

1028

Terminal | Canada/Usa

710001635

$3.98

BD

Female Terminal

409012100

$3.73

BD

Female Housing, 6 Circuits

710000081

$8.29

BD

Wire Seal

710000402

$4.42

BD

Cap

710000840

$5.49

BN1

Terminal

710000913

$5.46

BN3

Open Barrel

278000992

$1.79

C1

Plug

515175812

$1.70

C1

Female Housing, 24 Circuits

515175801

$9.00

C1

Retainer Block

515175802

$10.66

C1

Wire Seal

515175803

$2.41

C1

Female Terminal

515175806

$0.81

C1

Female Housing

710000399

$14.02

C1

Female Terminal

710001131

$7.00

CA

Sealing Cap

293000052

$2.55

CA

FEMALE HOUSING, 4 CIRCUITS - Call your local BRP dealership

278001477

Unavailable

CA

Male Terminal

515175568

$7.48

CA

MALE WEDGE, 4 CIRCUITS - Call your local BRP dealership

278001478

Unavailable

CC

Was 293550004 Dielectric Grease, 150 g

219704453

$37.66

CC

Female Terminal

710000274

$8.98

CC

Lock

710000848

$3.98

CC

Male Housing, 6 Circuits

710000849

$7.55

DB

Female Terminal

278000632

$1.69

DB

Sealing Cap

293000052

$2.55

DB

Male Housing, 6 Circuits

515175673

$13.05

DB

Male Wedge, 6 Circuits

515175678

$5.11

DC1

Female Terminal

710000038

$4.60

DC2

Female Terminal

710000038

$4.60

DC3

Female Terminal

515175231

$4.12

DC3

Female Housing, 2 Circuits

515175658

$15.35

DC3

Was 293550004 Dielectric Grease, 150 g

219704453

$37.66

FP

Female Terminal

278001014

$2.72

FP

Female Housing, 4 Circuits

409209700

$12.97

FP

Wire Seal

278001013

$2.72

FRR

Female Terminal

515175231

$4.12

FRR

Female Housing, 2 Circuits

515175658

$15.35

FRR

Was 293550004 Dielectric Grease, 150 g

219704453

$37.66

FT

Male Terminal

409004300

$5.46

FT

Female Housing, 2 Circuits

278000217

$7.59

FT

Wire Seal

278000218

$3.48

FT

Clip

710000992

$4.00

HIC1

Seal

710001230

$2.75

HIC1

Seal

710001233

$2.55

HIC1

Terminal

710001229

$3.02

HIC1

Terminal

710001228

$2.72

HIC1

Housing

710001226

$11.83

HIC1

Cap

710001225

$7.27

HIC1

LOCK - Call your local BRP dealership

710001221

$8.68

HIC2

Housing

710001232

$13.80

HIC2

Seal

710001230

$2.75

HIC2

Seal

710001233

$2.55

HIC2

Terminal

710001229

$3.02

HIC2

Terminal

710001228

$2.72

HIC2

Cap

710001225

$7.27

HIC2

LOCK - Call your local BRP dealership

710001221

$8.68

MD

Male Housing, 4 Circuits

710000329

$14.75

MD

Female Terminal

710000335

$1.80

MD

Wire Seal

710000402

$4.42

MD

Cap

710000840

$5.49

MG1

Male Terminal

409011300

$5.78

MG1

Wire Seal

710000402

$4.42

MG1

Male Terminal Housing, 6 Circuits

710000835

$16.89

MG1

Cap

710000840

$5.49

MG2

Female Terminal

409012100

$3.73

MG2

Seal

409012300

$4.38

MG2

Female Housing, 6 Circuits

710000081

$8.29

MG2

Wire Seal

710000402

$4.42

PD

Female Terminal

278001014

$2.72

PD

Female Housing, 3 Circuits

409209600

$35.35

PD

Wire Seal

278001013

$2.72

PF1

Wire Seal

278000999

$2.55

PF1

Fuse Box Base Ass´y

415129856

$41.57

PF1

Fuse Puller

710000781

$8.29

PF1

Female Terminal

710000836

$5.46

PF1

Female Terminal

710000837

$4.32

PF1

Cap

710000840

$5.49

PF1

Fuse Cover

710001026

$17.52

PF1

Fuse/Relay Decal

710001372

Unavailable

PF1

Foam

278002172

$5.49

PF2

Wire Seal

710000048

$5.10

PF2

Was 293550004 Dielectric Grease, 150 g

219704453

$37.66

PF2

WIRE SEAL - Call your local BRP dealership

278001505

Unavailable

PF2

Housing, 6 Circuits

710000888

$16.89

PF2

Lock

710000889

$4.60

PF2

Little Fuse, 30 Amperes

710000747

$6.77

PF2

Female Terminal

710000890

$3.73

PF2

Cover

710000897

$12.62

PF2

Clip

710000992

$4.00

PG

Female Terminal

278001014

$2.72

PG

Female Housing, 3 Circuits

409209600

$35.35

PG

Wire Seal

278001013

$2.72

PR

Female Terminal

515175231

$4.12

PR

Female Housing, 3 Circuits

515175495

$15.35

PR

Was 293550004 Dielectric Grease, 150 g

219704453

$37.66

RD1

Female Terminal

710000877

$6.32

RD1

Female Housing, 3 Circuits

710000879

$21.42

RD1

Seal

710000881

$14.27

RD1

Cap

710000882

$9.19

RD2

Female Terminal

710000877

$6.32

RD2

Housing, 3 Circuits

710000880

$17.52

RD2

Seal

710000881

$14.27

SD

Insulated Sheath

278001007

$3.22

SD

Female Terminal

710000421

$5.46

SS1

Female Terminal

409010300

$4.12

SS2

Female Terminal

409010300

$4.12

SS3

Terminal

710000913

$5.46

SW1

Insulated Sheath

278000770

$7.60

SW1

Female Terminal

710000421

$5.46

SW2

Insulated Sheath

278001008

$3.20

SW2

Female Terminal

278002261

$6.20

SWRC

Female Terminal

278000223

$2.55

SWRC

Male Housing, 3 Circuits

278000273

$7.59

SWRC

Wire Seal

710000504

$4.60

SWW

Female Terminal

278000223

$2.55

SWW

Male Housing, 3 Circuits

278000273

$7.59

SWW

Wire Seal

710000504

$4.60
