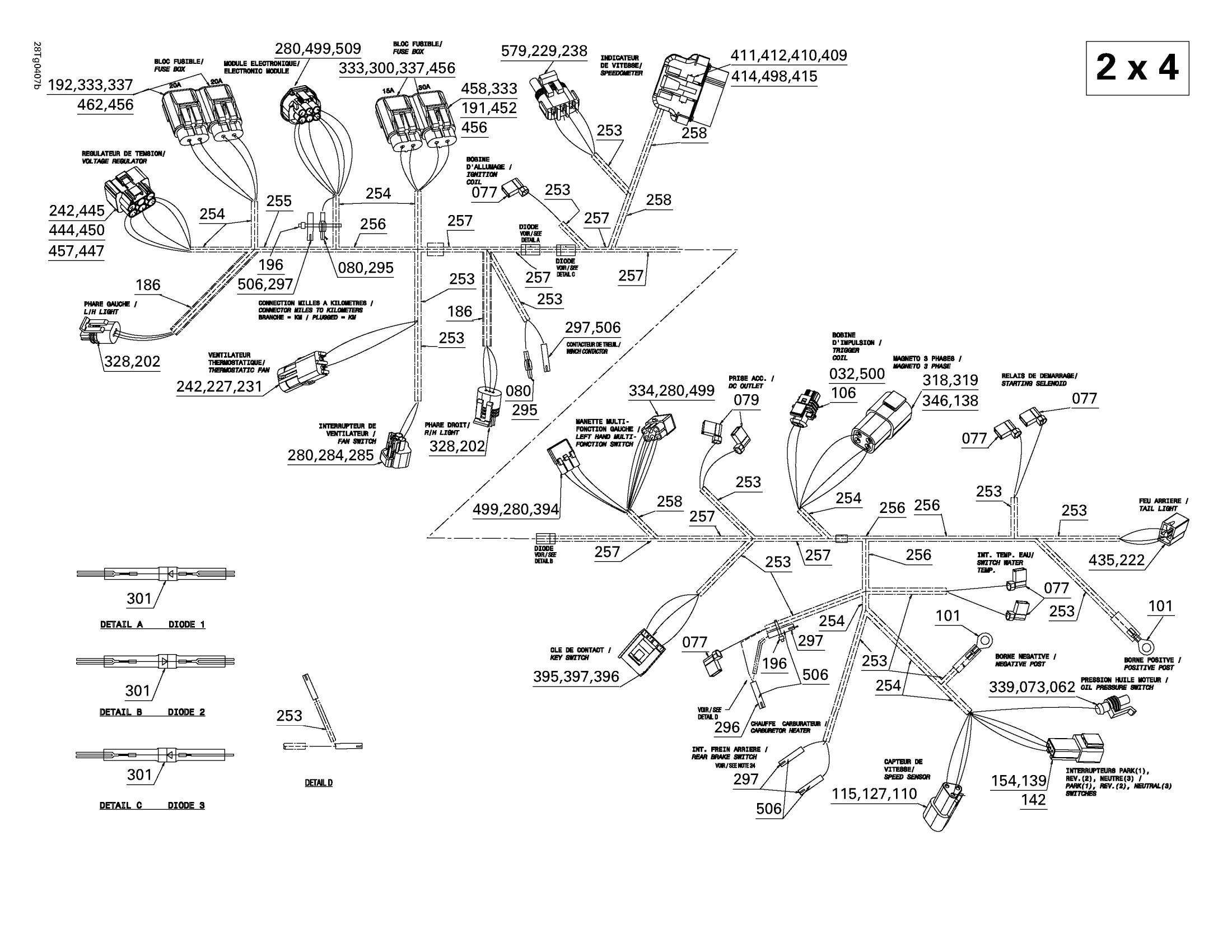

Can-Am Outlander 330/400 STD 2 X 4, 2004 Main Harness (2X4) Diagram

#

Description
Price

1

Harness Ass'y | Includes 1 - 509

710000462

Unavailable

32

Female Terminal

278000998

$3.48

62

Female Terminal

278001014

$2.72

73

Wire Seal

278001013

$2.72

77

Female Terminal

409010300

$4.12

79

Female Terminal

710000038

$4.60

80

Male Terminal

278000230

$3.48

101

Open Barrel Terminal

278001392

$4.12

106

Male Housing, 2 Circuits

278001005

$15.57

110

Male Terminal

278000631

$4.12

115

Male Housing

278002378

$10.91

127

Male Lock, 3 Circuits

409207600

$3.02

138

Sealing Cap

293000052

$2.55

139

MALE TERMINAL - Call your local BRP dealership

409014800

$3.14

142

MALE HOUSING, 3 CIRCUITS - Call your local BRP dealership

710000044

$23.51

154

MALE LOCK, 3 CIRCUITS - Call your local BRP dealership

710000043

$5.46

186

Vinyl Tubing, Low Temp 3000Mm Long

219704424

$19.20

191

Fuse, 30 Amperes

410917200

$3.22

192

Fuse, 20 Amperes

409003900

$3.22

202

Female Terminal

278001114

$2.55

210

MALE HOUSING, 6 CIRCUITS - Call your local BRP dealership

710001540

$19.97

227

Male Terminal

409004300

$5.46

231

Female Housing, 2 Circuits

278000217

$7.59

242

Wire Seal

278000218

$3.48

253

Tubing 6 Mm 3000Mm Long

219704425

$13.14

254

Was 409901700 Tubing (9 mm)

219704399

$79.97

255

Was 409901800 Tubing (13 mm)

219704400

$9.40

256

Tubing 16 Mm 1000Mm Long

219704408

$6.23

257

Was 409901600 Tubing 19mm

219704398

$89.97

280

Female Terminal

409012100

$3.73

284

Seal

409012300

$4.38

285

HOUSING-TAB - Call your local BRP dealership

710000078

$19.77

287

Cap

710000080

$6.48

295

Female Terminal | DS 650 X

278001009

$2.55

296

Insulated Sheath

278000770

$7.60

297

Insulated Sheath

278001007

$3.22

300

Fuse, 15 Amperes

278000343

$2.72

301

Not Available As Spare Part - Friction Washer

Unavailable

318

FEMALE HOUSING, 4 CIRCUITS - Call your local BRP dealership

278001477

$29.20

319

Male Terminal

515175568

$7.48

328

MALE TERMINAL HOUSING, 3 CIRCUITS - Call your local BRP dealership

278001467

$9.97

333

Fuse Holder

278001325

$8.57

334

Female Housing, 6 Circuits

710000081

$8.29

336

Rubber Envelope Terminal

710000115

Unavailable

337

Female Terminal

710000113

$6.03

338

FEMALE TERMINAL - Call your local BRP dealership

710000114

$6.12

339

Male Housing, 1 Circuit

278001012

$12.65

346

MALE WEDGE, 4 CIRCUITS - Call your local BRP dealership

278001478

$2.86

394

Female Terminal Housing, 3 Circuits

710000275

Unavailable

395

Female Terminal

710000274

$8.98

396

Female Terminal Housing, 4 Circuits

710000272

$10.14

397

Lock, 4 Circuits

710000273

$8.98

409

Plug

515175812

$1.70

410

FEMALE TERMINAL HOUSING, 24 CIRCUITS - Call your local BRP dealership

409204600

Unavailable

411

Retainer Block

515175802

$10.66

412

Wire Seal

515175803

$2.41

414

LOCK - Call your local BRP dealership

515175805

$5.74

415

Female Terminal

515175806

$0.81

435

Not Available As Spare Part - Friction Washer

Unavailable

444

MALE TERMINAL HOUSING, 6 CIRCUITS - Call your local BRP dealership

710000336

$14.65

445

JOINT SEAL - Call your local BRP dealership

710000337

$7.32

447

SECONDARY LOCK - Call your local BRP dealership

710000339

$14.65

450

CAP - Call your local BRP dealership

710000343

$6.49

452

HOUSING COVER - Call your local BRP dealership

710000342

$10.74

456

Cushion

278000805

$3.22

457

FEMALE TERMINAL - Call your local BRP dealership

710000356

$8.94

458

Female Terminal

710000357

$6.03

498

Female Housing

710000399

$14.02

499

Wire Seal

710000402

$4.42

500

WIRE SEAL - Call your local BRP dealership

710000403

Unavailable

506

Female Terminal

710000421

$5.46

509

Female Terminal Housing, 6 Circuits

710000474

Unavailable
