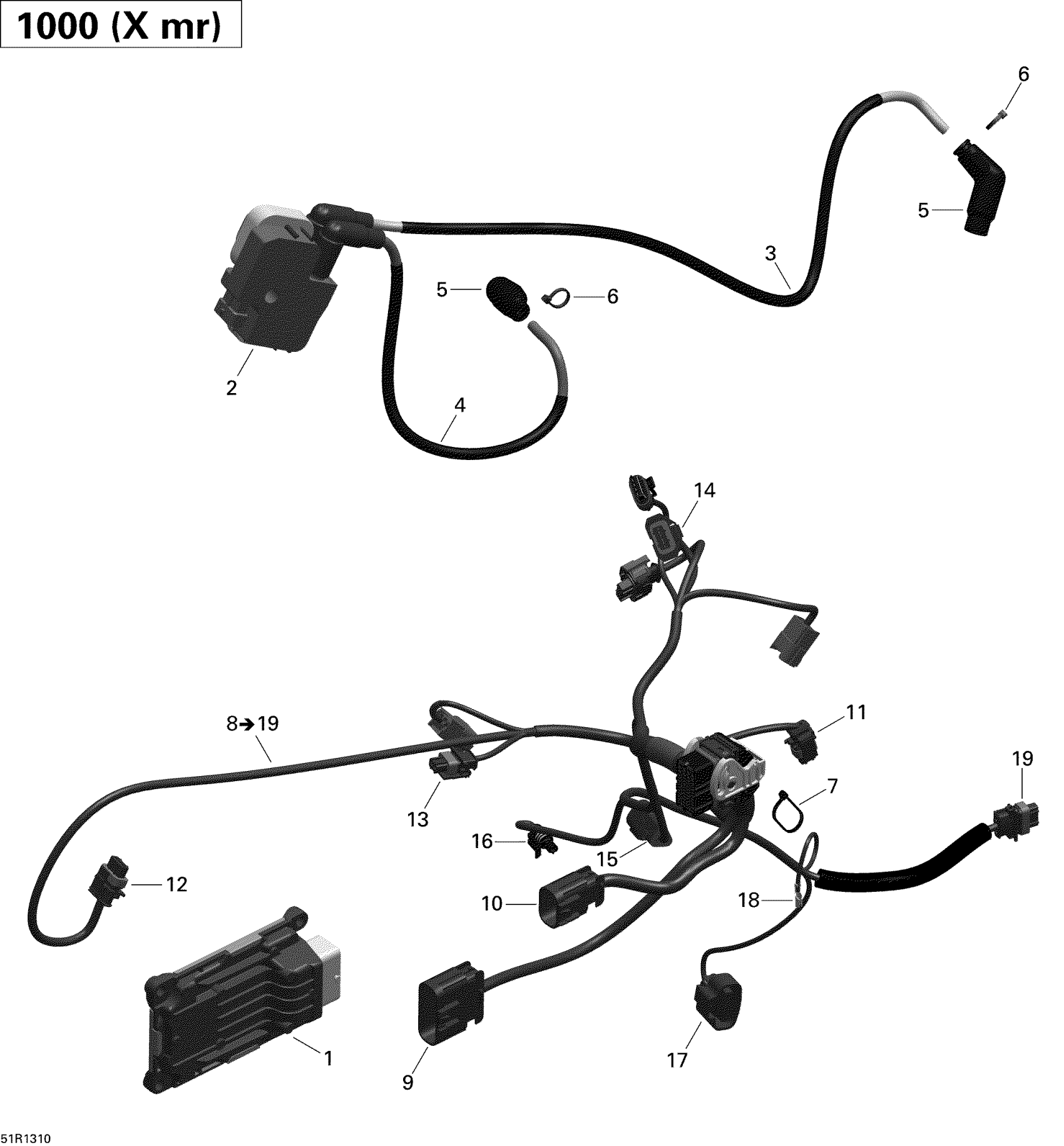

Can-Am Outlander 1000EFI XMR, 2013 Engine Harness And Electronic Module Diagram

#

Description

Price

1

ECM CONNECTOR - Call your local BRP dealership

420266966

Unavailable

2

Ignition Coil

278001546

$129.32

3

Spark Plug Cable, 790 mm, Rear

420665333

$52.96

4

Spark Plug Cable, 790 mm, Rear

420665333

$52.96

5

Spark Plug Connector

420265248

$30.57

6

Tie Rap

420866710

$4.36

7

Tie Wrap 94 mm | 4X4

293750001

$0.83

8

Wiring Harness | Includes 8 to 19

420666503

$394.00

9

Not Available As Spare Part - Friction Washer

Unavailable

10

Not Available As Spare Part - Friction Washer

Unavailable

11

Male Housing, 2 Circuits

278001005

$15.57

12

Male Housing, 3 Circuits

278000997

$15.57

13

Male Housing, 2 Circuits

278001005

$15.57

14

Housing Connector, 3 Circuits

278001829

$17.52

15

Male Housing

278002378

$10.91

16

Male Housing, 1 Circuit

278001012

$12.65

17

Male Housing, 4 Circuits

710000329

$14.34

18

Not Available As Spare Part - Friction Washer

Unavailable

19

Male Housing, 3 Circuits

278000997

$15.57
