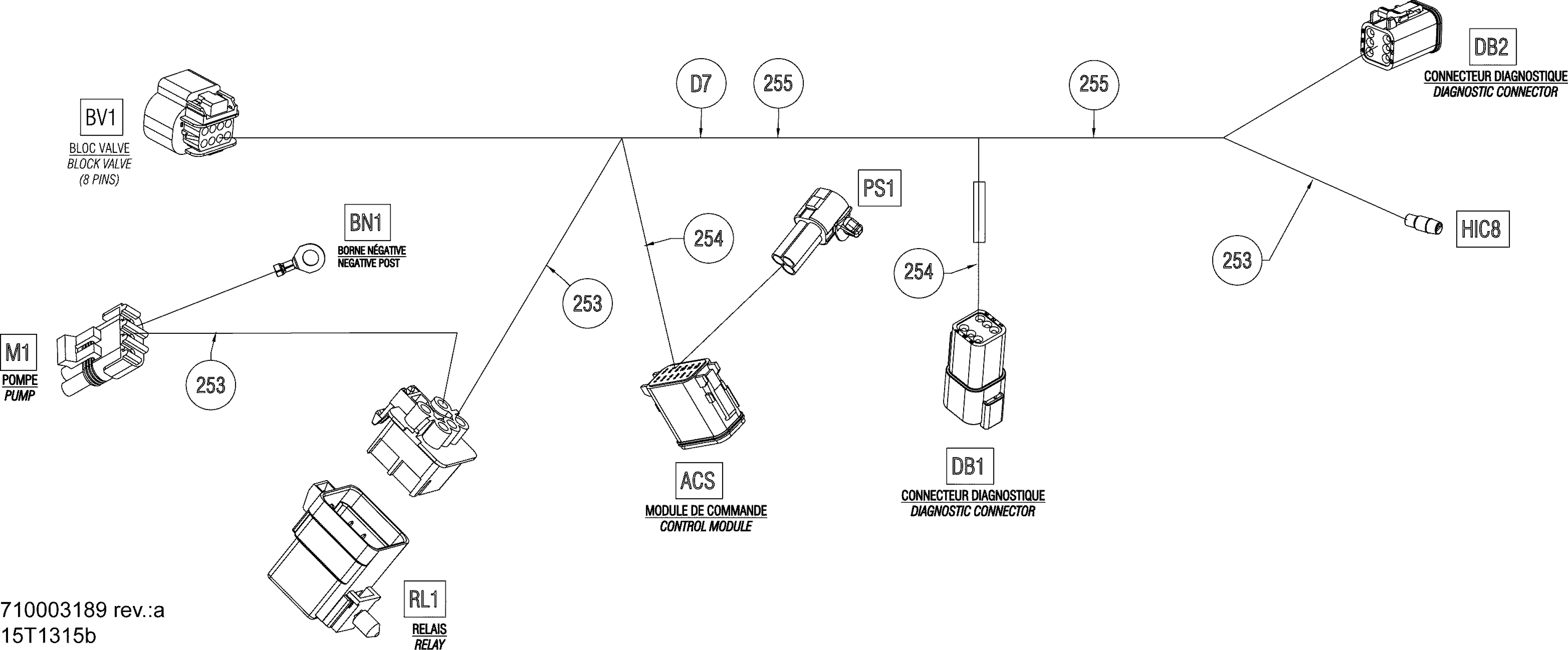

Can-Am Outlander 1000EFI XMR, 2013 Electrical Harness Compressor Diagram

#

Description
Price

1

COMPRESSOR HARNESS ASS'Y - Call your local BRP dealership

710003189

Unavailable

253

Tubing 6 Mm 3000Mm Long

219704425

$13.14

254

Was 409901700 Tubing (9 mm)

219704399

$79.97

256

Tubing 16 Mm 1000Mm Long

219704408

$6.23

ACS

Sealing Cap

293000052

$2.55

ACS

Female Terminal

278001665

$3.73

BN1

Open Barrel

278000992

$1.79

BV1

Seal

710001233

$2.55

BV1

Terminal

710001229

$3.02

BV1

Housing

710001928

$14.97

D7

Diode

409012700

$10.83

D8

Diode

409012700

$10.83

D9

Diode

409012700

$10.83

DB1

Female Lock, 6 Circuits

278000735

$3.02

DB1

Male Terminal

710001348

$11.14

DB1

Male Terminal Housing, 6 Circuits

710001539

$15.57

DB2

Male Wedge, 6 Circuits

515175678

$5.11

DB2

Female Terminal

278001665

$3.73

DB2

MALE HOUSING, 6 CIRCUITS - Call your local BRP dealership

710001540

$19.97

HIC8

Male Terminal

278000230

$3.48

HIC8

Insulated Sheath

278001008

$3.20

M1

Female Terminal

409007300

$0.36

M1

Male Housing, 3 Circuits

278000273

$7.59

M1

Wire Seal

278000218

$3.48

M1

Wire Seal

278000216

$2.55

PS

Male Terminal

409011300

$5.78

PS

Wire Seal

710000402

$4.42

PS

Connector

710000722

$10.14

RL1

Wire Seal

278000218

$3.48

RL1

Wire Seal

278000216

$2.55

RL1

Wire Seal

278001065

$6.03

RL1

RELAY - Call your local BRP dealership

710002996

Unavailable
