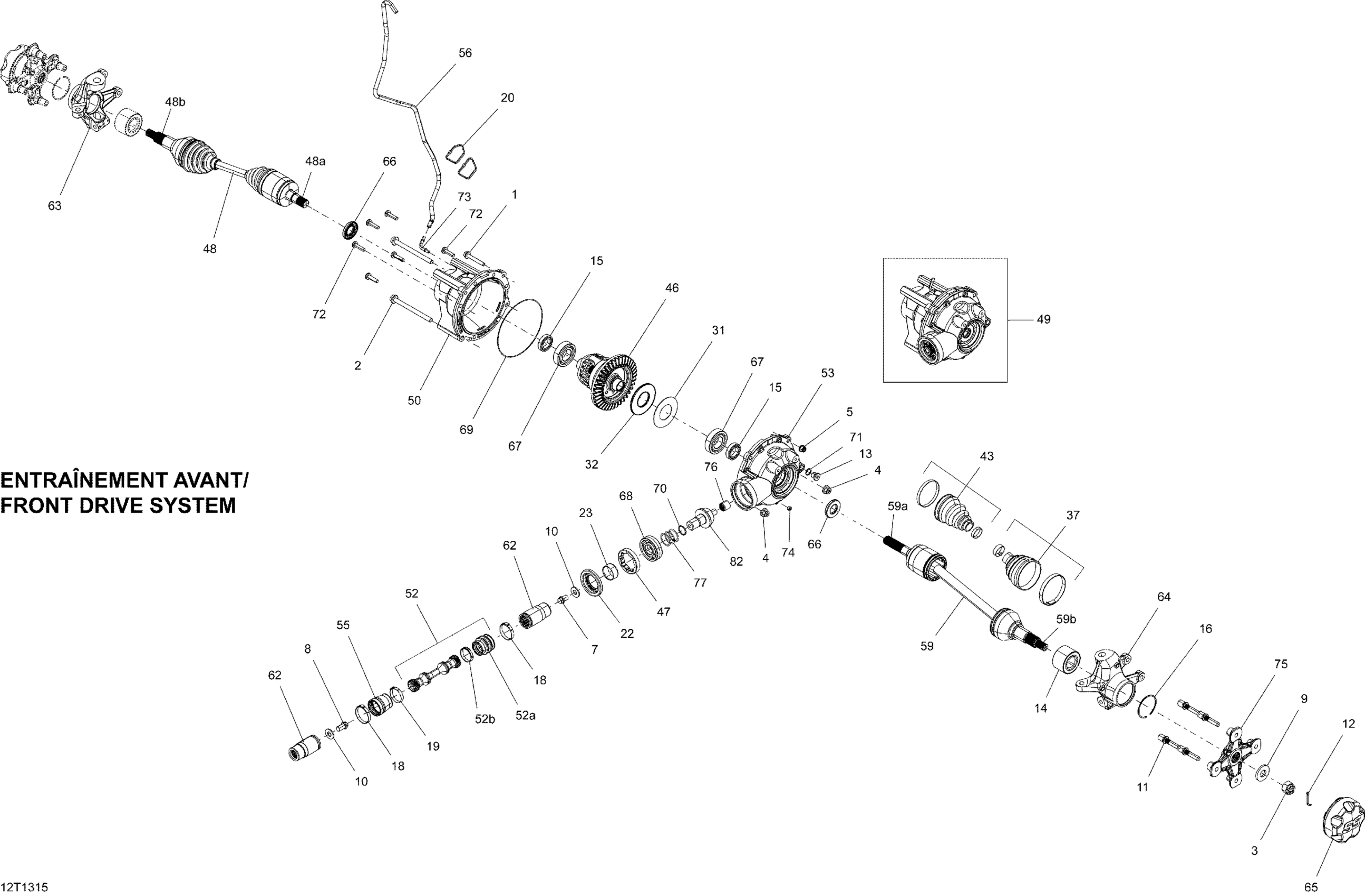

Can-Am Outlander 1000EFI XMR, 2013 Drive System, Front Diagram

#

Description
Price

1

Hex. Flange Screw M8 X 55

207685544

$4.41

2

Hex. Flange Screw M10 X 125

230602546

$6.08

3

Hex. Flange Castellated Nut M18

232291413

$2.82

4

Hex. Flange Elastic Nut M10

233201436

$1.74

5

Hex. Flange Elastic Nut M8

233281414

$1.14

7

HEX FLANGED SCREW M12 X 16, SCOTCH GRIP - Call your local BRP dealership

250000378

Unavailable

8

Hex Flange Screw M12 X 20

250001042

$1.56

9

Conical Spring Washer M18

250200171

$5.28

10

Flat Washer M12

250200102

$1.74

10

Flat Washer M12

250200102

$1.74

11

Wheel Stud | Tightening Torque: See Bulletin ATV 2020-4

250300643

$4.62

12

Cotter Pin

250400036

$1.74

13

Fill Level Plug | 4X4

705500504

$7.61

14

Ball Bearing

293350150

$51.93

15

Ball Bearing | 4X4

293350044

$30.39

16

Circlip

293370019

$4.98

18

Oetiker Gear Clamp 44.0MM | 4X4

293650138

$8.57

19

Oetiker Gear Clamp

293650199

$7.16

20

Tie-Rap 180 mm

414115200

$0.09

22

Oil Seal | 4X4

705401481

$18.43

23

Wear Ring | 4X4

705400036

$25.35

31

Shim | 4X4

705401604

$55.35

32

Shim | 4X4

705401604

$55.35

37

Boot Kit, Wheel Side

705401354

$41.51

37

Oetiker Clamp, Large

715900260

$7.84

37

Oetiker Clamp, Small

715900261

$4.39

43

Boot Kit, Différential Side

705401355

$41.51

43

Oetiker Clamp, Large

715900260

$7.84

43

Oetiker Clamp, Large

715900262

$7.84

46

DIFFERENTIAL KIT - Call your local BRP dealership

703500872

Unavailable

47

Nut | 4X4

705401603

$36.89

48

Performance CV Axle - Front Left

705401704

$210.74

48a

LH Plunging CV Joint

715900396

$249.20

48b

CV Joint

705401407

$253.82

49

Front Differential | XT, XT-P, Includes 9 to 29

703500908

$1,684.58

50

FRONT COVER - Call your local BRP dealership

705400762

Unavailable

52

Propeller Shaft | Includes 1 to 2

705400913

$203.05

52a

Rubber Boot Kit

703500794

Unavailable

52b

Oetiker Gear Clamp 36.1MM

509000045

$3.55

53

FRONT COVER - Call your local BRP dealership

705400761

Unavailable

55

Rubber Boot

705401093

$4.60

56

Polyurethane Hose 10000Mm Long

219704410

$46.12

59

Performance CV Axle - Front Right

705401703

$210.74

59a

RH Plunging CV Joint

715900395

$249.20

59b

CV Joint

705401407

$253.82

62

Front Bushing Shaft Kit | 4X4

703500678

$104.58

63

LH Knuckle

705403307

$175.35

64

RH Knuckle

705403308

$175.35

65

Wheel Cap

705401318

$20.74

66

Gasket | 4X4

705401618

$17.66

67

Ball Bearing | 4X4

705401606

$49.20

68

Ball Bearing | 4X4

705500260

$30.39

69

Seal | 4X4

705500265

$16.12

70

O-Ring | 4X4

705500267

$6.25

71

Copper Washer | 4X4

705500506

$0.36

72

Screw | 4X4

705401601

$9.29

73

VENT VALVE - Call your local BRP dealership | 4X4

705500893

Unavailable

74

Drain Plug | 4X4

705500894

$11.06

75

Wheel Hub Ass'y

705501716

$129.20

76

Needle Bearing | 4X4

705500261

Unavailable

77

Pinion Gear Shim 1.67 mm

705502061

$16.12

77

Pinion Gear Shim .022"

705500075

Unavailable

77

Pinion Gear Shim

705501162

$15.17

82

10 TEETH PINION - Call your local BRP dealership

705501588

Unavailable
