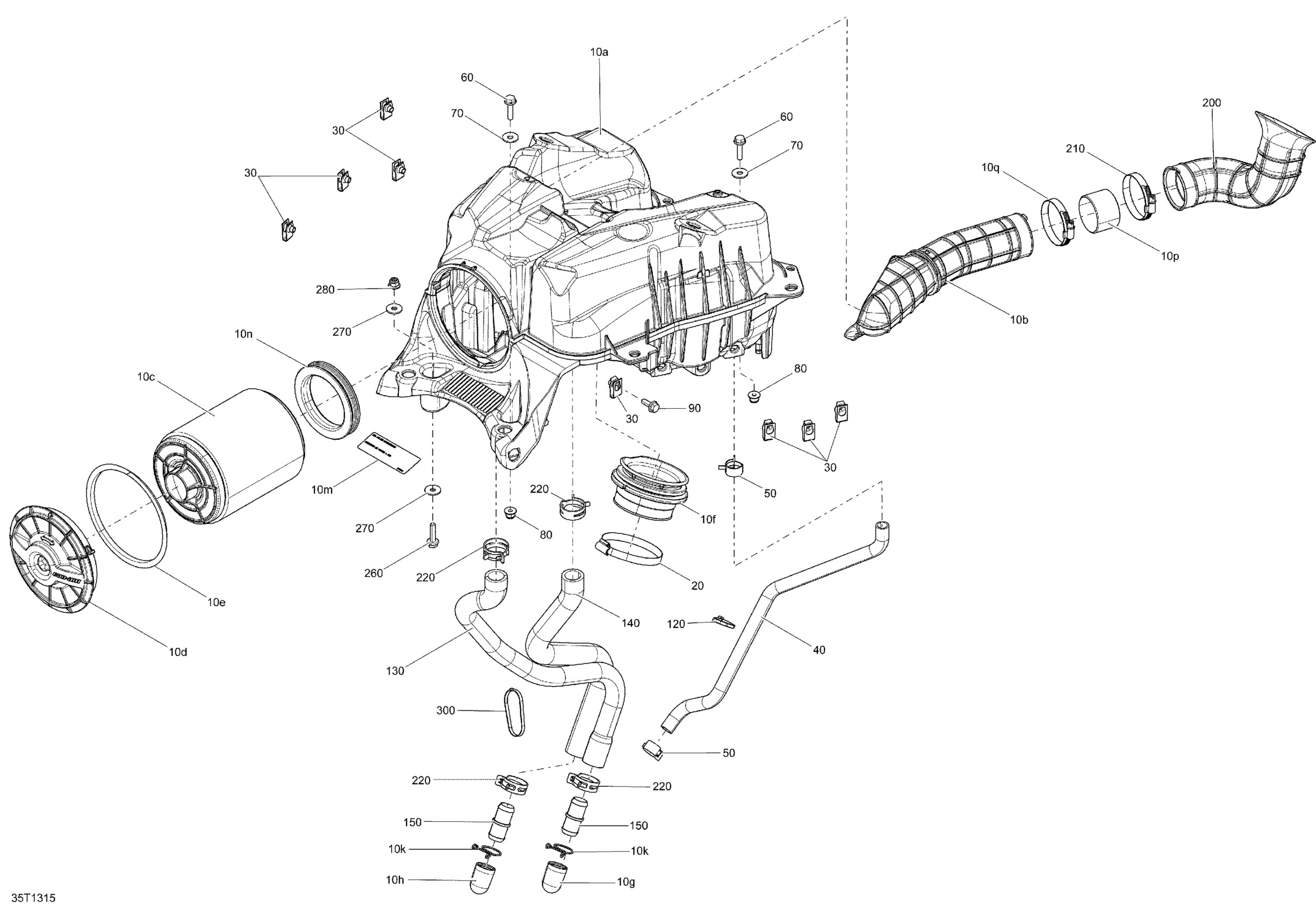

Can-Am Outlander 1000EFI XMR, 2013 Air Intake Diagram

#

Description
Price

10a

Intake Silencer

707800531

Unavailable

10b

Air Intake Hose

707800501

$49.97

10c

Air Filter

707800371

$36.54

10d

Intake Silencer Cap Ass'y

715002174

$14.42

10e

Gasket

293300175

$12.49

10f

Intake Adaptor

707800333

$17.88

10g

Drain Tube

707800404

$2.89

10h

Drain Tube

707800080

$6.99

10k

Retainer Clip

707800278

$12.30

10m

Air Filter Maintenance Decal

707800373

Unavailable

10n

Air Filter Adaptor

707800470

$17.88

10p

Ring

707800504

$48.48

10q

Gear Clamp

293650230

$6.11

20

Norma Clamp

293650091

$4.46

30

Panel Nut M6 X 1.0

250100198

$1.73

40

Vent Hose

707800453

$23.10

50

Norma Clamp

293650110

$4.25

60

Hex. Flange Screw M6 X 25

207662534

$1.74

70

Flat Washer

250200082

$0.35

80

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

90

Hex. Flange Screw M6 X 16

207661644

$0.61

120

Tie-Rap 180 mm

414115200

$0.09

130

Formed Hose

707800510

$32.81

140

Formed Hose

707800511

$32.81

150

Straight Fitting

270001073

$9.00

200

Air Intake Hose

707800503

$35.79

210

Norma Clamp

293650077

$6.11

220

Norma Spring Clamp

293650109

$3.88

260

Hex. Flange Screw M6 X 25

207662534

$1.74

270

Flat Washer

250200082

$0.35

280

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

300

Tie-Rap 180 mm

414115200

$0.09
