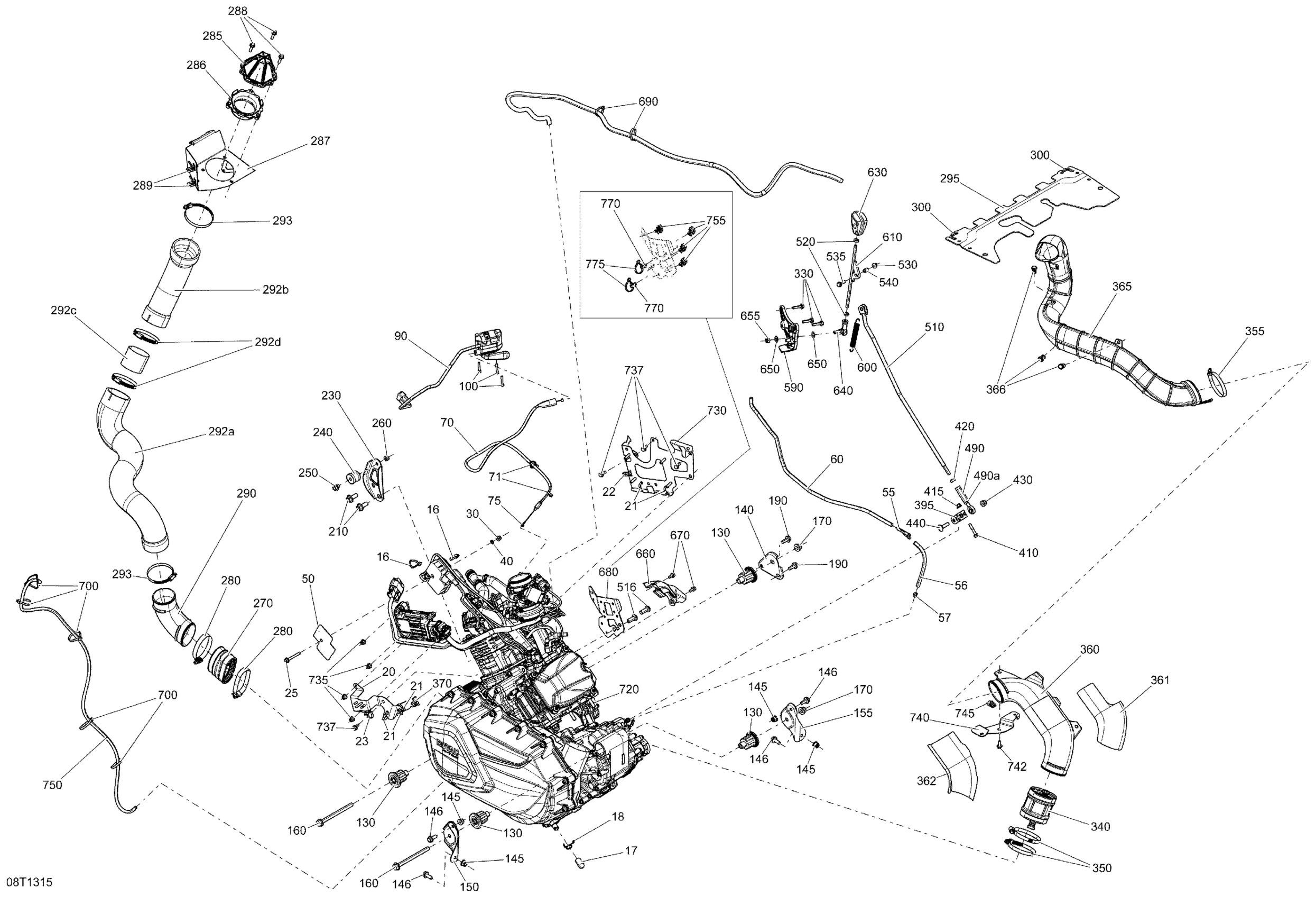

Can-Am Outlander 1000EFI XMR, 2013 Engine And Engine Support Diagram

#

Description
Price

16

Tie-Rap 180 mm

414115200

$0.09

17

Plug

707001185

$1.04

18

Retainer Clip

707800506

$10.51

20

PROTECTOR CONNECTOR - Call your local BRP dealership

707001204

Unavailable

21

Tie-Rap 180 mm

414115200

$0.09

22

Tie-Rap 173 mm

293750009

$0.85

23

Tie-Rap Clip

710002896

$3.93

25

Hex. Flange Screw M6 X 50

207665044

$3.38

30

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

40

External Serrated Lock Washer 6 mm

234461608

$0.92

50

Insulator Pad

710000073

$10.30

55

Y-Fitting

293710059

$8.19

56

Polyurethane Hose 10000Mm Long

219704410

$46.12

57

Clamp, Oetiker

293650195

$1.00

60

Polyurethane Hose 10000Mm Long

219704410

$46.12

70

Throttle Cable

707000955

$12.34

71

Tie-Rap 180 mm

414115200

$0.09

75

Cable Guide

707000434

$10.21

90

Throttle Handle | 4X4

707000595

$69.37

100

Socket Head Screw M5 X 25

205052588

$1.56

130

Vibration Damper

707001169

$38.03

140

Engine Support

707003319

$8.21

145

Hex. Elastic Flange Nut M8

233281416

$1.25

146

Hex. Flange Screw M8 X 20

207682046

$1.76

150

LH Rear Engine Bracket

707001191

$8.21

155

RH Rear Engine Bracket

707001192

$8.21

160

Hex. Flange Screw M10 X 125

230602546

$6.08

170

Hex. Flange Elastic Nut M10

233201436

$1.74

190

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.39

210

Hex. Flange Screw M10 X 25

207602544

$1.33

230

Upper Engine Support

707003326

$12.30

240

Rubber Isolator

707000949

$9.00

250

Flange Screw M8 x 10, Scotch Grip

207581046

$3.99

260

Hex. Elastic Stop Nut M8

232581414

$0.47

270

Flexibale Adaptor

707002585

$14.31

280

Norma Clamp

293650091

$4.46

285

Filter CVT

707001130

Unavailable

286

CVT Filter Base

707001171

$8.34

287

CVT Filter Support

707001203

$58.93

288

Hex. Flange Screw M6 X 25

207562544

$1.39

289

Tie-Rap 173 mm

293750009

$0.85

290

CVT Air Inlet

707001087

$38.78

292a

CVT Air Inlet

707001301

$48.48

292b

CVT Air Inlet

707001302

$48.48

292c

Tube

707001263

$9.45

292d

Norma Clamp

293650091

$4.46

293

Norma Clamp

293650091

$4.46

295

Deflector

707001129

$19.37

300

Tie-Rap 180 mm

414115200

$0.09

330

Hex. Flange Screw M6 X 25

207562544

$1.39

340

CVT Air Outlet Adaptor

707001168

$14.27

350

Norma Gear Clamp

293650118

$9.74

355

Norma Clamp

293650091

$4.46

360

Air Outlet

706600019

$37.99

361

Heat Shield

707001205

$8.66

362

Heat Shield

707001206

$8.66

365

AIR OUTLET - Call your local BRP dealership

706600020

Unavailable

366

Tuflok Plastic Rivet

293150230

$1.21

370

Tie Wrap 142 mm

293750002

$0.88

395

Lever

707000911

$18.63

410

Hex. Flange Screw M6 X 35

207663544

$0.74

415

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

420

Hex. Nut M8, LH Threads

250100144

$1.64

430

Hex. Flange Elastic Nut M8

233281414

$1.14

440

Carriage Bolt M8 X 30

207783044

$1.74

490

Ball Joint Ass'y | Includes 55 to 56

707000966

$34.30

490a

Hex. Jam Nut M8

232180600

$0.56

510

Shifter Rod

707002068

$30.57

516

Screw Socket M10 X 25 | Europe

205402556

$3.25

520

Hex. Jam Nut M8

232180600

$0.56

530

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

535

Hex. Flange Screw M6 X 25

207662544

$0.53

540

Bushing

293900019

$7.21

590

Lever Support

707003054

$6.16

600

Spring

707000577

$9.73

610

Shift Arm | Except Europe

707000840

$14.43

630

Lever Trim

707003211

$7.72

640

RH Ball Joint

707001959

$34.30

650

Washer

506151252

$3.01

655

Hex. Elastic Stop Nut M8

232581414

$0.47

660

Cover OPS

707000410

$12.34

670

Hex. Flange Screw M6 X 12

210261250

$1.56

680

CABLE SUPPORT - Call your local BRP dealership

707001248

Unavailable

690

Tie-Rap 180 mm

414115200

$0.09

700

Tie-Rap 180 mm

414115200

$0.09

720

Tie Wrap 142 mm

293750002

$0.88

730

Welded Support

707001498

$76.84

735

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

737

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.56

740

Air Outlet Support

707001262

$7.39

742

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.56

745

Panel Nut M6 X 1.0

250100198

$1.73

750

Polyurethane Hose 10000Mm Long

219704410

$46.12

755

Tie Rap Mount (screwable)

515176795

$4.96

770

Tie-Rap 173 mm

293750009

$0.85

775

Tie-Rap 180 mm

414115200

$0.09
