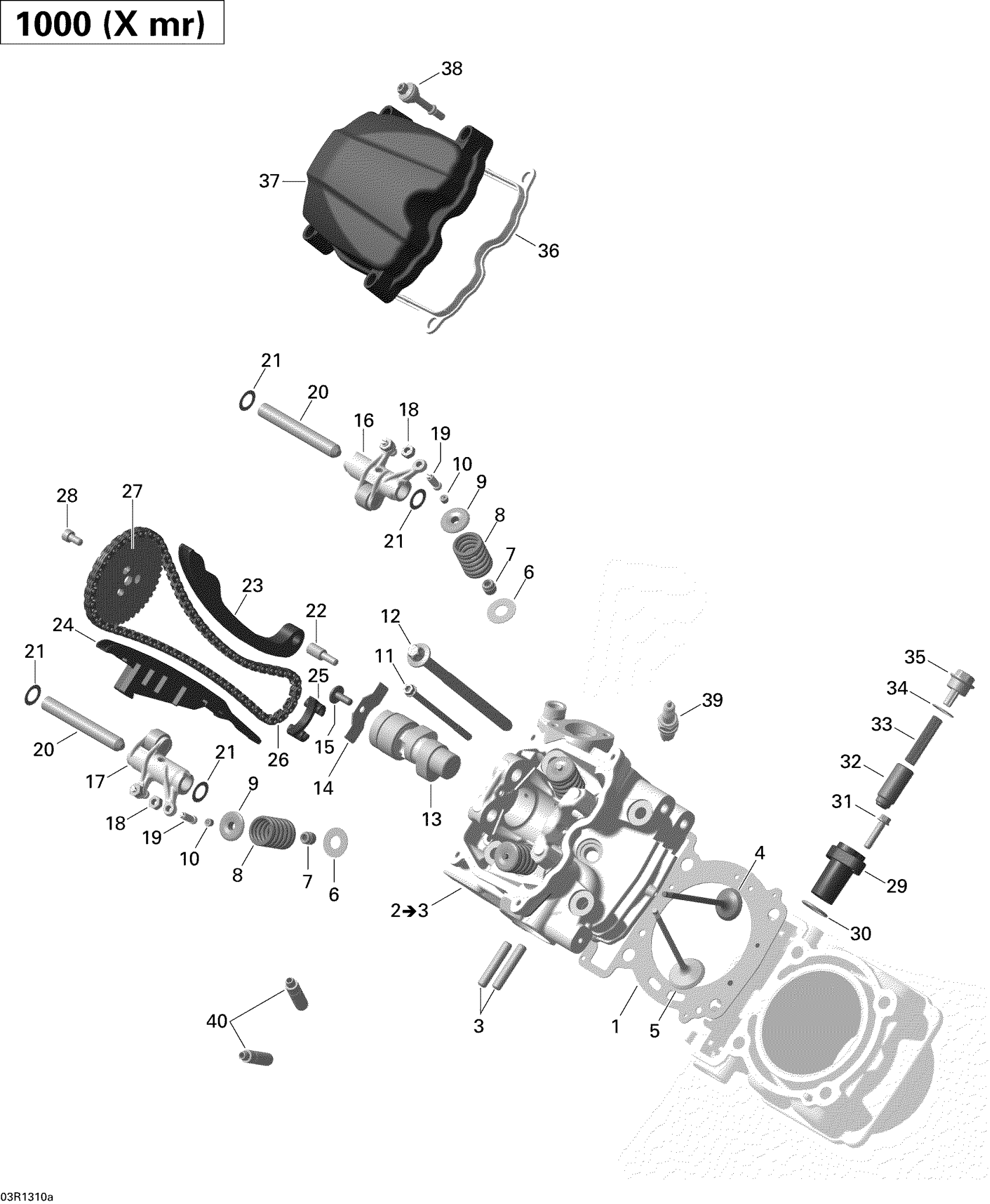

Can-Am Outlander 1000EFI XMR, 2013 Cylinder Head, Front Diagram

#

Description
Price

1

Cylinder Head Gasket | 400HO

420630195

$76.09

2

Cylinder Front Ass'y | Includes 2 to 3

420623064

$457.99

3

Stud M8 x 26

420941014

$10.58

4

Exhaust Valve 27MM

420254368

$66.39

5

Intake Valve 31MM

420254359

$34.30

6

Thrust Washer

420627525

$1.50

7

Valve Stem Seal

420230515

$11.54

8

Valve Spring

420239295

$13.18

9

Valve Spring Retainer

420254132

$13.18

10

Cotter Valve

420254120

$3.88

11

Torx Flange Screw M6 X 105

420440612

$6.11

12

Torx Screw M10 X 159

420441287

$11.81

13

Camshaft

420281803

$187.99

14

Holding Strip

420627743

$17.13

15

Torx Screw M6 X 16

420241529

$1.56

16

Inlet Rocker Arm

420254907

$134.30

17

Exhaust Rocker Arm

420254911

$137.28

18

Hex Nut M6

420242913

$0.51

19

Adjustment Screw M6 X 0.75

420241337

$4.75

20

Pin #12, Small, M6 X 90

420229712

$14.90

21

Shim

420944382

$3.88

22

Bearing Screw M6

420240943

$4.16

23

Chain Tension Guide

420436019

$56.69

24

Chain Guide

420236583

$8.24

25

Chain Guide

420236351

$13.70

26

Silent Chain

420297068

$85.04

27

Timing Gear 42T

420254438

$17.13

28

Allen Screw M6 X 12

420840032

$3.61

29

Chain Tensioner Housing

420236510

$10.76

30

O-Ring

420430373

$2.63

31

Torx Flange Screw M6 X 25

420641238

$2.68

32

Chain Tensioner Plunger

420236521

$14.04

33

Spring

420238120

$7.01

34

O-Ring

420250890

$2.50

35

Plug Screw

420641150

$7.01

36

Gasket

420630260

$8.09

37

Valve Cover

420610393

$25.34

38

Hex Screw M6 X 30

420440568

$7.10

39

Spark Plug, NGK DCP-R8E

715900637

$5.66

40

Valve Guide

420254374

$28.99
