Description

Price

2

Socket Screw M10 x 30 | XT

205003044

$2.61

3

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.56

4

Hex. Flange Screw M8 X 25, Scotch Grip

207582544

$1.68

5

Hex. Flange Screw M6 X 16

207661654

$1.74

6

Hex. Flange Screw M6 X 20

207662084

$0.83

7

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$1.74

8

Hex. Flange Screw M6x70, Scotch Grip

207567044

$1.74

9

Hex. Flange Screw M8 X 20

207682044

$0.92

10

Hex. Flange Screw M8 X 35

207683534

$1.74

11

Carriage Bolt M6 X 20 | DS 650 X

207762044

$1.26

12

Carriage Bolt M6 X 35

207763554

$1.70

13

Carriage Bolt, M8 X 20

207782044

$1.56

14

Flat Washer

224061201

$1.11

23

Hex. Flange Elastic Nut M10

233201434

$1.63

25

Flange Elastic Nut M6

233261434

$3.61

27

Hex. Flange Elastic Nut M8

233281434

$1.74

28

Flat Washer 6 mm

234062410

$0.64

29

Hex. Screw M8 X 20

236282084

$1.48

31

Panel Nut M6 X 1.0

250100198

$1.73

32

Screw M4 X 16

250000725

$2.87

33

Torx Screw M6 X 20

250000722

$1.34

34

Torx Screw M8 X 30

250000886

$1.74

35

Plastite Screw Type K-40, M4 X 25

250000101

$2.87

36

Stainless, Torx Screw M6 X 30

250000842

$1.74

37

Torx Screw M6 X 35

250000541

$1.74

39

Elastic Nut Housing M8 | Included 10a6 to 10a6a

269501943

$5.41

40

Tuflok Plastic Rivet

293150230

$1.21

41

Rubber Cover

293250242

$5.38

42

Threaded Insert M6 X 1.0

250100242

$2.54

43

Rubber Bumper

293830005

$5.33

45

Edge Clip

517302785

$0.70

46

Red Reflector

705011221

$12.32

47

Grommet

705003264

$3.43

49

RH Step

705007039

$119.97

50

LH Step

705007040

$92.28

51

Yellow RH Front Fender Kit | Includes 3 to 3a, Yellow

715001510

$189.97

51

Red, RH Front Fender Kit | Includes 3 to 3a, Red North America

715001512

$189.97

51

CAMO RH FRONT FENDER KIT - Call your local BRP dealership | Includes 3 to 3a, Camo

715001516

$683.82

51

Magnesium RH Front Fender Kit | Includes 3 to 3a, Magnesium

715001518

$379.97

51

BLACK RH FRONT FENDER KIT - Call your local BRP dealership | XTP Model

715001757

$419.97

52

Yellow LH Front Fender Kit | Includes 2 to 2b, Yellow

715002180

$189.97

52

Red, LH Front Fender Kit | Includes 2 to 2b, Red North America

715002182

$189.97

52

CAMO LH FRONT FENDER KIT - Call your local BRP dealership | Includes 2 to 2b, Camo

715002183

$683.82

52

Magnesium LH Front Fender Kit | Includes 2 to 2b, Magnesium

715002179

$379.97

52

Black LH Front Fender Kit | XTP Model

715002181

$379.97

53

CAMO RH REAR FENDER KIT - Call your local BRP dealership | Includes 7 to 7a, Camo

705005227

$626.12

53

Pure Magnesium, RH Rear Fender | Includes 7 to 7a, Magnesium North America

705011961

$379.97

53

RH REAR FENDER KIT, MAGNESIUM - Call your local BRP dealership | Int'l

715001872

Unavailable

53

Yellow RH Rear Fender Kit

715001820

$128.43

53

RH Rear Fender Kit, Yellow | Includes 7 to 7a, Yellow

715001821

$128.43

53

Red, RH Rear Fender Kit

715001823

$128.43

53

RH REAR FENDER KIT, RED - Call your local BRP dealership | Includes 7 to 7a, Red North America

715001833

$161.51

53

Black RH Rear Fender Kit | XTP Model

715001836

$379.97

53

RH REAR FENDER KIT, BLACK - Call your local BRP dealership | XTP Model, Europe

715001837

$569.20

54

Yellow LH Rear Fender Kit | Includes 6 to 6c, Yellow

715001858

$128.43

54

LH Rear Fender Kit, Yellow | Europe

715001860

$128.43

54

CAMO LH REAR FENDER KIT - Call your local BRP dealership

715001862

$683.82

54

Red, LH Rear Fender Kit | Includes 6 to 6c, Red North America

715001864

$128.43

54

MAGNESIUM LH REAR FENDER KIT - Call your local BRP dealership | Includes 6 to 6c, Magnesium

715001866

$655.35

54

LH Rear Fender Kit, Magnesium | Europe

715001868

Unavailable

54

BLACK LH REAR FENDER KIT - Call your local BRP dealership | XTP Model

715001875

$655.35

54

LH REAR FENDER KIT, BLACK - Call your local BRP dealership | XTP Model, Europe

715001877

$597.66

55

Engine Cover

705003444

$20.74

56

Dash Support Kit

715001552

$50.74

57

Yellow, LH Lateral Panel | Yellow

705003446

$55.35

57

Viper Red, LH Lateral Pannel | Viper Red

705005237

$69.20

57

PANEL_BODY LH B-005 - Call your local BRP dealership | Camo

705005238

Unavailable

57

Pure Magnesium, LH Lateral Panel | Pure Magnesium

705011909

$286.12

58

Yellow, RH Lateral Panel | Yellow

705009019

$55.35

58

Viper Red, RH Lateral Panel | Viper Red

705009115

$55.35

58

PANEL_BODY RH B-005 - Call your local BRP dealership | Camo

705009118

Unavailable

58

RH.PANEL - Call your local BRP dealership | Pure Magnesium

705009308

$286.12

59

Fascia

705012822

$111.51

64

Front Bumper Support

705016893

$324.58

67

LH Support

705007277

$28.43

68

RH Support

705007278

$28.43

69

Cargo Rack Center Support

705006812

$59.97

70

Deflector_Body Panel Kit

715007008

$51.51

77

Front Bumper | XT

705005018

Unavailable

79

LH Support Luggage Rack Ass'y | Includes 33 to 35

705011553

$18.43

79

RH Support Luggage Rack Ass'y | Includes 36 to 38

705011555

$20.74

80

Cap (Front LH) (Rear RH) | XT

705004409

$7.60

81

Cap (Front RH) (Rear LH) | XT

705004410

$7.60

85

Ring

705004497

$3.98

86

Lugage Rack Moulding

705004523

$23.05

87

Luggage Rack Kit

715001852

$212.28

88

LH Front Wheel Arch Protector

705017001

$15.22

89

RH Front Inner Fender

705011463

$15.22

90

Lower Fender Support

705004565

$6.45

91

RH Rear Inner Fender

705011462

$20.74

92

LH Rear Inner Fender

705013111

$20.74

95

Black Bumper | XT

705005019

Unavailable

100

Bracket Cover | XT

705004987

$4.98

101

Shiftgate Trim | Europe

705005003

$8.46

102

LH Bracket | XT

705005094

$7.37

103

RH Bracket | XT

705005095

$7.37

104

LH Rear Bracket | XT

705008164

$34.58

105

RH Rear Bracket | XT

705008165

$34.58

107

LH Structural Footboard

705011540

$115.35

107

RH Structural Footboard

705011542

$98.43

108

Shifter Gate | 800 North America, 800 International

705011546

$27.66

109

Shifter Gate | 800 Europe

705011547

$27.66

112

Sectional Bent Tube

705016640

$35.35

113

Bent Sectional Tube

705016092

$39.20

114

Dash Kit

715006098

$29.20

115

Protective Plate Kit

715002374

$64.58

117

Front Guard Plate | North America, International

705006299

$47.66

118

Front Guard Plate | Europe

705006300

$40.74

119

Gauge Support

705006321

$41.51

119

Gauge Support | XTP Model

705006322

$41.51

149

LH Rear Facia | North America, International

705006643

$14.71

149

LH Rear Facia | Europe

705006651

$14.71

150

RH Rear Facia | North America, International

705006650

$14.71

150

RH Rear Facia | Europe

705006652

$14.71

152

Yellow Hood Kit | Yellow

715001541

$106.89

152

Red, Hood Kit | Viper Red

715001543

$106.89

152

CAMO HOOD KIT - Call your local BRP dealership | Camo

715001547

$356.89

152

Magnesium Hood Kit | Pure Magnesium

715001549

$160.74

153

Push Nut

732610072

$1.72

25a

Flange Elastic Nut M5

233251434

$1.66

30a

Screw K40 X 10

241140060

$1.25

30b

Screw M4 X 16

250000725

$2.87

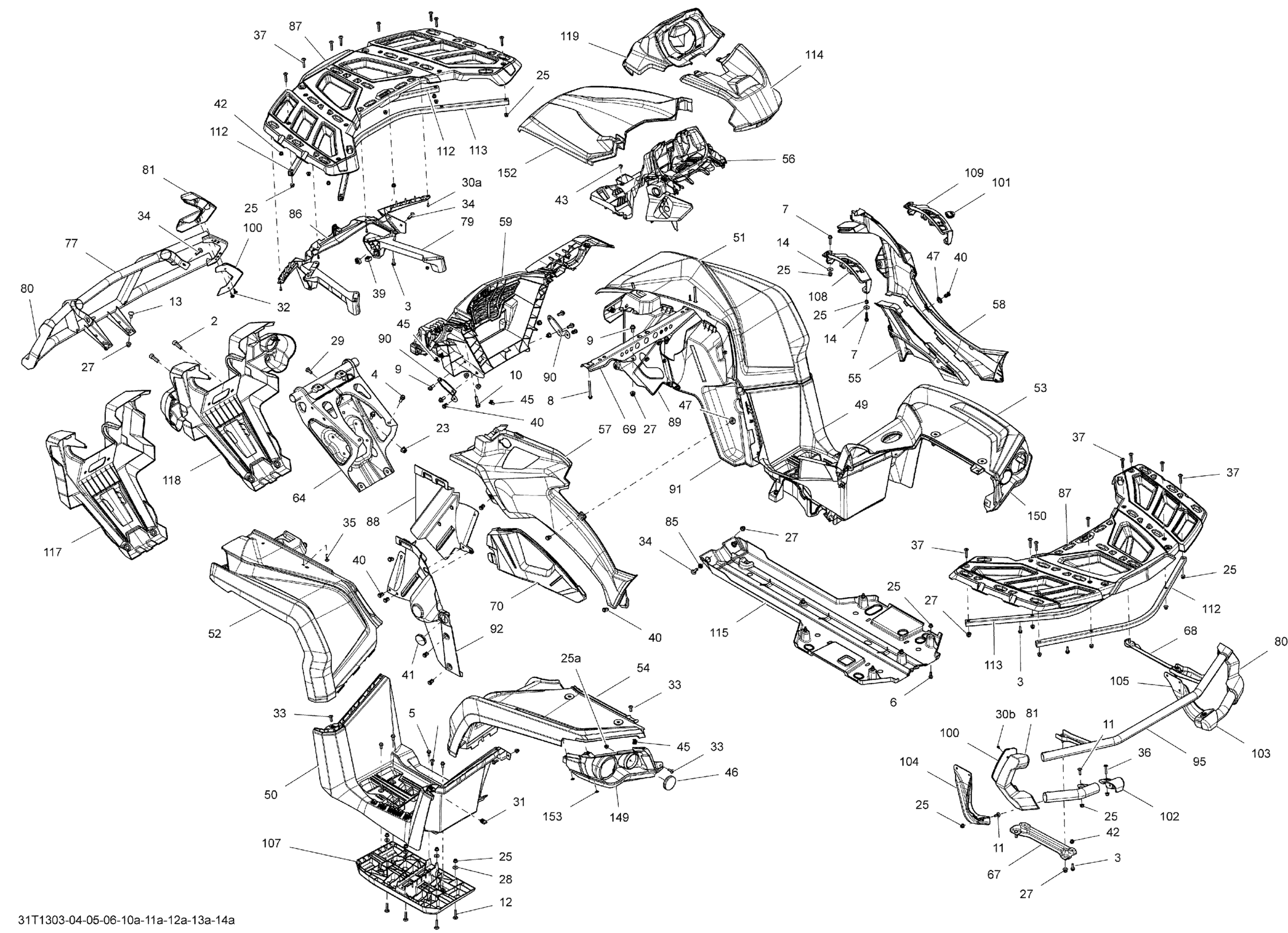

Can-Am Outlander 1000EFI, DPS, XT & XT-P, 2013 Body And Accessories Diagram
