Description

Price

1

Hex. Screw M8 X 85

250001035

$1.46

2

Hex. Flange Screw M10 X 55

207605546

$1.74

3

Hex. Flange Screw M10 X 6

207606046

$3.38

4

Hex. Flange Screw M10 X 65

207606536

$3.61

5

Hex. Flange Elastic Nut M10

233201414

$1.26

7

Hex. Flange Elastic Nut M10

233201436

$1.74

8

Hex. Flange Elastic Nut M6

233261494

$1.26

9

Hex. Flange Elastic Nut M16

233211466

$1.53

11

Hex. Flange Elastic Nut M8

233281434

$1.74

12

Flat Washer M8

234081430

$1.74

13

Torx Screw M6 X 20

250000722

$1.34

14

Grease Fitting

250000315

$4.82

15

Flat Washer M17

250200112

$6.34

16

Seal

293200144

$4.52

17

Grease Fitting 90°

293550056

$1.04

18

Spring Guide

503187500

$7.37

18

Spring Guide

503187500

$7.37

19

Adjustment Cam

505073625

$11.82

19

Adjustment Cam

505073625

$11.82

24

Ball Bearing

293350145

$12.54

25

Spacer

706002259

$26.09

26

Swaybar

706000988

$117.13

82

REAR SHOCK - Call your local BRP dealership | XXC

706000868

Unavailable

82a

Bushing Sleeve | XTP

706201586

$29.82

82b

Bushing Sleeve | XTP

706201585

$29.82

82c

Bushing | XTP

706201648

$12.72

82d

O-RING BUSHING - Call your local BRP dealership | OUT XTP

715500360

$9.60

82e

Interior Bushing | OUT XTP

715500361

$29.82

98

Not Available As Spare Part - Friction Washer

Unavailable

107

Not Available As Spare Part - Friction Washer

Unavailable

114

Rear Shock

706000958

$170.12

114

Rear Shock

706000958

$170.12

117

Black Spring

706000963

$96.24

117

Black Spring

706000963

$96.24

123

LH PROTECTOR - Call your local BRP dealership

706001009

Unavailable

124

RH PROTECTOR - Call your local BRP dealership

706001010

Unavailable

126

Sway Bar Linkage

706001020

$11.72

127

Axial Pivot M16

706001664

$64.90

128

Black LH Swing Arm

706001860

$276.09

128

Black RH Swing Arm

706001861

$276.09

131

Stabilizer Bar Bushing

706004640

$7.28

132

Bushing Holder

706001099

$29.82

134

Spacer

706001282

$10.37

135

SPRING COMPRESSION B-160 PAINTED - Call your local BRP dealership | OUT XTP

706002468

Unavailable

136

Suspension Arm Bushing Kit | Includes 4

703500875

$13.76

138

Cap

706200785

$4.28

139

Spring Stopper

706200881

$10.30

140

Suspension Arm Bushing Kit | Includes 4

703500875

$13.76

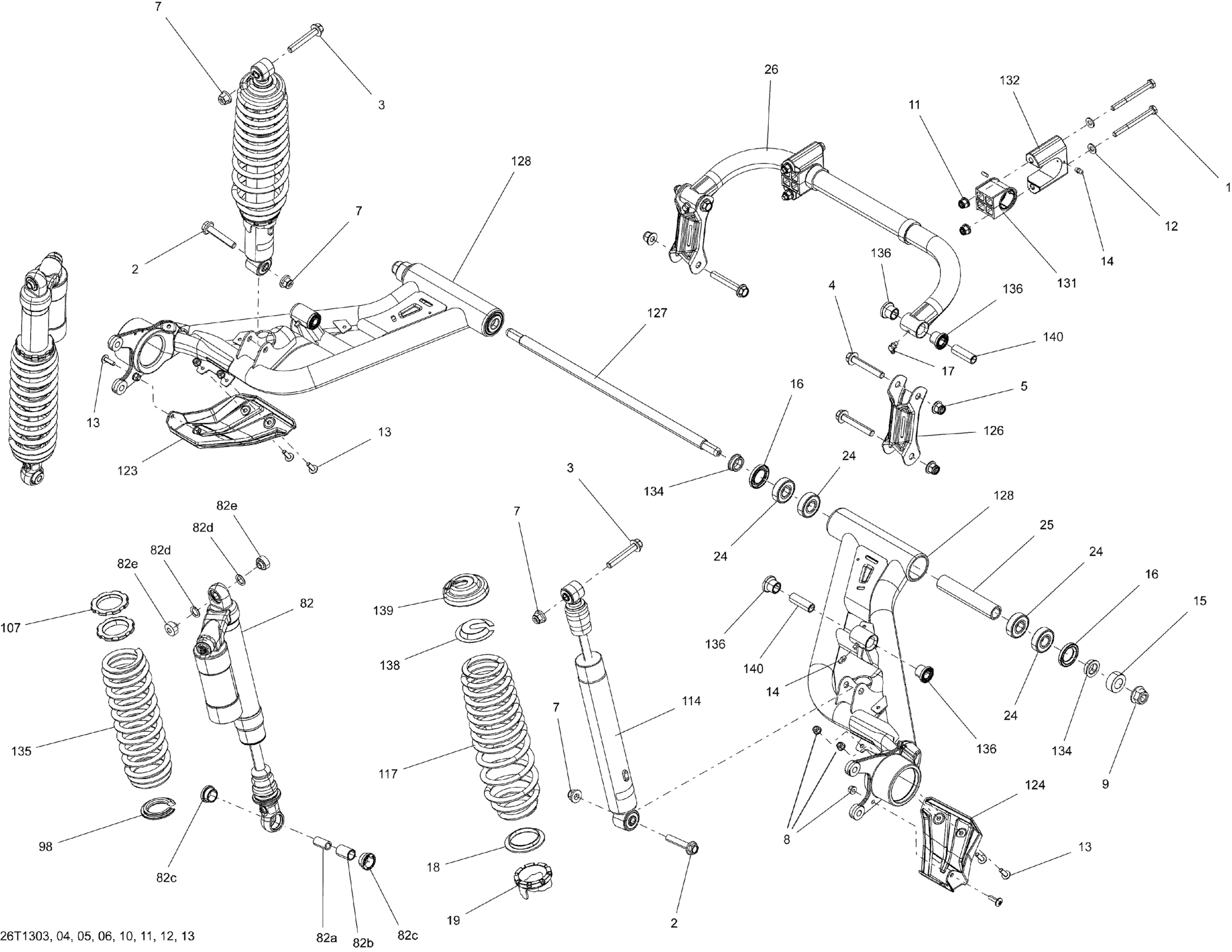

Can-Am Outlander 1000EFI, DPS, XT & XT-P, 2013 Rear Suspension Diagram

Hex. Screw M8 X 85

Hex. Flange Screw M10 X 55

Hex. Flange Screw M10 X 6

Hex. Flange Screw M10 X 65

Hex. Flange Elastic Nut M10

Hex. Flange Elastic Nut M10

Hex. Flange Elastic Nut M6

Hex. Flange Elastic Nut M16

Hex. Flange Elastic Nut M8

Flat Washer M8

Torx Screw M6 X 20

Grease Fitting

Flat Washer M17

Seal

Grease Fitting 90°

Spring Guide

Spring Guide

Adjustment Cam

Adjustment Cam

Ball Bearing

Spacer

Swaybar

REAR SHOCK - Call your local BRP dealership | XXC

Bushing Sleeve | XTP

Bushing Sleeve | XTP

Bushing | XTP

O-RING BUSHING - Call your local BRP dealership | OUT XTP

Interior Bushing | OUT XTP

Not Available As Spare Part - Friction Washer

Not Available As Spare Part - Friction Washer

Rear Shock

Rear Shock

Black Spring

Black Spring

LH PROTECTOR - Call your local BRP dealership

RH PROTECTOR - Call your local BRP dealership

Sway Bar Linkage

Axial Pivot M16

Black LH Swing Arm

Black RH Swing Arm

Stabilizer Bar Bushing

Bushing Holder

Spacer

SPRING COMPRESSION B-160 PAINTED - Call your local BRP dealership | OUT XTP

Suspension Arm Bushing Kit | Includes 4

Cap

Spring Stopper

Suspension Arm Bushing Kit | Includes 4
