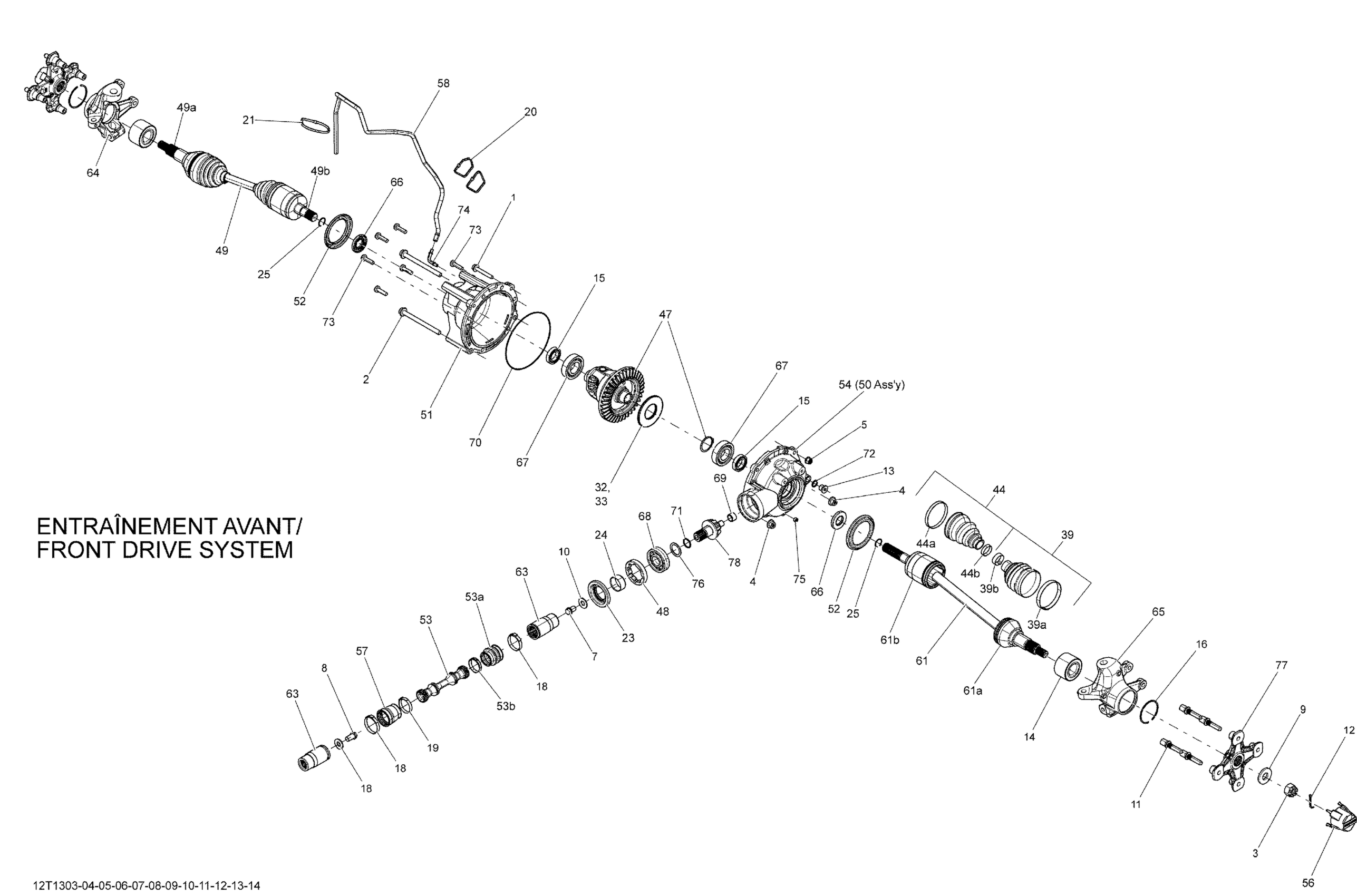

Can-Am Outlander 1000EFI, DPS, XT & XT-P, 2013 Drive System, Front Diagram

#

Description
Price

1

Hex. Flange Screw M8 X 55

207685544

$4.41

2

Hex. Flange Screw M10 X 125

230602546

$6.08

3

Hex. Flange Castellated Nut M18

232291413

$2.82

4

Hex. Flange Elastic Nut M10

233201436

$1.74

5

Hex. Flange Elastic Nut M8

233281414

$1.14

7

HEX FLANGED SCREW M12 X 16, SCOTCH GRIP - Call your local BRP dealership

250000378

Unavailable

8

Hex Flange Screw M12 X 20

250001042

$1.56

9

Conical Spring Washer M18

250200171

$5.28

10

Flat Washer M12

250200102

$1.74

10

Flat Washer M12

250200102

$1.74

11

Wheel Stud | Tightening Torque: See Bulletin ATV 2020-4

250300643

$4.62

12

Cotter Pin

250400036

$1.74

13

Fill Level Plug | 4X4

705500504

$7.61

14

Ball Bearing

293350150

$52.99

15

Ball Bearing | 4X4

293350044

$30.74

16

Circlip

293370019

$4.98

18

Oetiker Gear Clamp 44.0MM | 4X4

293650138

$8.57

19

Oetiker Gear Clamp

293650199

$7.16

20

Tie-Rap 180 mm

414115200

$0.09

21

Tie Wrap 368 mm

293750008

$0.85

23

Oil Seal | 4X4

705401481

$18.43

24

Wear Ring | 4X4

705400036

$25.35

25

Circlip Joint | Not shown

705401349

$5.38

32

Shim | 4X4

705401604

$55.35

33

Shim | 4X4

705401604

$55.35

39

Boot Kit, Wheel Side

705401345

$41.51

39a

Oetiker Clamp

715900282

$4.39

39b

Oetiker Clamp, Small

715900283

$4.39

44

Boot Kit, Differential Side

705401346

$41.51

44a

Oetiker Clamp, Large

715900284

$4.39

44b

Oetiker Clamp, Small

715900261

$4.39

47

DIFFERENTIAL KIT - Call your local BRP dealership

703500872

Unavailable

48

Nut | 4X4

705401603

$36.89

49

LH Front - Premium CV Axle | Includes 43 to 51

705401115

$233.82

49a

CV Joint

705401344

$253.82

49b

LH Plunging Joint

705401350

$249.20

50

Front Differential | XT, XT-P, Includes 9 to 29

703500908

$1,684.58

51

FRONT COVER - Call your local BRP dealership

705400762

Unavailable

52

Wear Sleeve

705400780

$7.28

53

Propeller Shaft | Includes 1 to 2

705400913

$203.05

53a

Rubber Boot Kit | 4X4 / Includes 3 to 5

703500255

Unavailable

53b

Oetiker Gear Clamp, 36.5-706R

509000529

$10.14

54

FRONT COVER - Call your local BRP dealership

705400761

$139.97

56

Wheel Cap

705400928

$11.06

57

Rubber Boot

705401093

$4.60

58

Polyurethane Hose 10000Mm Long

219704410

$46.12

61

RH Front - Premium CV Axle

705401116

$233.82

61a

CV Joint

705401344

$253.82

61b

RH Plunging Joint

705401348

$249.20

63

Front Bushing Shaft Kit | 4X4

703500678

$104.58

64

LH Knuckle

705403307

$175.35

65

RH Knuckle

705403308

$175.35

66

Gasket | 4X4

705401618

$17.66

67

Ball Bearing | 4X4

705401606

$49.20

68

Ball Bearing | 4X4

705500260

$30.74

69

Needle Bearing | 4X4

705500261

Unavailable

70

Seal | 4X4

705500265

$16.12

71

O-Ring | 4X4

705500267

$6.25

72

Copper Washer | 4X4

705500506

$0.36

73

Screw | 4X4

705401601

$9.29

74

VENT VALVE - Call your local BRP dealership | 4X4

705500893

$14.37

75

Drain Plug | 4X4

705500894

$11.06

76

Pinion Gear Shim 1.67 mm

705502061

$16.12

76

Pinion Gear Shim

705501162

$15.17

77

Wheel Hub Ass'y

705501716

$129.20

78

10 TEETH PINION - Call your local BRP dealership

705501588

Unavailable
