1980 Suzuki OR50 Rear Combination Lamp Diagram

← All diagrams

Find the part on the Rear Combination Lamp diagram for your 1980 Suzuki OR50, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

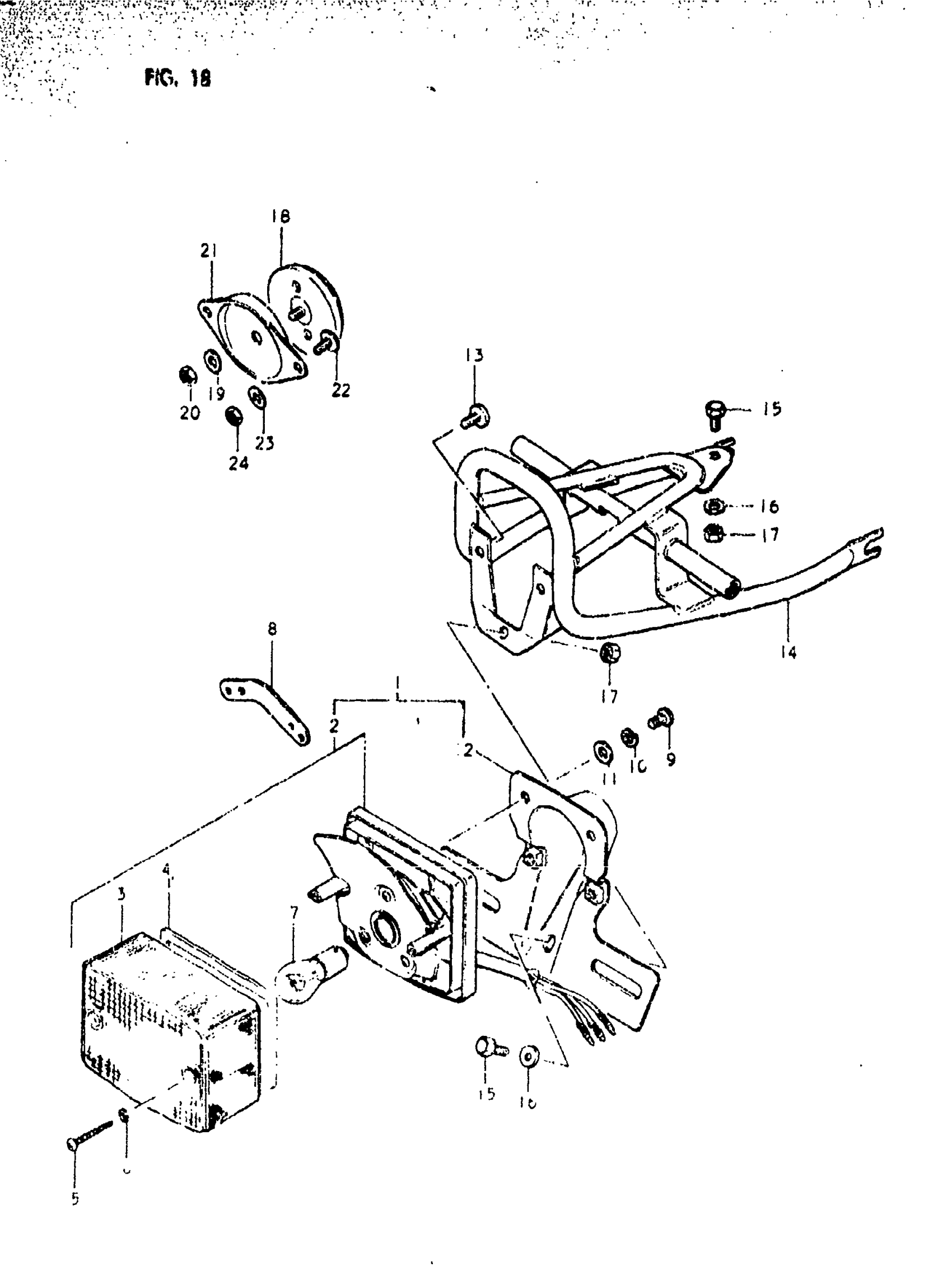

1980 Suzuki OR50 Rear Combination Lamp Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

LAMP UNIT, REAR COMBINATION | N,T; Includes Item(s) 2 - 11 This part replaces 35710-46230.

35720-46230

1
Out of stock

2

LAMP UNIT, REAR COMBINATION | N,T

35720-46230

1
Out of stock

3

LENS | N,T

35712-48510

1
Out of stock

4

GASKET | N,T

35713-48510

1
Out of stock

5

SCREW | N,T This part replaces 35625-49030.

03211-04306

2
Out of stock

6

GASKET | N,T

35627-43010

2

$2.65

In stock

7

BULB (6V, 32/3CP) | N,T

09471-06030

1
Out of stock

8

PLATE | N,T

35716-48510

1
Out of stock

9

SCREW | N,T This part replaces 02112-05128.

02112-05127

2
Out of stock

10

LOCK WASHER | N,T This part replaces 08321-21058.

08321-0105A

2
Out of stock

11

2

$1.97

In stock

12

BRACKET | N,T

35726-46230

1
Out of stock

13

SCREW | N,T This part replaces 02112-06085.

02112-06087

2
Out of stock

14

HOLDER | N,T

35780-46210

1
Out of stock

15

BOLT | N,T This part replaces 01107-06128.

01500-06127

2
Out of stock

16

.WASHER | N,T This part replaces 08322-21065.

08322-0106B

2
Out of stock

17

.NUT | N,T This part replaces 08310-11068.

08310-00067

2
Out of stock

18

REFLECTOR ASSY, RR SIDE | N,T This part replaces 35970-45611.

35970-30910

1
Out of stock

19

WASHER | N,T This part replaces 08322-21058.

08322-01057

1
Out of stock

20

NUT | N,T This part replaces 08310-22058.

08310-00057

1
Out of stock

21

BRACKET | N,T

35620-46200

1
Out of stock

22

SCREW | N,T

02142-05127

2
Out of stock

23

2

$1.97

In stock

24

NUT | N,T This part replaces 08310-22058.

08310-00057

2
Out of stock
