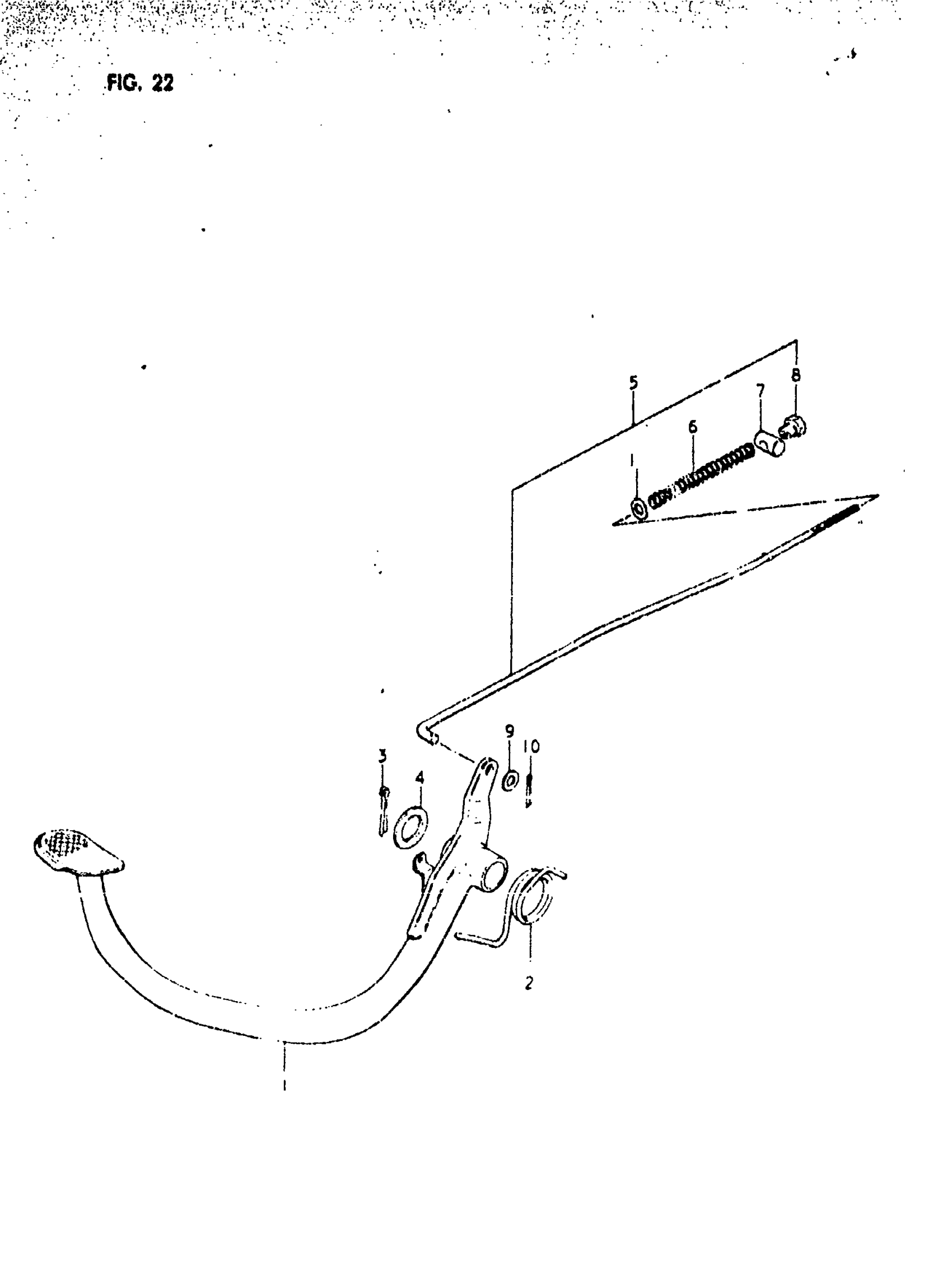

Suzuki OR50 (1980) BRAKE PEDAL Diagram

#

Description
Price

1

PEDAI, BRAKE | N,T

43110-46200

Unavailable

2

SPRING | N,T

09448-31013

Unavailable

3

PIN | N,T This part replaces 04111-30308.

04111-3030A

$1.41

4

WASHER (15.5x24x2.3) | N,T

09160-15002

$1.76

5

ROD ASSY, BRAKE | N,T; Includes Item(s) 6 - 11

43300-46200

Unavailable

6

SPRING | N,T

09440-09004

$2.06

7

PIN | N,T

09209-11002

$2.17

8

.NUT | N,T This part replaces 09150-06001.

09150-06010

$2.88

9

WASHER | N,T This part replaces 08322-21058.

08322-01057

$1.93

10

COTTER PIN | N,T This part replaces 04111-20208.

04111-2020A

$1.25

11

WASHER | N,T This part replaces 08322-21068.

08322-01067

$1.94
