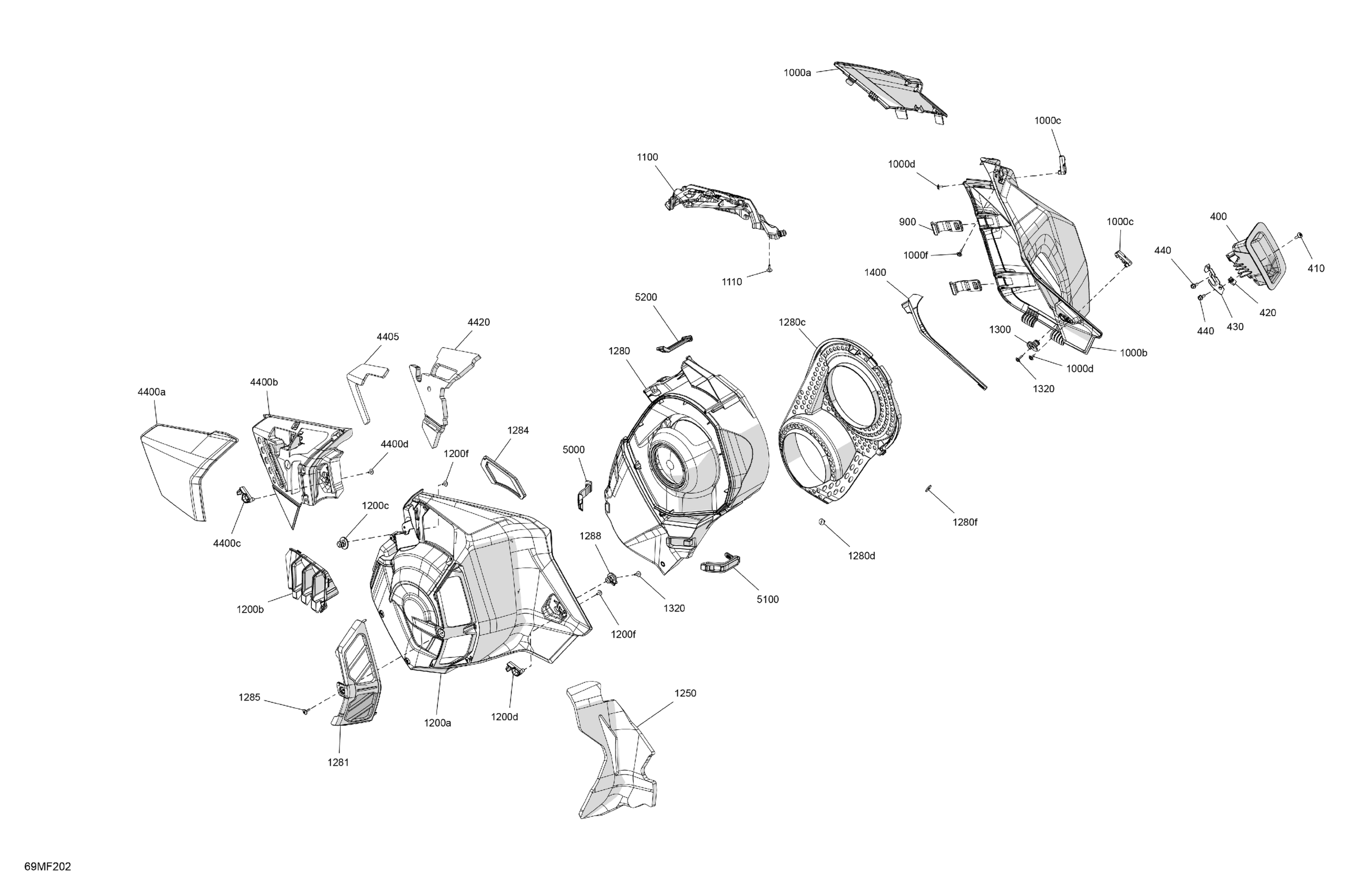

Ski-Doo SUMMIT - Adrenaline with Enduro Package - 600R E -TEC - CGTA - Monument Gray - 16X154X2.5PLF Track, 2026 Body - Side Panels Diagram

Description

Price

400

RH Console

517306759

$33.82

410

Torx Truss M5 X 20

250000586

$3.61

420

Panel Nut M5 X 0.8

250000958

$3.48

430

Rope Guide

517306315

$5.59

440

Hex. Flange Screw M6 X 12

210261250

$1.56

900

Front Soft Latch

517308267

$12.40

1000a

Monument Gray, RH Front Panel

517309233

$189.20

1000b

RH Rear Panel

517308535

$203.05

1000c

RH Latch

517308587

$13.95

1000d

Plastite Screw M4 X 10

250000805

$1.74

1000f

Screw M4 X 16

250000725

$2.87

1100

RH Hood Grille

517308132

$27.66

1110

Screw M4 X 16

250000725

$2.87

1200a

Deep Black, LH Rear Panel

517307954

$50.74

1200b

Deep Black, LH Panel Grille

517308519

$12.71

1200c

Rear Stud

517305985

$15.00

1200d

LH Latch

517308586

$13.95

1200f

Plastite Screw M4 X 10

250000805

$1.74

1250

Bonded Foam

517308747

$13.63

1280

CVT Cover Ass'y | Includes 1280 to 1280f

517309062

$138.43

1280c

Int CVT Cover

417300604

$26.12

1280d

Pop Rivet 3/16" | DS 650 X

293150104

$1.49

1280f

Washer

250200140

$0.83

1281

Filter Grille

517309318

$14.74

1284

Filter Grille

517308716

$15.22

1285

Screw M4 X 16

250000889

$2.46

1288

Lug Angle Short

517308123

$14.55

1300

Rear Stud

517305985

$15.00

1320

Screw M4 X 16

250000725

$2.87

1400

Molded Gasket

517308556

$5.17

4400a

Monument Gray, LH Panel

517309239

$189.20

4400b

LH Lower Panel - Call your local BRP dealership

517308259

$138.43

4400c

LH Latch

517308586

$13.95

4400d

Plastite Screw M4 X 10

250000805

$1.74

4405

Bonded Foam

517308715

$6.77

4420

Bonded Foam

517308763

$13.63

5000

LH Lower Soft Latch

517308518

$3.77

5100

Rear Soft Latch

517309305

$3.92

5200

LH Upper Latch Soft

517308516

$3.77
