Description

Price

1050

Stopper Strap

503195313

$27.66

1060

Washer | Not Shown

503193995

$4.38

1070

Hex. Flange Screw M6 X 1.0 X 30

207663056

$3.61

1080

Hex. Flange Elastic Nut M6

233261466

$1.66

2000

Suspension Arm Ass'y | Includes 2000 to 2000k

503197202

$447.66

2000b

Extended Bushing

503191556

$5.71

2000c

Grease Fitting

408200700

$2.80

2000d

Rocker Weld

503196786

$80.74

2000f

Swivel Bushing

503191555

$5.71

2000g

Bushing

503193037

$15.35

2000h

Bushing | Includes 240d to 240d1

503189282

$4.18

2000j

Hex. Screw M10 X 1.5 X 50

207005044

$3.11

2000k

Elastic Locking Nut M10 X 1.5

233601416

$1.68

2005

Lower Shaft

503196972

$69.97

2010

Upper Axle

503193714

$14.09

2030

Flat Washer

250200143

$2.63

2040

Washer

503191926

$1.57

2050

Hex. Cap Screw M10 X 60

207006056

$6.18

2060

Elastic Locking Nut M10

233601466

$1.74

2080

Washer

250200032

$4.98

2100

Washer

503192496

$0.75

2110

Bolt M10 X 251MM

503193227

$16.12

2120

Flange Elastic Nut M10

233201466

$2.63

3000

Rear Arm Ass'y | Includes 3000 to 3000p

503196758

$276.89

3000b

Bushing

503192767

$15.26

3000c

Swivel Bushing

503191555

$5.71

3000d

Cushion

503191640

$5.71

3000f

Lower Shaft

503196223

$17.66

3000h

Washer

503192496

$0.75

3000j

Socket Head Screw M10 X 35

205503554

$6.18

3000k

Grease Fitting

408200700

$2.80

3000m

LH Cam Adjuster

503191565

$13.95

3000n

RH Cam Adjuster

503191566

$13.95

3000p

E-Circlip

293370013

$0.62

3010

Black, LH Square Spring

503196052

$103.05

3020

Black, RH Square Spring

503196053

$103.05

3070

Black, Wheel Ass'y 180mm | Includes 3070 to 3070b

503194819

$49.97

3070a

Ball Bearing

503193548

$16.89

3070b

Retaining Ring

415129780

$13.88

3071

Spacer

503197282

$11.86

3080

Axle Spring

503189146

$7.54

3100

Link Ass'y | Includes 3100 to 3100f

503195985

$77.66

3100b

Hex. Screw M8

207085056

$2.86

3100c

Washer

503192494

$3.11

3100d

Elastic Flange Nut M8

233281466

$0.83

3100f

Swivel Bushing

503191555

$5.71

3110

Retaining Ring

293370080

$2.12

3170

Flat Washer

250200143

$2.63

3180

Cap Screw Hex. M10 X 40

207204056

$6.18

3190

Pivot Arm Axle

503189156

$20.74

3200

Washer

503192494

$3.11

3210

Bolt M8 X 248mm

503192440

$29.97

3220

Elastic Flange Nut M8

233281466

$0.83

4000

Link Rod

503192465

$50.74

4030

Axle Bar (Long)

503190643

$15.35

4060

Washer

503192494

$3.11

4070

Screw M8 X 90

503193372

$4.28

4080

Elastic Flange Nut M8

233281466

$0.83

4090

Axle Bar

503192555

$11.40

4100

Washer

503192494

$3.11

4110

Flat Washer 8 mm

234082410

$1.11

4120

Hex. Screw M8 X 55

207085556

$1.65

4130

Elastic Flange Nut M8

233281466

$0.83

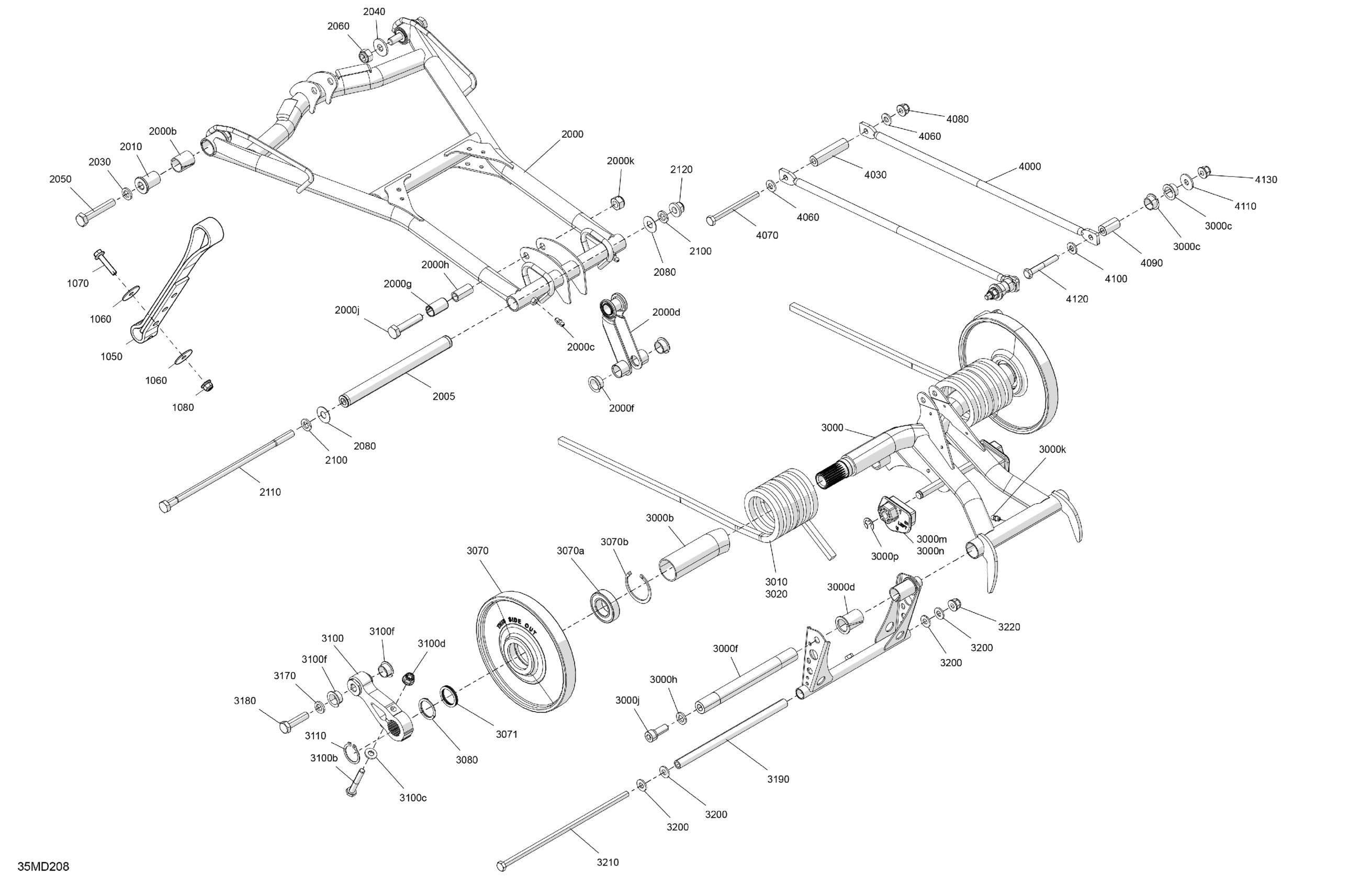

Ski-Doo SUMMIT 850 E-TEC - 154 - HCRN - Black - 154X15X3P4 Track, 2024 Suspension - Rear - Upper Section Diagram
