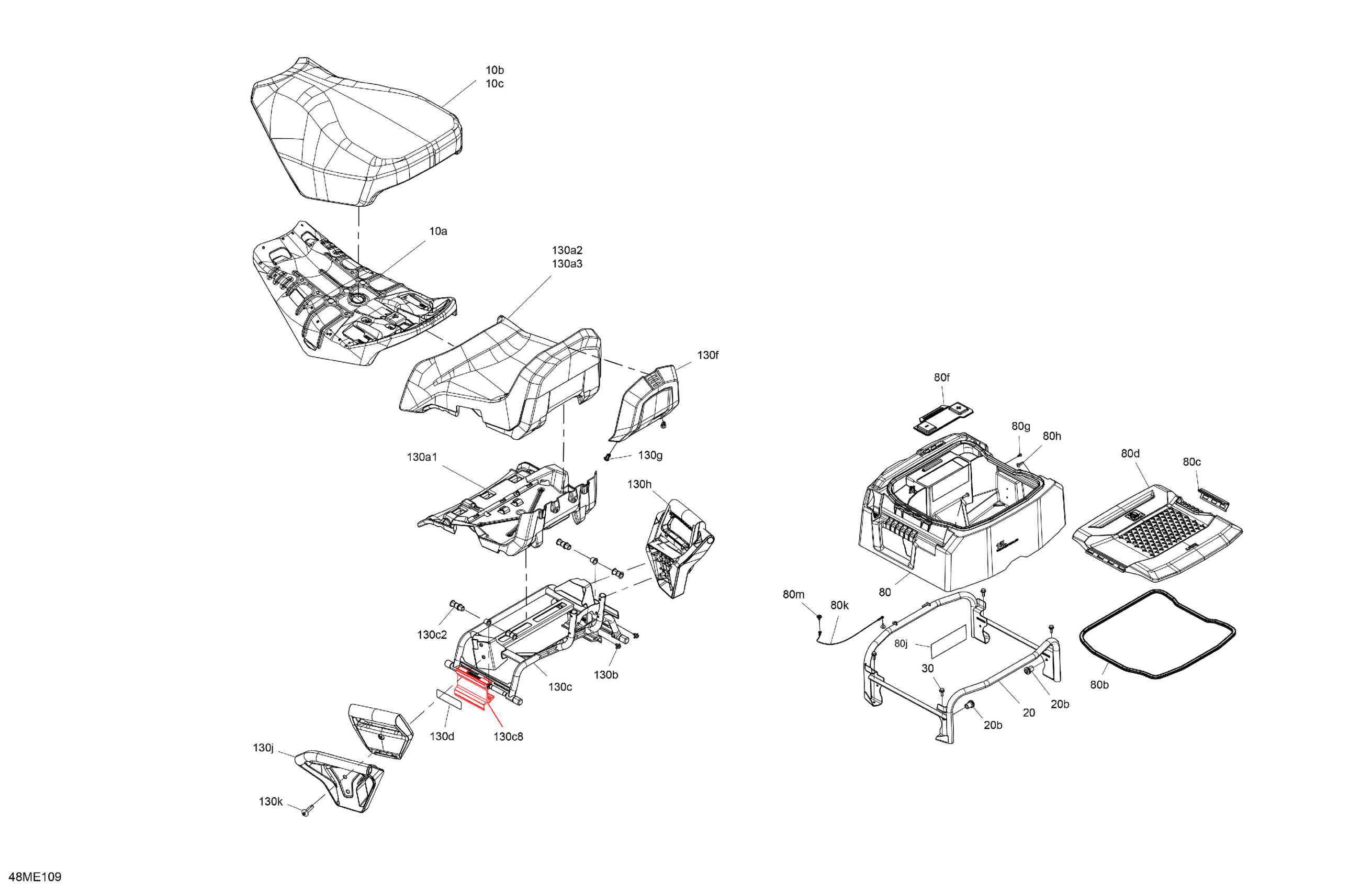

Ski-Doo SKANDIC - 600 ACE - LE - AKSA - Deep Black - 154X20X1.5CST Track - 2025 Body - Seat Diagram

#

Description

Price

10a

Driver Seat Base

510007142

Unavailable

10b

Driver Seat Foam

510006413

Unavailable

10c

Seat Cover

510007570

Unavailable

20

Seat Support Ass'y | Includes 20 to 20b

510007010

Unavailable

20b

Insert M5 X 0.8

293450268

Unavailable

30

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

Unavailable

80

Storage Box Ass'y | Includes 80 to 80m

510007165

Unavailable

80b

Seal, 1PC = 3M

293830188

$37.66

80c

Latch

269502449

Unavailable

80d

Box Cover

511001274

Unavailable

80f

Access Cover

510006789

Unavailable

80g

Torx-Truss Screw K40 X 10

250001034

Unavailable

80h

Torx Screw M5 X 20

250000724

Unavailable

80j

Warning Label

516009465

Unavailable

80k

Retaining Cable

293750092

Unavailable

80m

Plastite Screw M4 X 10

250000805

Unavailable

130a1

Passenger Seat Base

510006410

Unavailable

130a2

Passenger Seat Foam

510006411

Unavailable

130a3

Passenger Seat Cover

510007573

Unavailable

130b

Avdel Rivet

293150027

Unavailable

130c

Passenger Chassis Module Ass'y | Includes 130c to 130c8

510007155

Unavailable

130c2

Cushion

506152520

Unavailable

130c8

Seat Latch

510006994

Unavailable

130d

Warning Label

516009941

Unavailable

130f

Rear Seat Trim

510007866

Unavailable

130g

Tuflok Plastic Rivet

293150230

Unavailable

130h

RH Handle

510006797

Unavailable

130j

LH Handle

510006798

Unavailable

130k

Torx Truss M/S M8 x 35

250000753

$0.91
