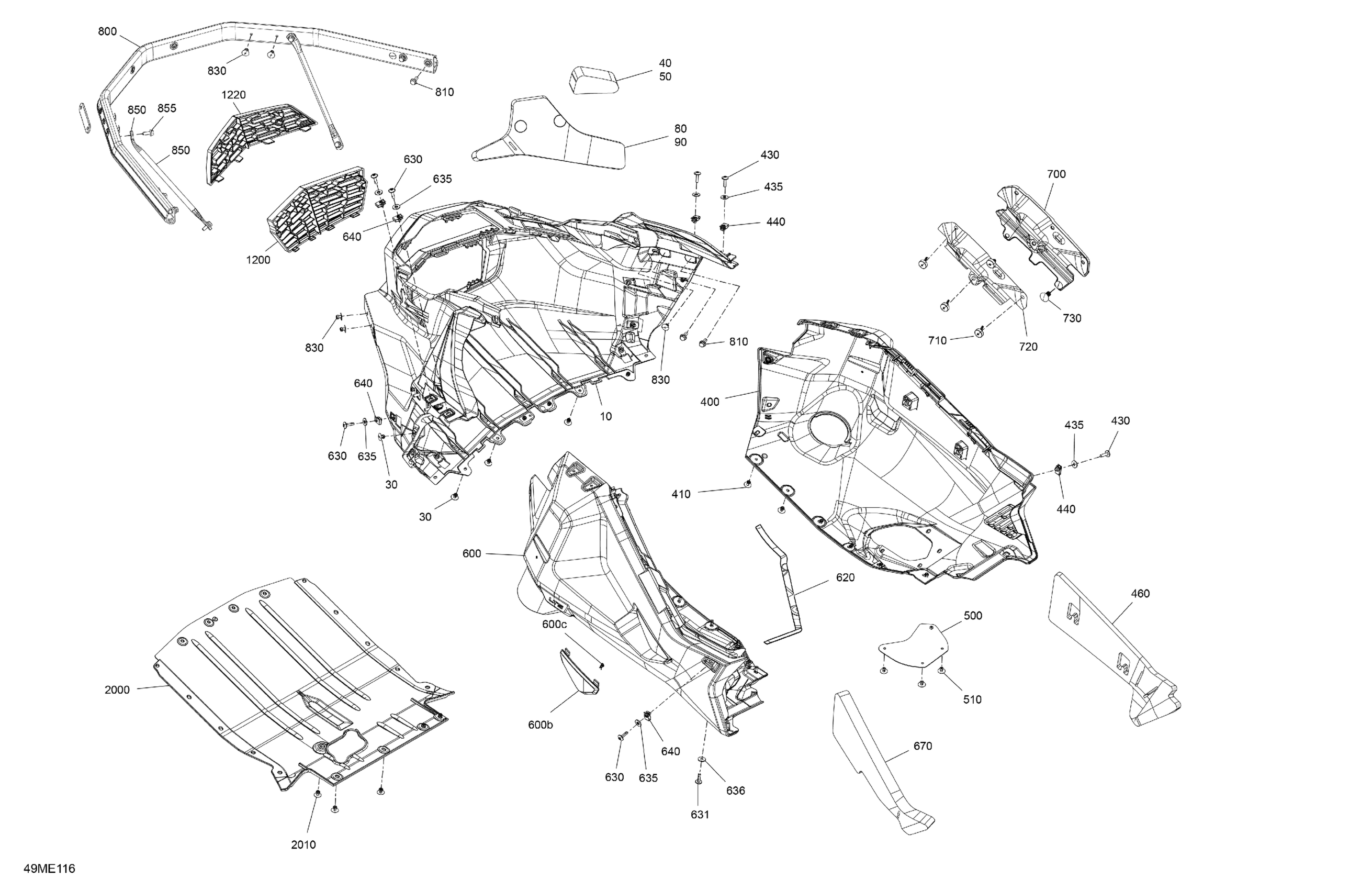

Ski-Doo SKANDIC - 600 ACE - LE - AKSA - Deep Black - 154X20X1.5CST Track - 2025 Body - Bottom Pan Diagram

Description

Price

Deep Black, Front Bottom Pan

502007725

$106.12

Black, Pop Rivet 3/16 X ,550

293150292

Unavailable

RH Upper Front Bottom Pan Foam

502007937

$2.12

LH Upper Front Bottom Pan Foam

502007938

$2.12

RH Front Lower Bottom Pan Foam

502007941

$4.43

LH Front Lower Bottom Pan Foam

502007942

$4.43

400

RH Bottom Pan

502008102

$86.89

410

Black, Pop Rivet 3/16 X ,550

293150292

Unavailable

430

Torx Truss M5 X 20

250000586

Unavailable

435

Washer

517307442

Unavailable

440

Panel Nut M5 X 0.8

250000958

Unavailable

460

RH Rear Bottom Pan Foam

502007944

$13.63

500

Plate

502007868

$2.02

510

Black, Pop Rivet 3/16 X ,425

293150291

Unavailable

600

LH Bottom Pan | Includes 600 to 600c

502007750

$86.89

600b

Bottom Pan Door

502007676

$36.89

600c

Hairpin Cotter

269800431

Unavailable

620

Neoprene Seal (1PAC=3M)

219704364

$22.72

630

Screw Torx M5 X 20

250001232

Unavailable

631

Torx Truss M5 X 20

250000586

Unavailable

635

Washer

517307442

Unavailable

636

Washer M5

250200025

Unavailable

640

Panel Nut M5 X 0.8

250000958

Unavailable

670

LH Rear Bottom Pan Foam

502007946

$13.83

700

Heat Shield

502008087

Unavailable

710

Stopper

502008752

Unavailable

720

Reflective Sheet

502008156

Unavailable

730

Black Dart

293730010

Unavailable

800

Front Bumper HD Kit

860202198

Unavailable

810

Hex. Flange Screw M6 X 16

207661644

Unavailable

830

Black, Pop Rivet 3/16 X ,550

293150292

Unavailable

850

Bumper Reinforcement

502007913

$5.62

855

Hex. Flange Screw M6 X 16

207661644

Unavailable

1200

Lower Prefilter Grille

502007979

$26.89

1220

Upper Prefilter Grille

502007980

Unavailable

2000

Under Skid Plate

502007906

$114.58

2010

Black, Pop Rivet 3/16 X ,550

293150292

Unavailable
