- SKANDIC - 600 ACE - LE - AKSA - Deep Black - 154X20X1.5CST Track - 2025
Suspension - Front

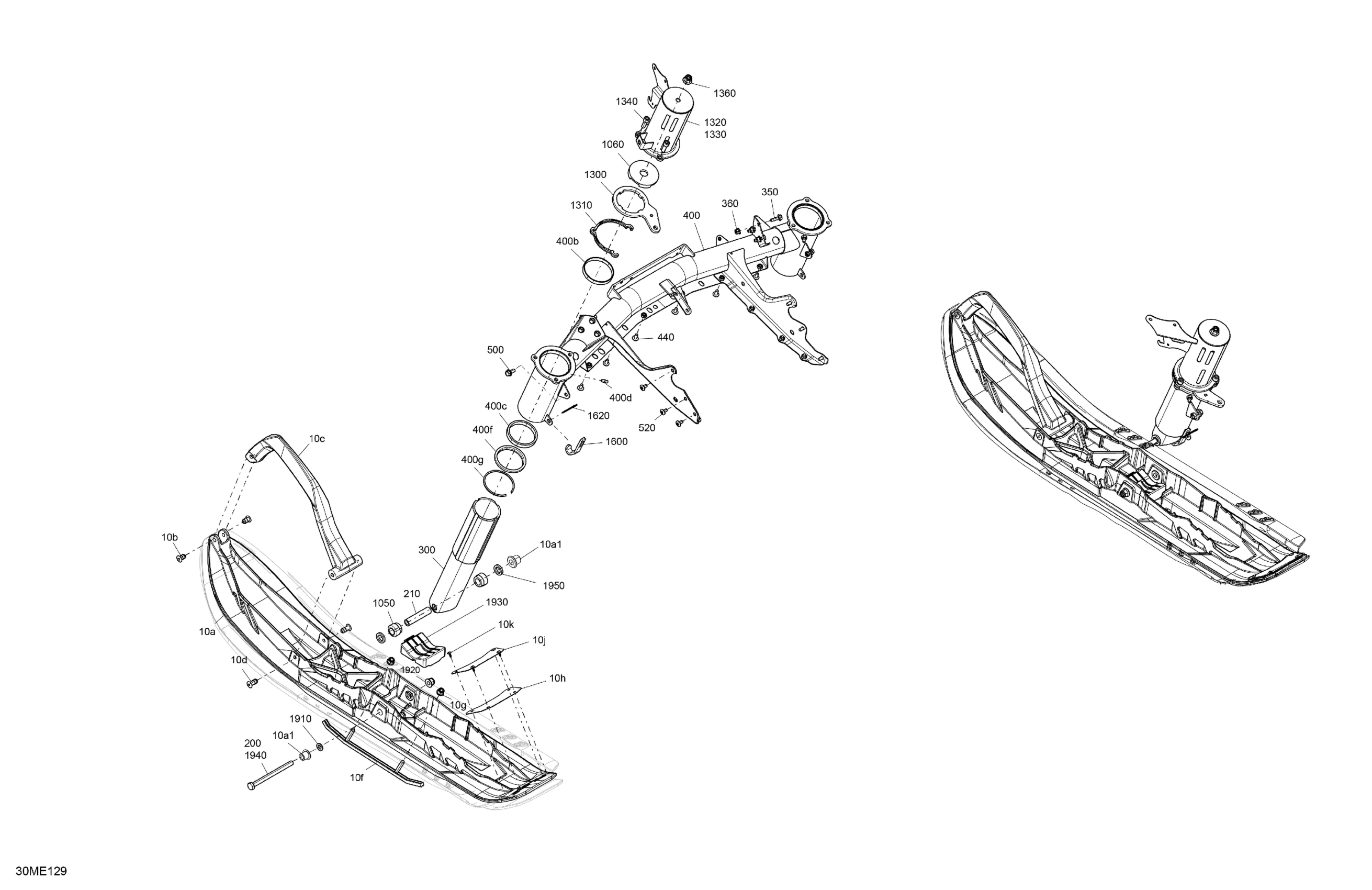

Ski-Doo SKANDIC - 600 ACE - LE - AKSA - Deep Black - 154X20X1.5CST Track - 2025 Suspension - Front Diagram
#
10a
Deep Black, Ski Pilot 7.4 | Includes 10a to 10a1
505074736
Unavailable
10a1
Ski Bushing
505071781
Unavailable
10f
Carbide Runner Kit (Square Runner) | Includes 10f to 10f1
860201044
Unavailable
10g
Hex. Flange Elastic Nut M8
233281414
Unavailable
10h
Skid Plate
505075134
Unavailable
10j
Skid Plate
505075137
Unavailable
10k
Torx-Truss Screw K40 X 10
250001034
Unavailable
200
Hex. Screw M10 X 130 | Model-RT STD
250000703
Unavailable
210
Ski Axle
505073209
Unavailable
300
Ski Leg
505073200
Unavailable
350
Hex. Flange Screw M6 X 20
207662046
Unavailable
360
Elastic Flange Nut M6 X 1.0
233261416
Unavailable
400
Suspension Module | Includes 400 to 400g
505075834
Unavailable
400b
Upper Cushion
414803100
Unavailable
400c
Lower Cushion
414803200
Unavailable
400d
Grease Fitting
408200700
Unavailable
400f
Seal Oil
505072696
Unavailable
400g
Circlip
505072698
Unavailable
500
Hex. Flange Screw M8 X 20
207682044
Unavailable
1050
Cushion
572034500
Unavailable
1060
Stopper
570025800
Unavailable
1300
Steering Arm
505074801
Unavailable
1310
Spacer
505073983
Unavailable
1320
LH Suspension Cover
505074810
Unavailable
1330
RH Suspension Cover
505074812
Unavailable
1340
Socket Head Screw M8 X 25
205082544
Unavailable
1600
Clamp
505074882
Unavailable
1620
Spring Cotter 2 Din 11024 Zn
505073113
Unavailable
1910
Washer
503192496
Unavailable
1920
Hex. Flange Elastic M10 x 1.5
233201464
Unavailable
1930
Ski Stopper
505072594
Unavailable
1940
Hex. Screw M10 X 130 | Model-RT STD
250000703
Unavailable
