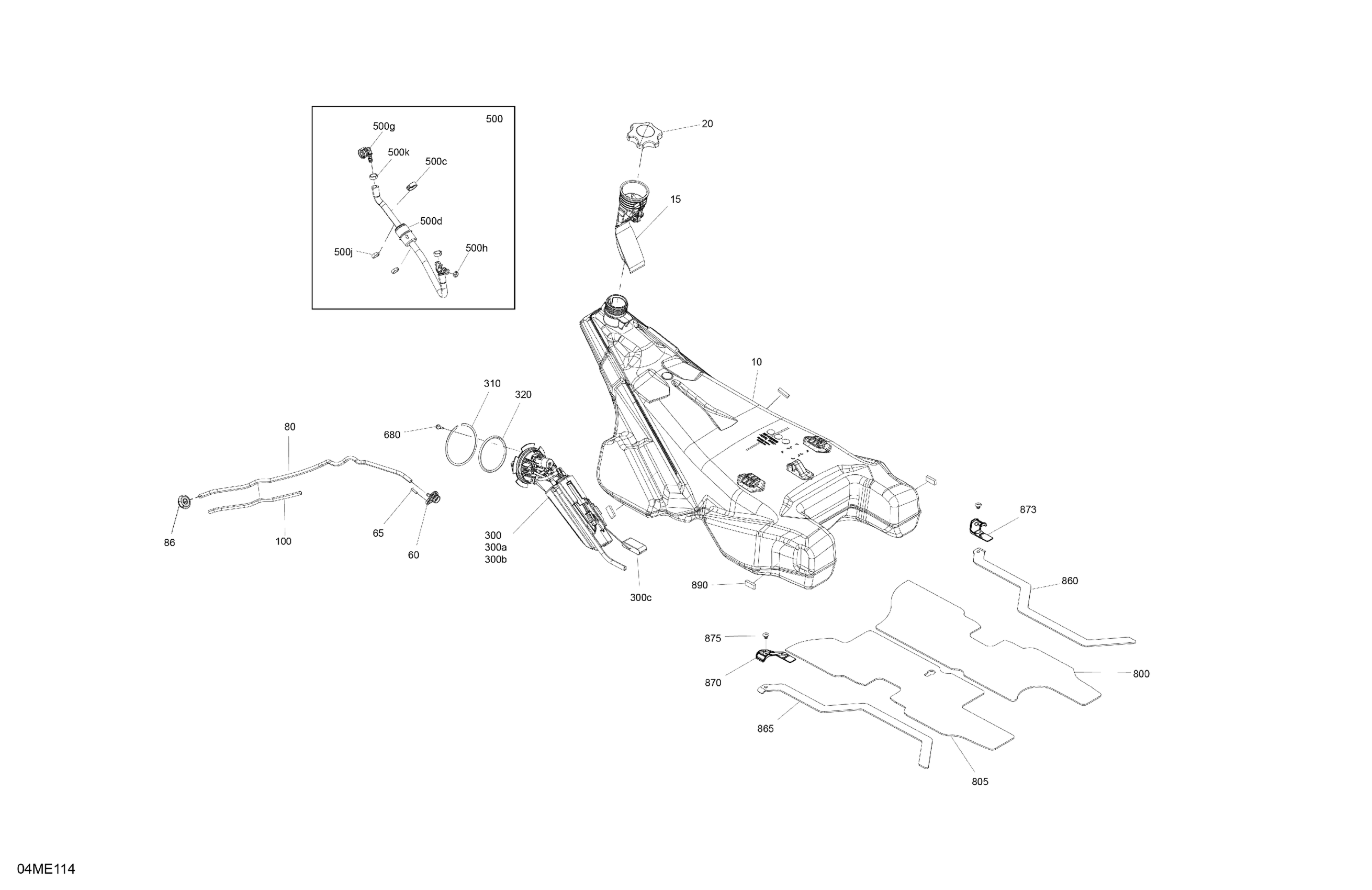

Ski-Doo SKANDIC - 600 ACE - LE - AKSA - Deep Black - 154X20X1.5CST Track - 2025 Engine - Fuel Diagram

Description

Price

Fuel Tank

513034141

$295.35

Tube Ass'y

513033959

$26.89

Fuel Tank Cap

513034168

$25.35

Check Valve

513033849

Unavailable

Truss Torx Screw K40 X 16

250000918

Unavailable

Hose 5.7MM - 630MM

219704539

Unavailable

Grommet

705003264

Unavailable

100

Protector Tube | Not shown

503195447

$13.85

300

Fuel Pump Ass'y | Includes 300 to 300c

513034083

$257.66

300a

Canister

415130507

Unavailable

300b

Filter

415130508

Unavailable

300c

Fuel Level Sensor

415130727

Unavailable

310

Circlip

513034097

Unavailable

320

O-Ring

513033862

Unavailable

500

Hose Ass'y | Includes 500 to 500k

513034203

$71.51

500c

Ring

513033910

$6.86

500d

Fuel Filter

513034047

Unavailable

500g

Elbow Fitting 90°

293710105

$10.58

500h

O-Ring

513033668

Unavailable

500j

Crimp Clamp, 15.3-706R

293650047

Unavailable

500k

Crimp Clamp

293650053

Unavailable

680

Hex. Flange Screw M5 X 16

250000911

Unavailable

800

RH Insulated Foam

513034052

$10.77

805

LH Insulated Foam

513034053

$10.77

860

RH Foam

513033981

$4.43

865

LH Foam

513033982

$4.43

870

LH Chassis Trim

513034183

$7.80

873

RH Chassis Trim

513034184

$7.80

875

Black, Pop Rivet 3/16 X ,550

293150292

Unavailable

890

Tank Guard

513034038

$4.03
