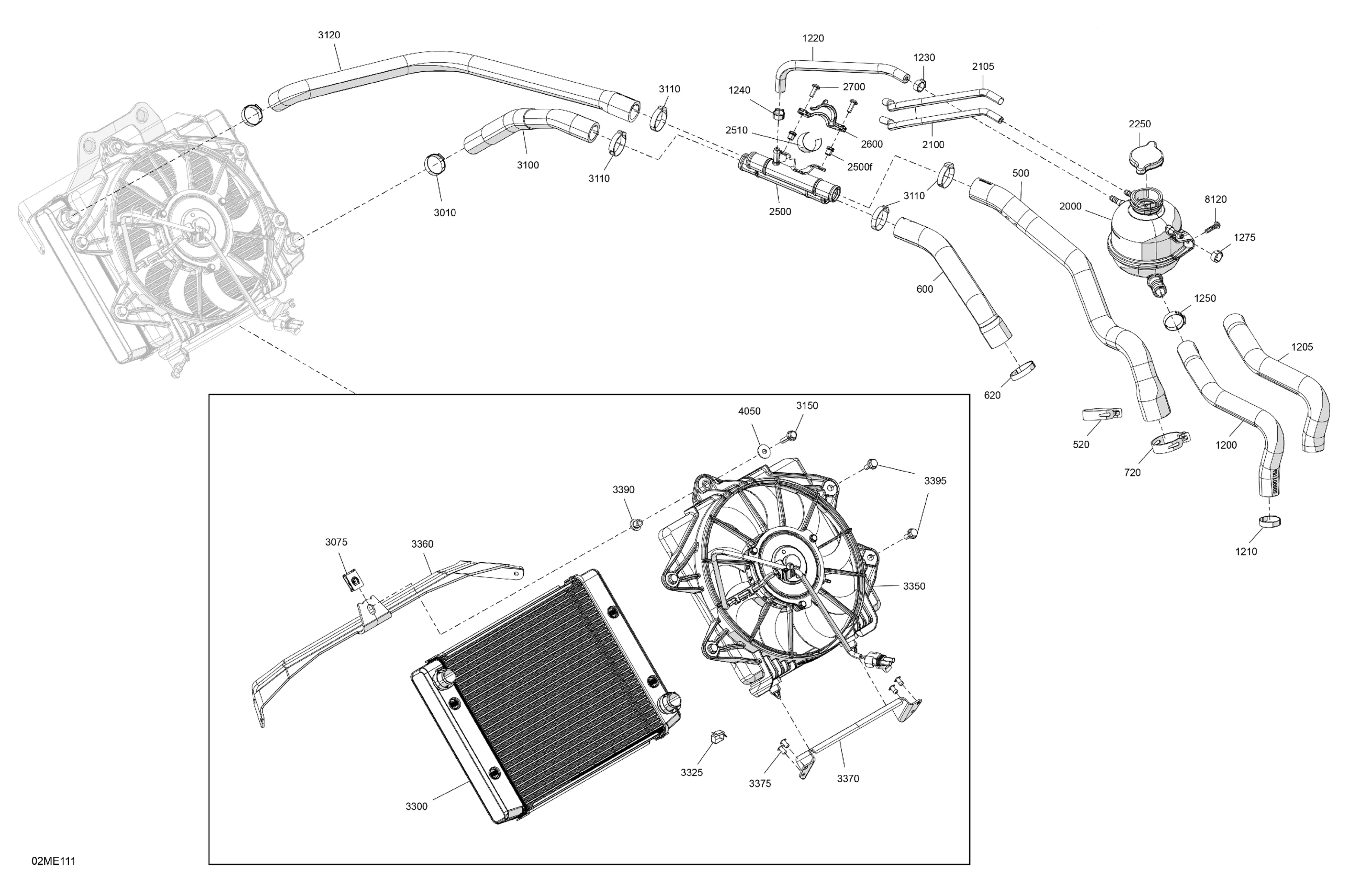

Ski-Doo SKANDIC - 600 ACE - LE - AKSA - Deep Black - 154X20X1.5CST Track - 2025 Engine - Cooling Diagram

Description

Price

500

Radiator Hose

509001449

Unavailable

520

Norma Spring Clamp

293650264

Unavailable

600

Hose

509001448

Unavailable

620

Crimp Clamp

293650333

Unavailable

720

Norma Spring Clamp

293650264

Unavailable

1200

Hose

509001453

Unavailable

1205

Protector Tube 32 Mm 1000Mm Long

219704421

$25.35

1210

Crimp Clamp

293650099

Unavailable

1220

Hose

509001454

Unavailable

1230

Oetiker Clamp

293650046

Unavailable

1240

Oetiker Clamp

293650046

Unavailable

1250

Oetiker Clamp

509001041

Unavailable

1275

Oetiker Clamp

293650046

Unavailable

2000

Cooling Tank

509001033

$86.12

2100

Hose 6 Mm 15000Mm Long

219704360

Unavailable

2105

Protector Tube | Not shown

503195447

$13.85

2250

Radiator Pressure Cap

509000180

Unavailable

2500

Coolant Pipe | Includes 2500 to 2500f

509001030

$25.35

2500f

Insert M5 X 0.8

293450268

Unavailable

2510

Protector

512061214

$2.06

2600

Clamp

509001379

Unavailable

2700

Torx Screw M5 X 14

250000742

$1.20

3010

Crimp Clamp

293650099

Unavailable

3075

Panel Nut M6 X 1.0

250100208

$1.07

3100

Radiator Hose

509001451

Unavailable

3110

Crimp Clamp

293650331

Unavailable

3120

Radiator Hose

509001452

Unavailable

3150

Hex. Flange Screw M6 X 25

207562544

$1.39

3300

Front Radiator This part replaces 509001465.

509001057

$165.35

3325

Clip

710010204

Unavailable

3350

Fan Ass'y

509001302

Unavailable

3360

Central Radiator Support

509001219

Unavailable

3370

Lower Radiator Support

509001024

$4.00

3375

Avex Rivet

390909100

$0.29

3390

Bushing

293900151

Unavailable

3395

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

Unavailable

4050

Flat Washer

250200082

Unavailable

8120

Hex. Flange PT Screw K50 X 20

241152040

Unavailable
