Partiron

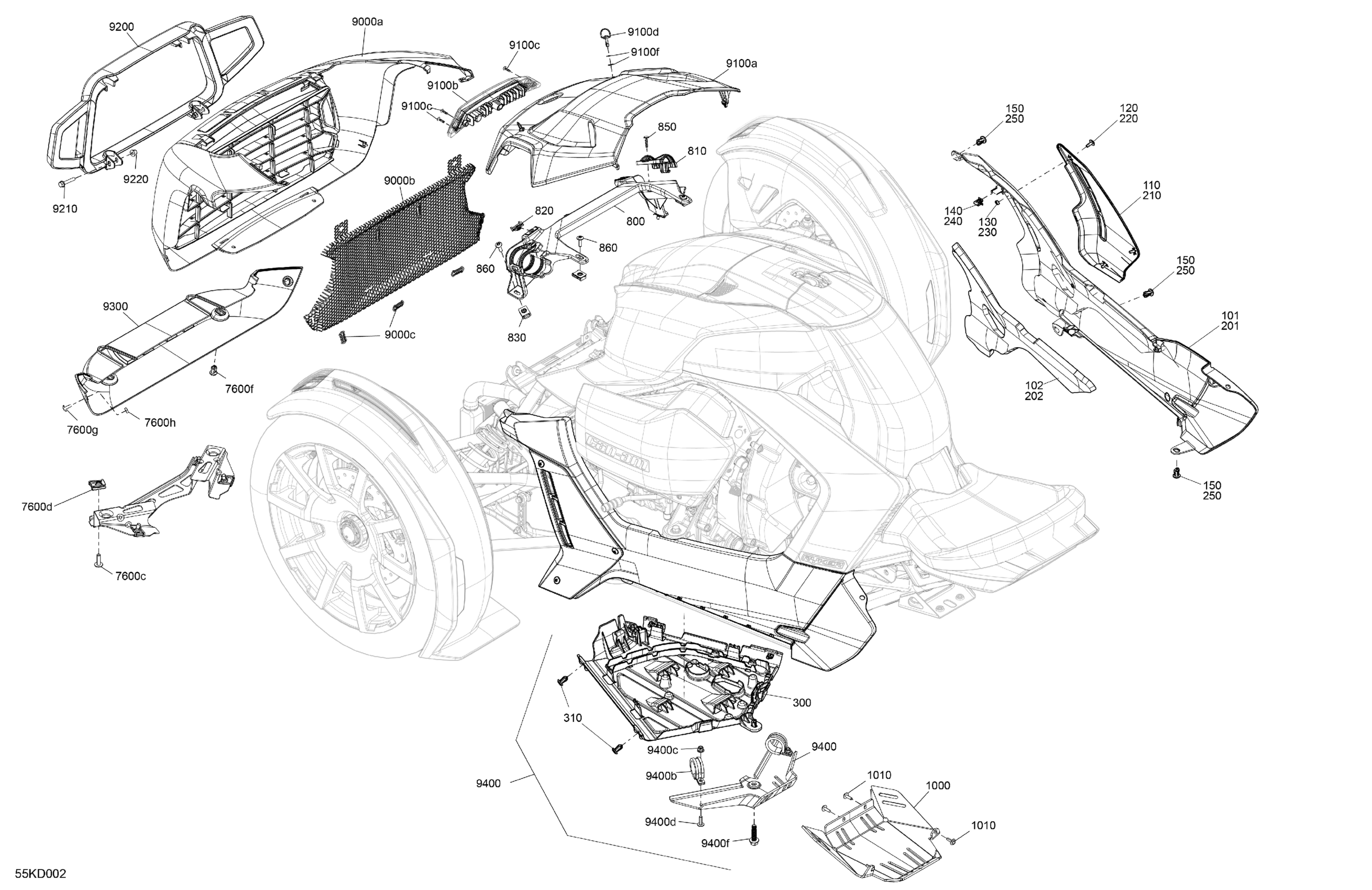

Can-Am RYKER RALLY 900 ACE - F3RA - RALLY - Deep Black, 2024 Body - Lower Section Diagram

#

Description
Price

7600c

Torx Screw M6 X 20

250000722

Unavailable

7600d

Panel Nut M6 X 1.0

250100208

Unavailable

7600f

Tuflok Plastic Rivet

293150230

Unavailable

7600g

Torx Truss Head Screw W Nylon M5X14

250001059

Unavailable

7600h

Square Nut M5 X 0.8

232852411

$1.00

101

LH Rocker Panel Kit

219800526

$74.00

102

Acoustic Foam, LH rocker

705013940

$19.00

110

Carbon Black, LH Trim

705016520

$200.00

120

Torx Truss Head Screw W Nylon M5X14

250001059

Unavailable

130

Square Nut M5 X 0.8

232852411

$1.00

140

Edge Clip

517302785

Unavailable

150

Tuflok Plastic Rivet

293150230

Unavailable

201

RH Rocker Panel Kit

219800527

$74.00

202

Acoustic Foam

705013941

$19.00

210

Carbon Black, RH Trim

705016521

$200.00

220

Torx Truss Head Screw W Nylon M5X14

250001059

Unavailable

230

Square Nut M5 X 0.8

232852411

$1.00

240

Edge Clip

517302785

Unavailable

250

Tuflok Plastic Rivet

293150230

Unavailable

300

Skid Plate

705012364

$52.00

310

Tuflok Plastic Rivet

293150230

Unavailable

800

Front Tank Support Shock Absorber

705016204

$34.00

810

Ext Tank Support Shock Absorber

706004531

$4.00

820

Specialized Nut

705016560

$5.00

830

Panel Nut M6 X 1.0

250100208

Unavailable

850

Torx Screw Truss Head K50X20 T20

250000760

Unavailable

860

Torx Screw M6 X 20

250000722

Unavailable

1000

Plate_Skid Under Kit

219401251

$191.00

1010

Hex. Plastic Screw M4.8 X 16

243141630

Unavailable

9000a

Deep Black, Front Fascia

705013345

$99.00

9000b

Protective Grille

705018411

$59.00

9000c

Flat Clip

705004838

$8.00

9100a

Hood

705016171

$81.00

9100b

Front Lower LED Light Ass'y

219400991

$330.00

9100c

Hex. Flange Screw K40 X 16

250001123

Unavailable

9100d

Quarter Turn Fastener

705016561

$19.00

9100f

Washer

705016562

$1.00

9200

Central Bumper Trim

705016169

$160.00

9210

Hex. Flange Screw M6 X 35

207663554

$1.74

9220

Hex. Flange Elastic Nut M6

233261466

Unavailable

9300

Lower Bumper Trim

705016170

$24.00

9400

Front Skid Plate Kit | Includes 9400 to 9400f

705016559

Unavailable

9400b

Collar

293750075

Unavailable

9400c

Flange Elastic Nut M6

233261434

Unavailable

9400d

Torx Truss Screw M6 X 20

250000488

Unavailable

9400f

Self Tapping Screw 3/8-16

229000339

$10.00
