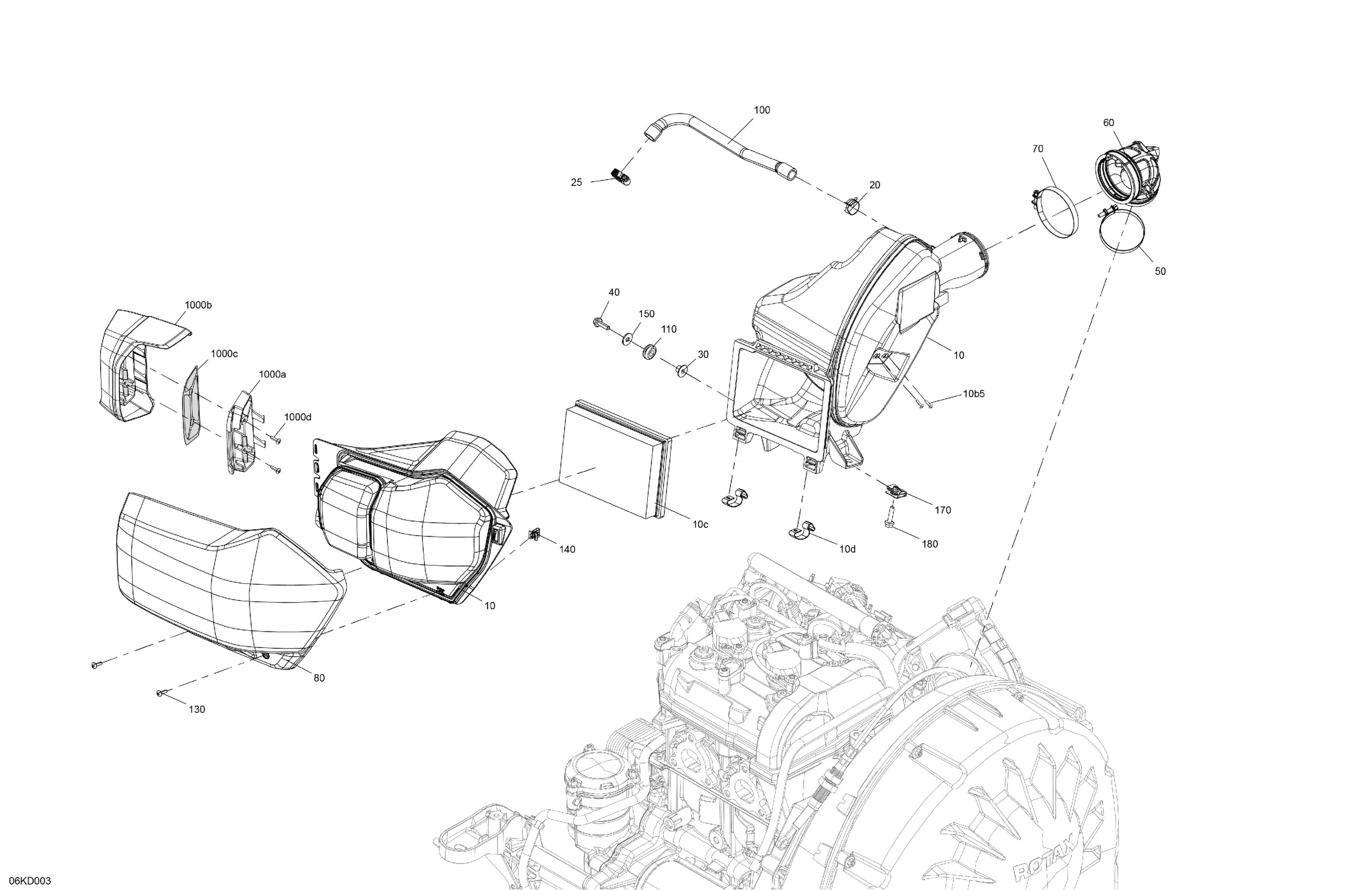

Can-Am RYKER RALLY 900 ACE - F3RA - RALLY - Deep Black, 2024 Engine - LH Air Intake Diagram

#

Description
Price

10

Intake Silencer Ass'y

707801071

$185.00

10b5

Torx-Truss Pt K40 X 16

250000759

Unavailable

10c

Air Filter

707800306

$46.00

10d

Cover Retainer

707800342

Unavailable

20

Spring Clamp

513033865

$4.00

25

Clamp Gear

293650285

Unavailable

30

Bushing

709001288

Unavailable

40

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

Unavailable

50

Gemi Clamp

293650229

Unavailable

60

Air Intake Silencer Adaptor

707800712

$34.00

70

Gemi Clamp

508000150

$13.00

80

Lateral Cover

707801015

$115.00

100

Formed Hose

707800710

$35.00

110

Grommet

709001197

$5.00

130

Torx-Truss Pt K40 X 16

250000759

Unavailable

140

Edge Clip

517302785

Unavailable

150

Flat Washer

250200082

Unavailable

1000a

LH Filter Support | Includes 1000a to 1000d

705015093

$12.00

1000b

Carbon Black, LH Fairing Trim

705016508

$160.00

1000c

Filter

508001076

$39.00

1000d

Torx-Truss Pt K40 X 16

250000759

Unavailable

170

Panel Nut M6 X 1.0

250100208

Unavailable

180

Hex. Flange Screw M6 X 25

207662544

Unavailable
