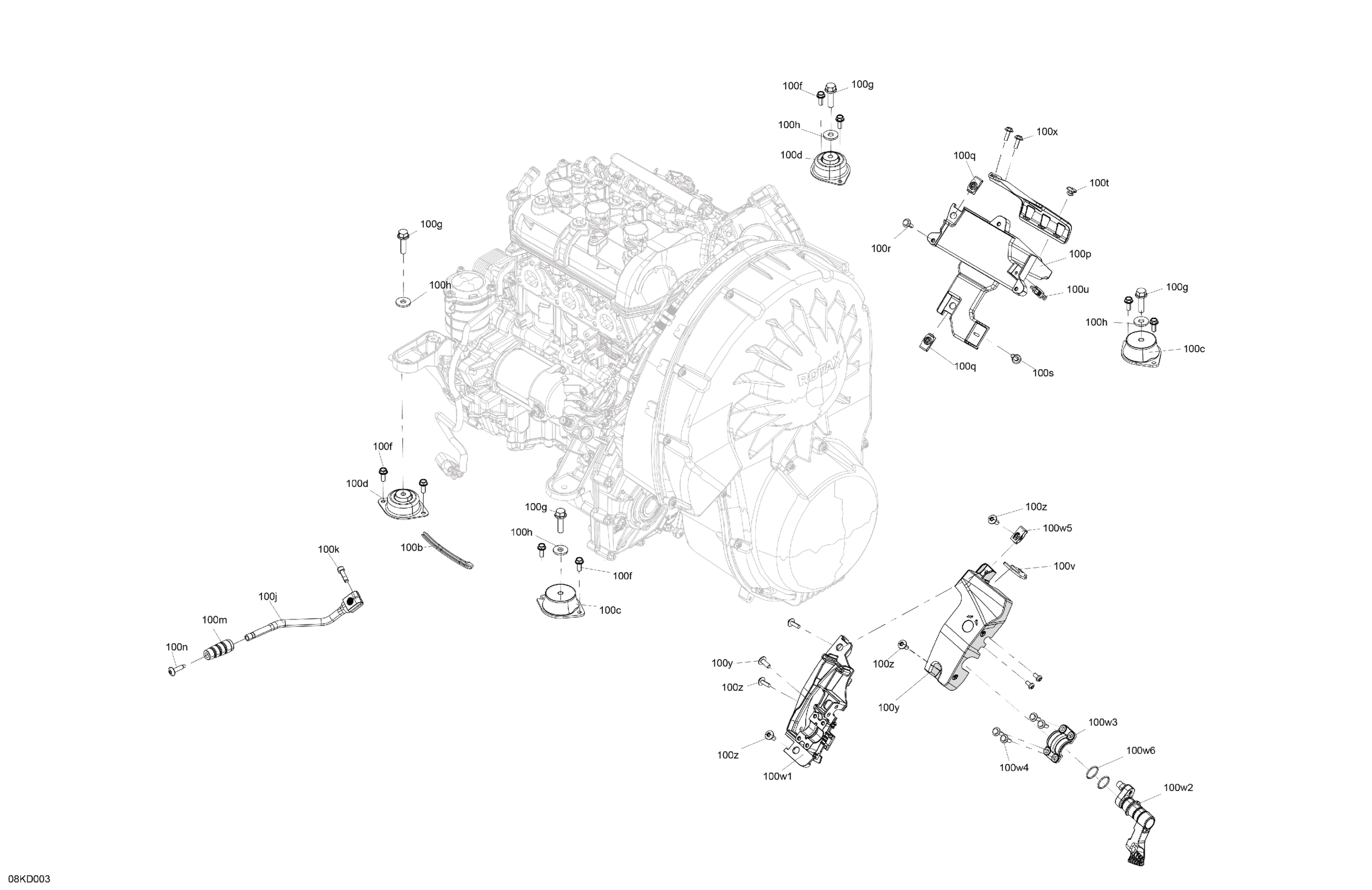

Can-Am RYKER 900 ACE - F2RA - STD - Deep Black, 2024 Engine - System Diagram

Description

Price

100b

Trim 1000Mm Long

219704354

$14.74

100c

Vibration Damper

512061508

$11.48

100d

Vibration Damper

512061507

$43.00

100f

Hex. Flange Screw M6 X 16

210261650

$1.22

100g

Hex. Flange Screw S.GRIP M8 X 30

207583054

$1.75

100h

Flat Washer

279000336

$8.35

100j

Shift Lever

707002045

$89.00

100k

Socket Head Screw Scotch Grip M6 X 20

250001077

$2.60

100m

End Clutch Pedal

707000456

$9.00

100n

Torx Screw M6 X 25 | XT Models

250000728

$3.61

100p

Support Module

707002214

$10.00

100q

Panel Nut M6 X 1.0

250100198

$1.73

100r

Hex. Plastic Screw M4.8 X 16

243141630

$1.74

100s

Hex. Flange Screw S.Grip M6 X 20

207562054

$1.74

100t

Pop Rivet 3/16"

390406500

$0.70

100u

Connector Support

515179692

$1.63

100v

Bracket

707002273

$3.00

100w1

Support Parking Brake

707002218

$15.00

100w2

Parking Brake Lever | Includes 100w2 to 100w2a

707002827

$19.00

100w3

Clamp

707002240

$2.00

100w4

Hex. Plastic Screw M4.8 X 16

243141630

$1.74

100w5

Panel Nut M6 X 1.0

250100198

$1.73

100w6

O-Ring

293300079

$5.34

100x

Hex. Plastic Screw M4.8 X 16

243141630

$1.74

100y

Cover

707002239

$4.00

100z

Torx Head Screw M6 X 16

250000717

$1.74
