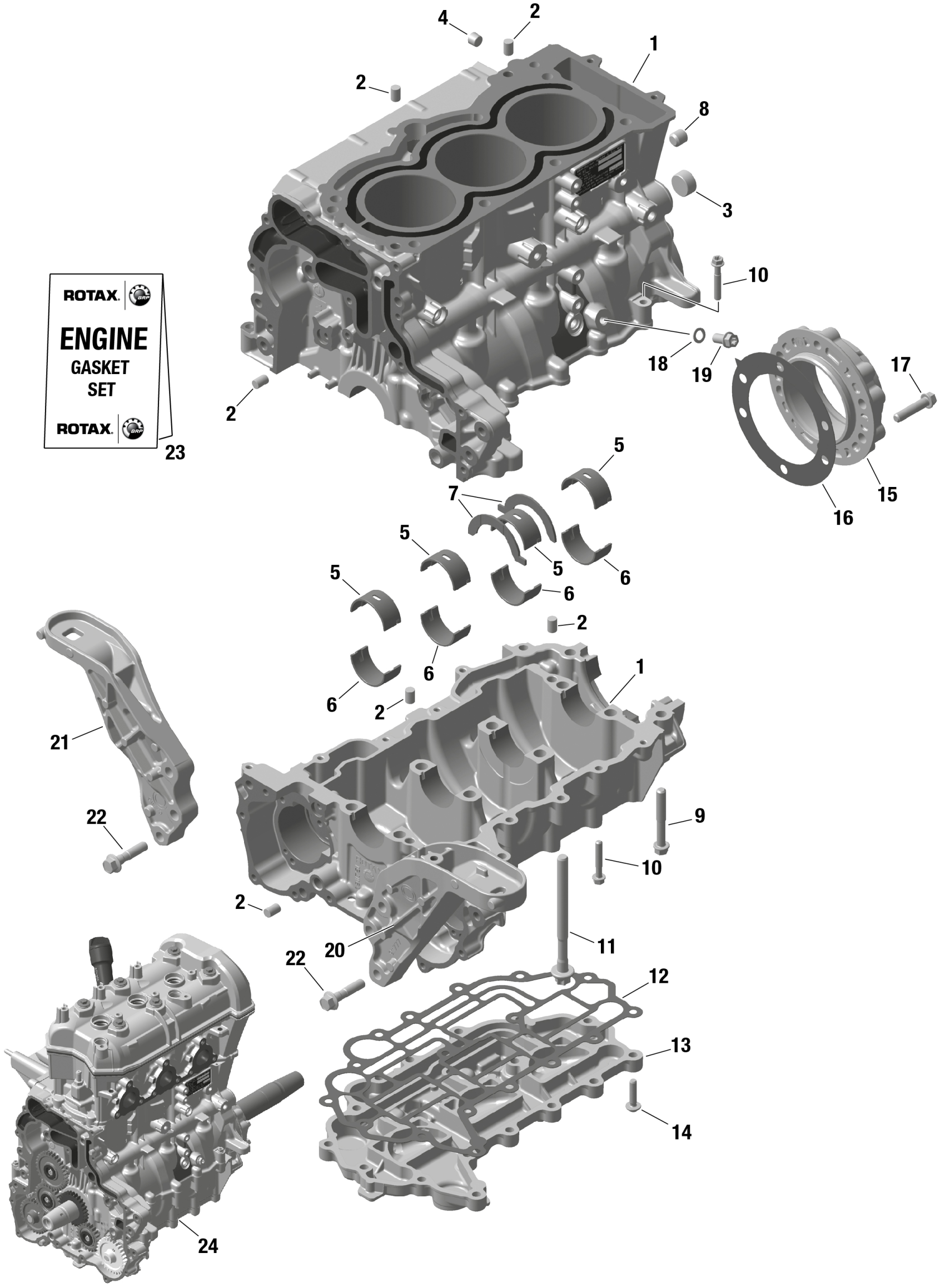

Can-Am RYKER 900 ACE - F2RA - STD - Deep Black, 2024 ROTAX - Crankcase Diagram

#

Description
Price

1

Engine Block

420894024

$2,140.00

2

Center Pin 8 X 12

420632010

Unavailable

3

Plug Screw M20 X 1.5

420641317

Unavailable

4

Plug Screw M10 X 1

420641323

Unavailable

5

Cushion

420933180

Unavailable

6

Cushion

420933185

Unavailable

7

Ring Half

420933140

Unavailable

8

Threaded Pin

420840508

Unavailable

9

Torx Flange Screw M8 X 55

420641213

Unavailable

10

Torx Flange Screw M6 X 35

420440274

Unavailable

11

Torx Flange Screw M9 X 113

420940945

Unavailable

12

Gasket

420431820

Unavailable

13

Oil Sump

420912383

Unavailable

14

Torx Flange Screw M6 X 25

420841548

Unavailable

15

PTO Cover

420911686

$52.00

16

PTO Cover Gasket

420450080

Unavailable

17

Torx Flange Screw M8 X 35

420440861

Unavailable

18

Sealing Ring

420950141

Unavailable

19

Torx Flange Screw M8 X 16

420440852

Unavailable

20

Engine Bracket Front Exh.

420911777

$22.00

21

Engine Bracket Front inl.

420911773

$22.00

22

Collar Hex Screw M8X35

420640440

$1.00

23

Gasket Set

420686239

$529.00

24

Long Block 903

420090370

$4,104.00
