Description

Price

100b

Passenger Detection Switch

710008103

Unavailable

10

Driver Seat Ass'y | Includes 10 to 10c

708003335

$570.00

10a2

Seat Stopper

708003866

Unavailable

10a4

Panel Nut M6 X 1.0

250100198

Unavailable

10a5

Flat washer M6

250200164

Unavailable

10a6

Hex. Nut M6

232160600

Unavailable

10a8

Plastite Screw Type K-40, M4 X 25

250000101

Unavailable

20

Passenger Seat Ass'y | Includes 20 to 20c1

708003312

$410.00

20a2

Seat Stopper

708003866

Unavailable

50

Actuator Cable

517307507

$11.00

60

Latch

705018738

$29.00

65

Trim Latch

708003260

$5.00

70

Torx Truss Hex. Screw M6X35, Nylon Patch

250000867

Unavailable

75

Panel Nut M6 X 1.0

250100208

$1.07

350

Air Shock Absorber KIt

219800563

$84.00

360

Ball Head Stud

250300039

Unavailable

365

Hex. Flange Elastic Nut M8

233281414

Unavailable

380

Connector Cap | Includes 380 to 380d

708303050

$14.00

6110

Spacer

708000664

$6.00

6111

Torx Screw M6 X 45

250000748

Unavailable

6112

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

6120

Plastite Screw Type K-40, M4 X 25

250000101

Unavailable

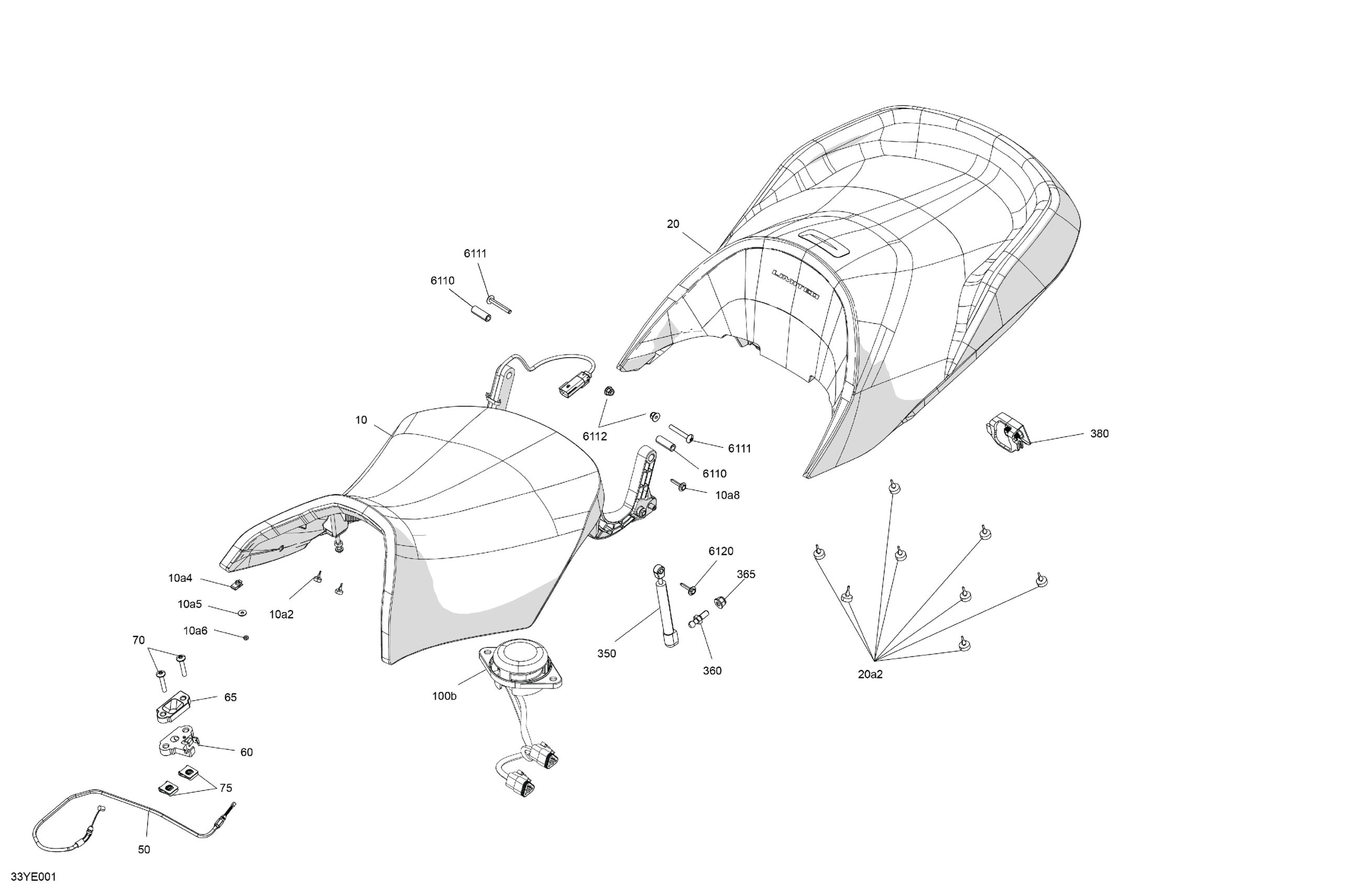

Can-Am RT STD - B2SA - Hyper Silver, 2025 Body - Seat Diagram

Passenger Detection Switch

Seat Stopper

Panel Nut M6 X 1.0

Flat washer M6

Hex. Nut M6

Plastite Screw Type K-40, M4 X 25

Seat Stopper

Torx Truss Hex. Screw M6X35, Nylon Patch

Ball Head Stud

Hex. Flange Elastic Nut M8

Torx Screw M6 X 45

Hex. Flange Elastic Nut M6 x 1.0

Plastite Screw Type K-40, M4 X 25
