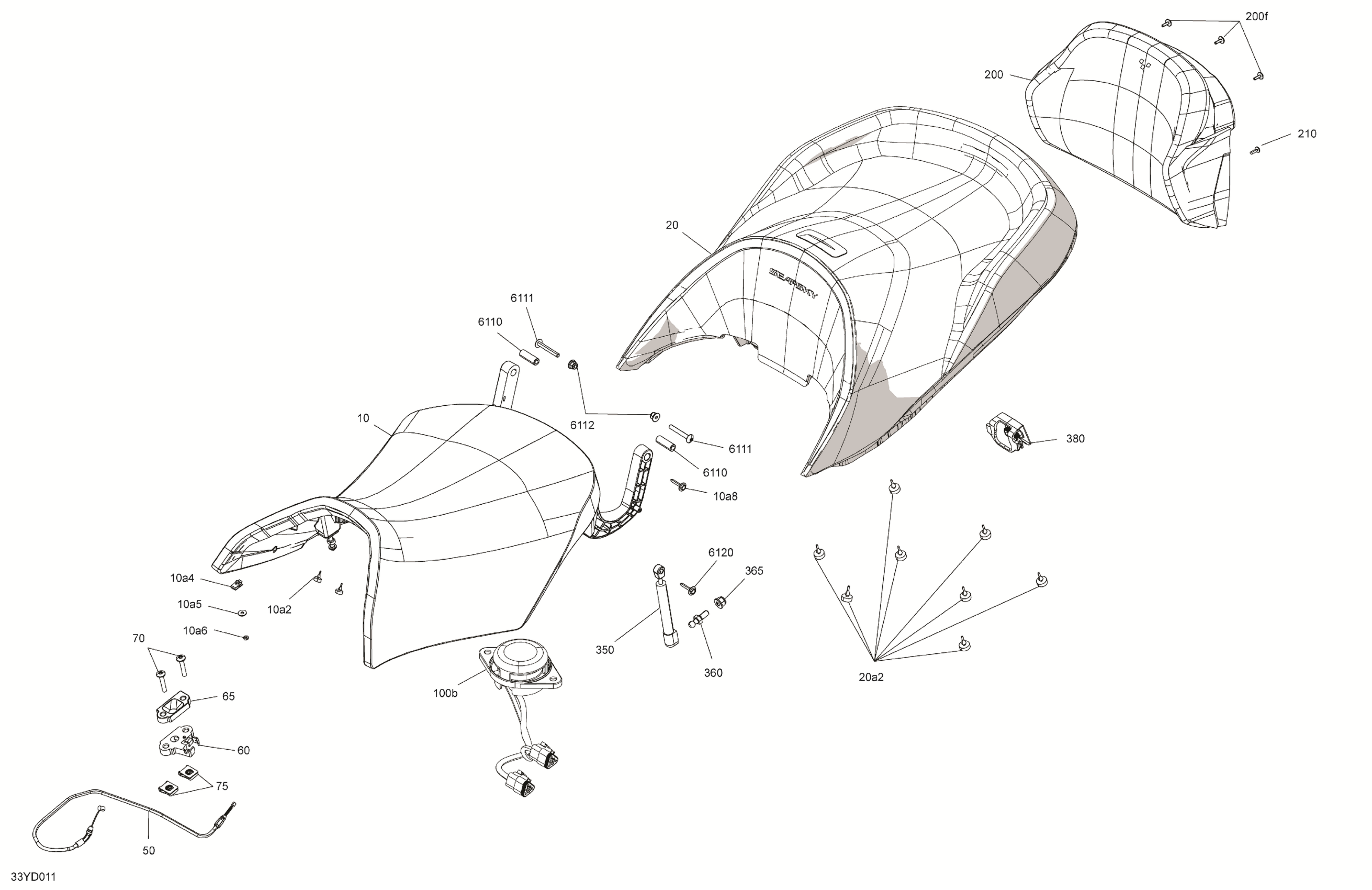

Can-Am RT LIMITED - Special Edition - G2RA - LIMITED - Vegas White Satin, 2024 Body - Seat Diagram

Description

Price

100b

Passenger Detection Switch

710008103

$72.28

Heated Driver Seat Ass'y | Includes 10 to 10a8

708003732

$620.00

10a2

Rubber Stopper

708000759

$3.61

10a4

Panel Nut M6 X 1.0

250100198

$1.73

10a5

Flat washer M6

250200164

$0.83

10a6

Hex. Nut M6

232160600

$1.08

10a8

Plastite Screw Type K-40, M4 X 25

250000101

$2.87

Heated Passenger Seat Ass'y | Includes 20 to 20a2

708003729

$530.00

20a2

Rubber Stopper

708000759

$3.61

Actuator Cable

517307507

$11.00

Latch

705018738

$29.00

Trim Latch

708003260

$5.00

Torx Truss Hex. Screw M6X35, Nylon Patch

250000867

$1.74

Panel Nut M6 X 1.0

250100208

$1.07

200

Passenger Backrest Ass'y | Includes 200 to 200f

708304722

$350.00

200f

Screw M4 X 16

250000725

$2.87

210

Torx Screw K50 X 16

250000720

$1.39

350

Shock Absorber

708003221

$84.00

360

Ball Head Stud

250300039

$6.15

365

Hex. Flange Elastic Nut M8

233281414

$1.14

380

Connector Cap | Includes 380 to 380d

708303050

$14.00

6110

Spacer

708000664

$6.00

6111

Torx Screw M6 X 45

250000748

$1.56

6112

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

6120

Plastite Screw Type K-40, M4 X 25

250000101

$2.87
