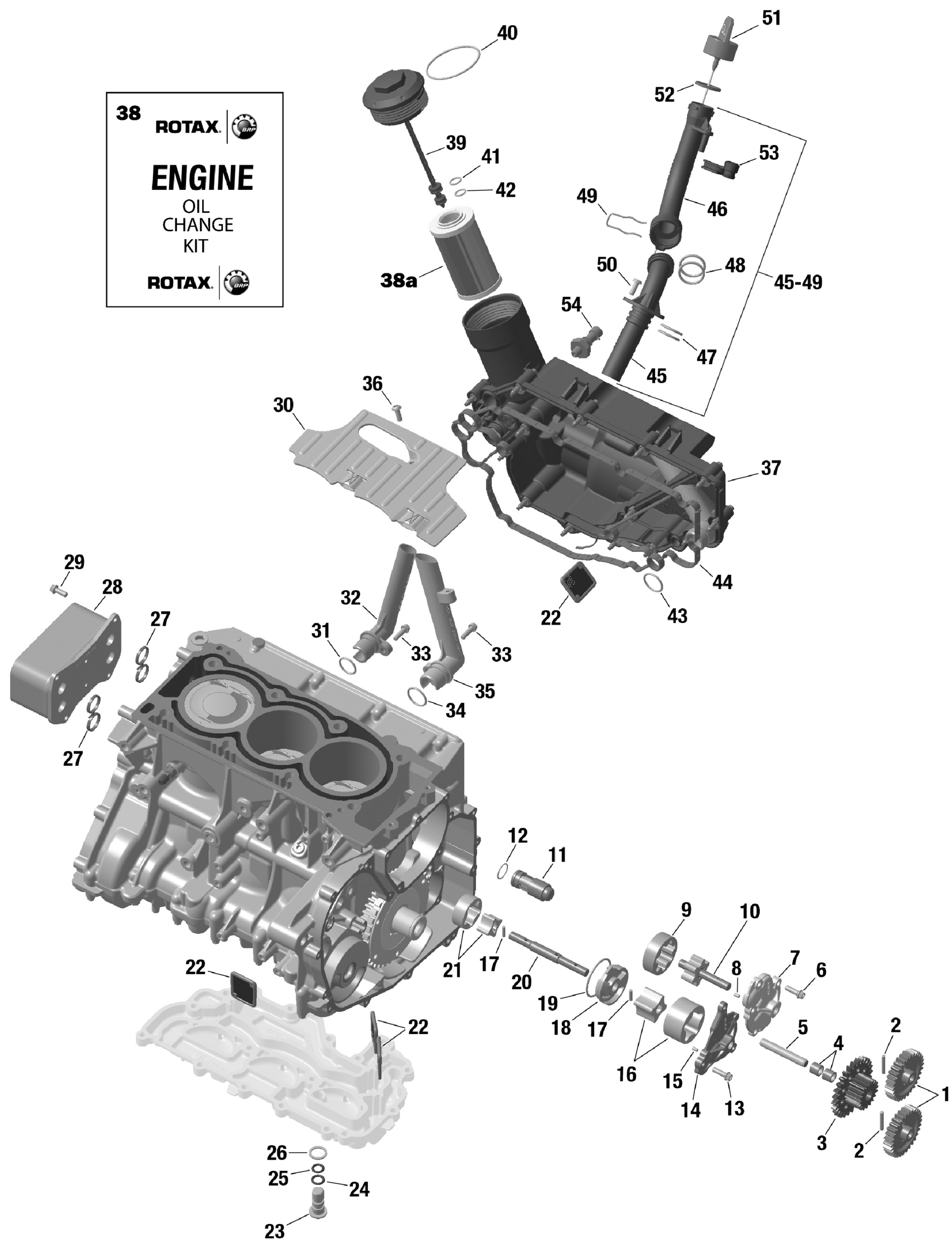

Can-Am RT - B2RA - STD - Petrol, 2024 ROTAX - Engine Lubrication Diagram

#

Description
Price

1

Oil Pump Gear 30 Teeth

420435170

$21.00

2

Needle Pin

420232431

$3.67

3

Intermediate Gear 28\18 Teeth Ass'y | Includes 3 to 4

420435165

$87.00

4

Needle Bushing

420232031

$16.00

5

Pin Cylindrical

420229472

$14.00

6

Torx Flange Screw M6 X 20

420440207

$2.54

7

Oil Pump Cover

420210220

$34.00

8

Needle Pin

420929075

$1.74

9

Oil Pump Rotor 16 mm

420956675

$29.22

10

Shaft And Oil Pump Rotor

420637077

$116.00

11

Pressure Regulator Valve Ass'y | Includes 11 to 12.

420456141

$68.00

12

O-Ring

420230405

$4.60

13

Torx Flange Screw M6 X 20

420440207

$2.54

14

Oil Pump Cover

420210260

$34.00

15

Needle Pin

420929075

$1.74

16

Oil Pump Rotor

420256831

$71.51

17

Needle Pin

420232731

$1.56

18

Oil Pump Cover

420210770

$34.00

19

O-Ring

420631830

$1.74

20

Oil Pump Shaft

420637070

$37.00

21

Oil Pump Rotor

420956278

$68.43

22

Oil Sieve

420656885

$14.00

23

Screw M14 X 1.5

420441681

$40.00

24

O-Ring

420250460

$1.87

25

O-Ring

420430115

$1.91

26

Gasket Ring

420430624

$1.51

27

Gasket

420431711

$6.00

28

Oil Radiator

420888859

$148.00

29

Torx Flange Screw M6 X 16

420440162

$3.11

30

Baffle

420201450

$17.00

31

O-Ring

420430372

$7.00

32

Vent Hose

420210710

$18.00

33

Torx Flange Screw M6 X 20

420440207

$2.54

34

O-Ring

420430783

$2.00

35

Vent Hose

420224810

$18.00

36

Torx Flange Screw M6 X 16

420641588

$1.74

37

Oil Tank Cover Ass'y | Includes 37 to 44

420893282

$423.00

38

Spyder Oil Change Kit 5W40 1330

9779249

$144.00

38a

Oil Filter

420956744

$16.87

39

Oil Filter Cover Ass'y | Includes 39 to 42

420210885

$33.00

40

O-Ring

420850482

$9.00

41

O-Ring

420950812

$6.00

42

O-Ring

420650927

$6.00

43

O-Ring

420931636

$17.00

44

Gasket

420431990

$17.00

45

Oil Filler Tube Ass'y | Includes 45a to 49.

420456510

$30.00

46

Not Available As Spare Parts

XXX

Unavailable

47

O-Ring

420631876

$10.52

48

O-Ring

420430140

$5.65

49

Spring Clip

420939343

$7.37

50

Torx Flange Screw M6 X 16

420641588

$1.74

51

Oil Gauge Ass'y | Includes 51 to 52

420656984

$30.00

52

Gasket Ring

420431791

$8.00

53

Silent Block

420201180

$8.00

54

Oil Pressure Switch

420256917

$50.00
