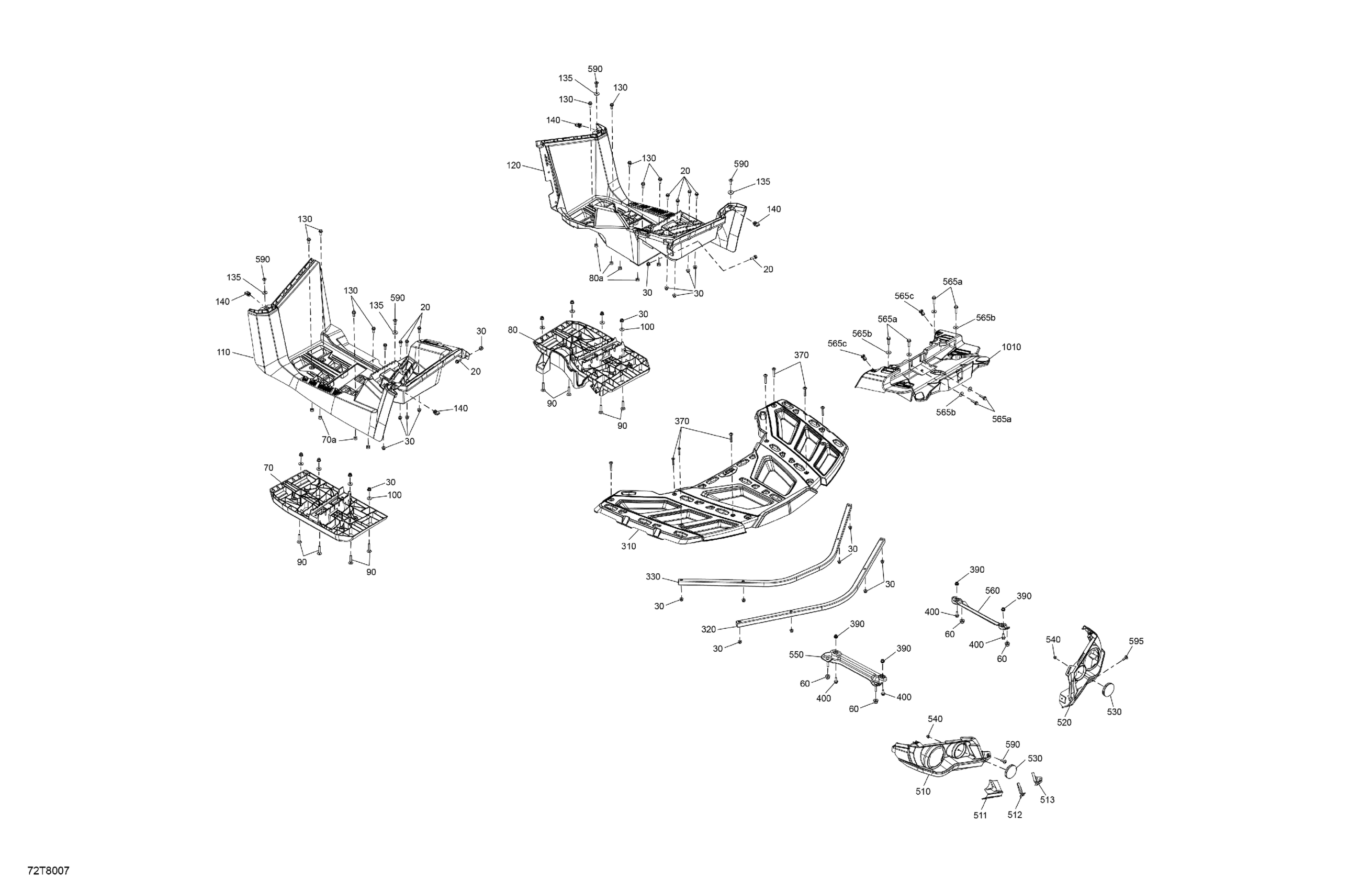

Can-Am OUTLANDER MAX - 4X4 - XTP - 850 EFI - 5FJC - Timeless Black Metallic - CALI, 2018 Body - Rear Section Diagram

Description

Price

Hex. Flange Screw M6 X 20

207662054

$1.49

Flange Elastic Nut M6

233261434

$4.49

Hex. Flange Elastic Nut M8

233281434

$2.19

LH Structural Footboard

705011540

$119.99

70a

Square Nut M6

232862412

$1.49

RH Structural Footboard

705011542

$109.99

80a

Square Nut M6

232862412

$1.49

Carriage Bolt M6 X 35

207763554

$2.19

100

Flat Washer 6 mm

234062410

$1.49

110

LH Footrest Max

705003525

$134.99

120

RH Footrest Max

705003521

$134.99

130

Hex. Flange Screw M6 X 16

207661654

$2.19

135

Flat Washer

224061201

$1.49

140

Panel Nut M6 X 1.0

250100198

$2.19

310

Luggage Rack Kit

715001852

$224.99

320

Sectional Bent Tube

705016640

$38.99

330

Sectional Bent Tube

705016641

$42.99

370

Black, Torx Screw M6 X 35

250000646

$1.49

390

Insert Half Hex Body M6 x 1.0

250100199

$3.29

400

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.99

510

LH Rear Facia | North America, International

705006643

$15.99

511

Heat Shield

707002103

$10.49

512

Heat Shield

707002107

$2.59

513

Heat Shield

707002293

$10.49

520

RH Rear Facia | North America, International

705006650

$15.99

530

Red Reflector

705011221

$14.99

540

Hex. Flange Elastic Nut M5

233251414

$1.91

550

LH Support

705007277

$30.99

560

RH Support

705007278

$30.99

565a

Hex Flange Screw M6 X 25

250000841

$7.69

565b

Stainless Steel Flat Washer

234062670

$2.19

565c

Tuflok Plastic Rivet

293150230

$1.49

590

Torx Screw M6 X 20

250000722

$1.69

595

Hex. Flange Screw M6 X 16

207661654

$2.19

1010

Seat Holder

705007948

$58.99
