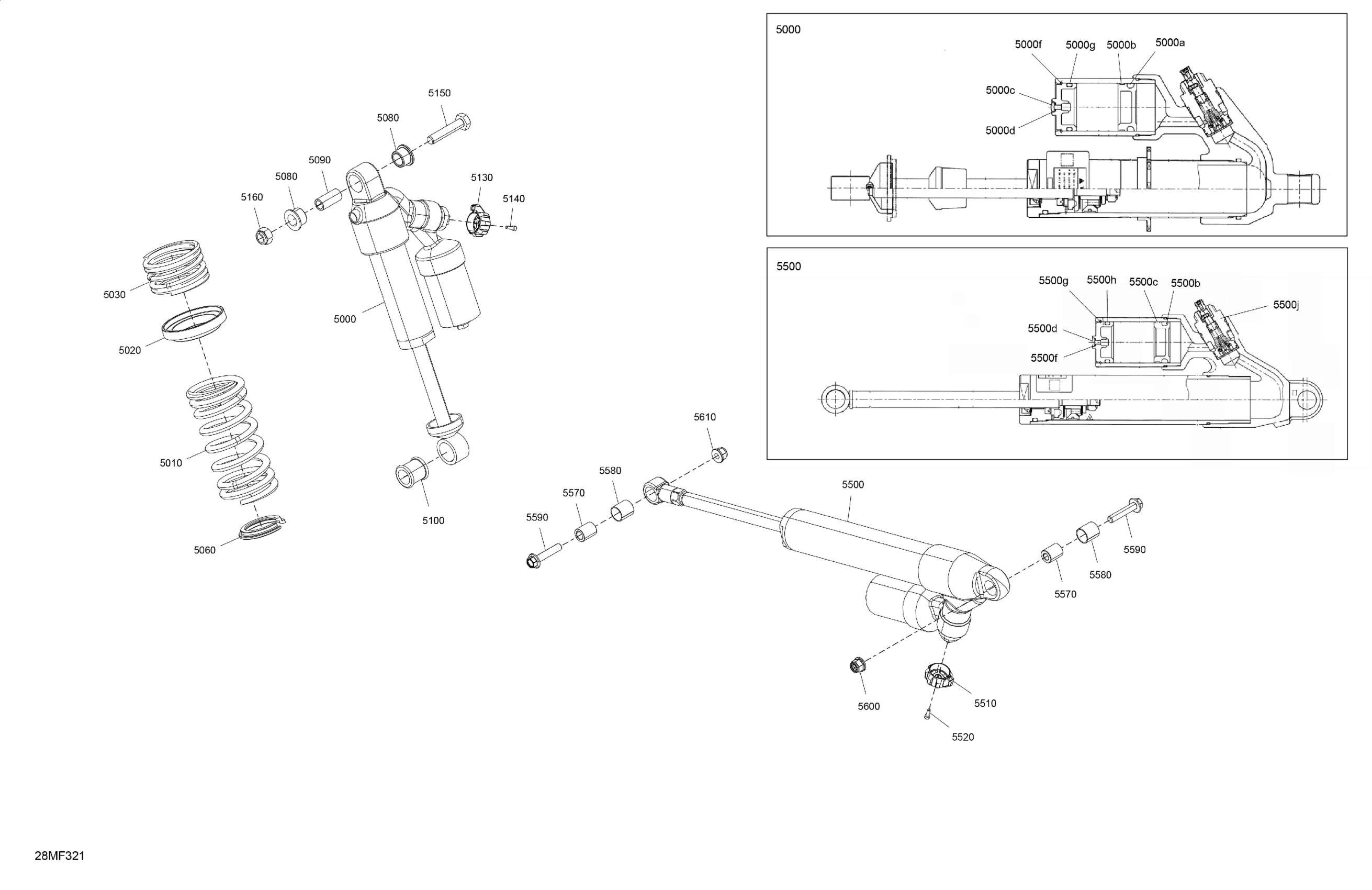

Ski-Doo MXZ - X-RS - 600R E -TEC - MZTA - Deep Black - 15X129X1.5IR Track, 2026 Suspension - Rear Shocks Diagram

#

Description

Price

5000

Center Shock Absorber | Includes 5000 to 5000g

503196191

Unavailable

5000a

O-Ring

415093807

Unavailable

5000b

Piston Ring | Not Shown

415093806

Unavailable

5000c

Screw | Not Shown

505070399

Unavailable

5000d

O-Ring

505070400

Unavailable

5000f

Circlip - Call your local BRP dealership

715900076

Unavailable

5000g

O-Ring

415093804

Unavailable

5010

Black, Spring (162mm) Long

503193065

Unavailable

5020

Spring Spacer

503192743

Unavailable

5030

Black, Spring (52mm) Short

503193479

Unavailable

5060

Spring Stopper

503194270

Unavailable

5080

Urethane Bushing

503189117

Unavailable

5090

Bushing | Includes 240d to 240d1

503189282

Unavailable

5100

Bushing

503189271

Unavailable

5130

Adjustment Button

503196209

Unavailable

5140

Allen Screw M3 X 0.5 X 10

250000644

Unavailable

5150

Hex. Screw M10 X 1.5 X 50

207005044

Unavailable

5160

Elastic Locking Nut M10

233601466

Unavailable

5500

Rear Shock Absorber | Includes 5500 to 5500j

503196549

Unavailable

5500b

O-Ring

415093807

Unavailable

5500c

Piston Ring | Not Shown

415093806

Unavailable

5500d

Screw | Not Shown

505070399

Unavailable

5500f

O-Ring

505070400

Unavailable

5500g

Circlip - Call your local BRP dealership

715900076

Unavailable

5500h

O-Ring

415093804

Unavailable

5500j

Valve

503195958

Unavailable

5510

Adjustment Button

503196209

Unavailable

5520

Allen Screw M3 X 0.5 X 10

250000644

Unavailable

5570

Axle Shock Absorber

503196509

Unavailable

5580

Leg Cushion

505072663

Unavailable

5590

Hex Flange Screw M8 X 40

207684056

Unavailable

5600

Elastic Flange Nut M8

233281466

Unavailable

5610

Elastic Flange Nut M8

233281466

Unavailable
