- MXZ - X-RS - 600R E -TEC - MZTA - Deep Black - 15X129X1.5IR Track, 2026
Drive - System

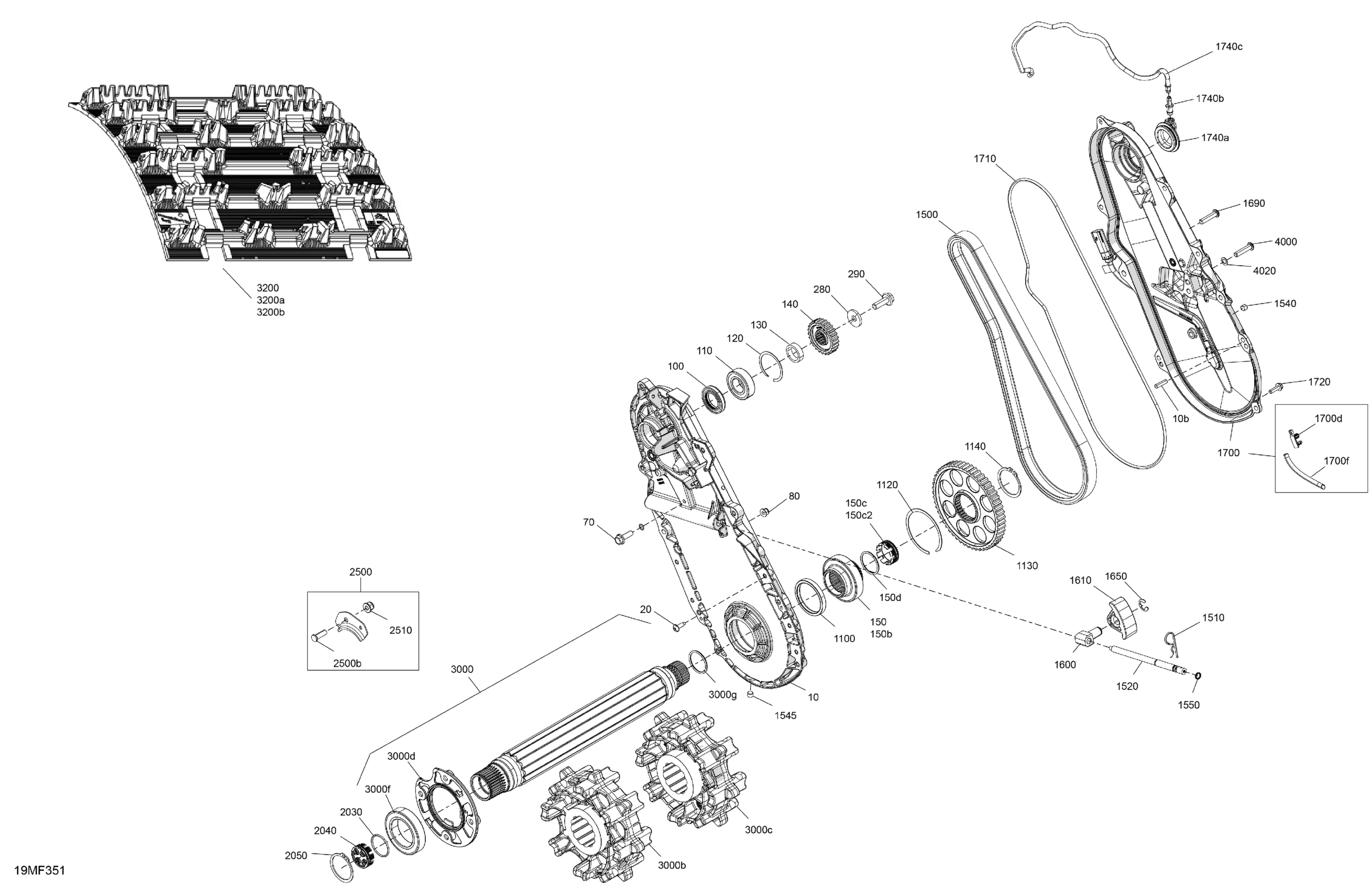

Ski-Doo MXZ - X-RS - 600R E -TEC - MZTA - Deep Black - 15X129X1.5IR Track, 2026 Drive - System Diagram
#
10
Deep Black, Chain Case Ass'y | Includes 10 to 10b
504154291
Unavailable
10b
Dowel Pin
250400068
Unavailable
20
Socket Head Screw M6 X 18
250001213
Unavailable
70
Hex Flange Screw M8 X 25 S.Grip
250001016
Unavailable
80
Flange Elastic Nut M6
233261434
Unavailable
100
Oil Seal
293200168
Unavailable
110
Ball Bearing
293350115
Unavailable
120
Circlip
504152576
Unavailable
130
Shim
504154888
Unavailable
140
Sprocket 25 Teeth
504153912
Unavailable
150
Adapter Ass'y | Includes 150 to 150d
504154893
Unavailable
150b
Ball Bearing
293350142
Unavailable
150c
Magnetic Cap | Includes 150c to 150c2
504154019
Unavailable
150c2
Cap
504154043
Unavailable
150d
O-Ring Seal
293300291
Unavailable
280
Spring Washer M10
504152784
Unavailable
290
Hex. Flange Screw M10 X 30, Scotch Grip
207503046
Unavailable
1100
Oil Seal
293200159
Unavailable
1120
Circlip
504152582
Unavailable
1130
Sprocket 51 Teeths
504153997
Unavailable
1140
Circlip
504152572
Unavailable
1500
Drive Chain, 112 Links
504153268
Unavailable
1510
Hair Pin
414575600
Unavailable
1520
Adjustment Screw
504153760
Unavailable
1540
Hex. Countersunk Drain Plug
250500013
Unavailable
1545
Hex. Countersunk Drain Plug
250500013
Unavailable
1550
O-Ring
293300202
Unavailable
1600
Chain Tensioner
504154577
Unavailable
1610
Slider Chain
504153312
Unavailable
1650
Circlip
293370105
Unavailable
1690
Hex. Button Head Screw M8 X 1.25 X 35
250000764
Unavailable
1700
Deep Black, Chain Case Cover Ass'y | Includes 1700 to 1700f
504155074
Unavailable
1700d
Clip Connector
515178223
Unavailable
1700f
Braided Sleeve
415130141
Unavailable
1710
O Ring
293300214
Unavailable
1720
Hex. Flange Screw M6X20
250001153
Unavailable
1740a
Plug
504154839
Unavailable
1740b
Straight Pipe Fitting
293710180
Unavailable
1740c
Polyurethane Hose 10000Mm Long
219704410
Unavailable
2030
O-Ring
293300201
Unavailable
2040
Cap
504154043
Unavailable
2050
Circlip
504152572
Unavailable
2500
Bearing Housing Ass'y | Includes 2500 to 2500b
504153695
Unavailable
2500b
Clinch Stud, M8 X 25
250300028
Unavailable
2510
Hex. Flange Elastic Nut M8
233281414
Unavailable
3000
Drive Axle Ass'y | Includes 3000 to 3000g
504154544
Unavailable
3000b
Not Available As Spare Parts
XXX
Unavailable
3000c
Not Available As Spare Parts
XXX
Unavailable
3000d
Retaining Ring
504154417
Unavailable
3000f
Ball Bearing
293350059
Unavailable
3000g
O-Ring Seal
293300291
Unavailable
3200
Track 15 X 129 X 1,5 | Includes 3200 to 3200b
504154386
Unavailable
3200a
Clip
415130661
Unavailable
3200b
Cleat
504152651
Unavailable
4000
Hex. Button Head Screw M8 X 1.25 X 35
250000764
Unavailable
4020
Washer
504082900
Unavailable
