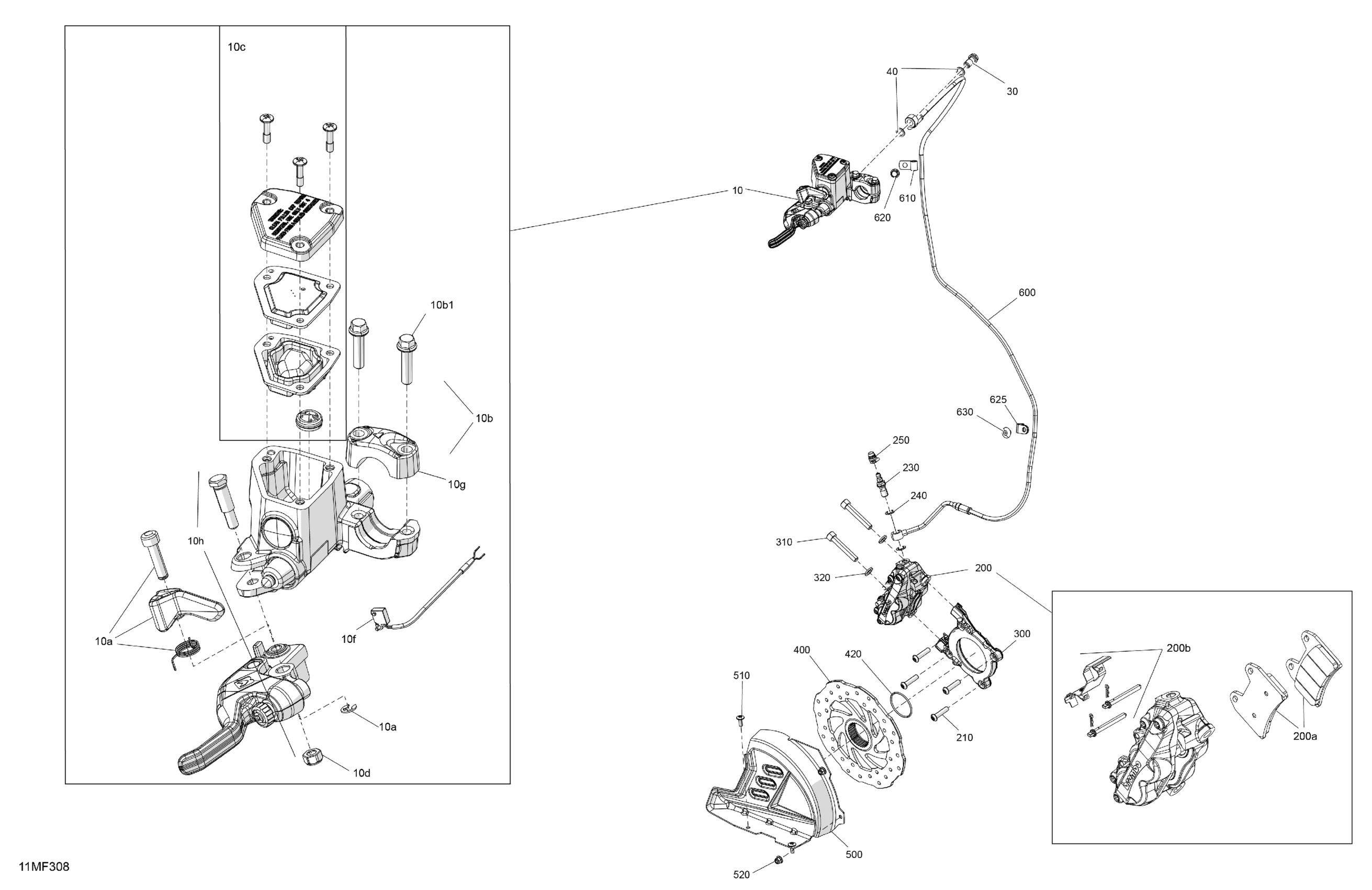

Ski-Doo MXZ - X-RS - 600R E -TEC - MZTA - Deep Black - 15X129X1.5IR Track, 2026 Mechanic - Brakes Diagram

Description

Price

Brake Master Cylinder | Includes 10 to 10h

507032688

$318.43

10a

Hand Brake Lever Ass'y

507032745

$114.58

10b

Mounting Clamp | Includes 10b to 10b1

507032736

$23.82

10b1

Hex Flange Screw M6 X 25

229000652

$2.06

10c

Reservoir Cover Kit

507032737

$109.97

10d

Nut

507032743

$9.88

10f

Micro Switch

507032738

$70.74

10g

Mounting Clamp

507032761

$23.82

10h

Pin Ass'y

415030000

$17.66

Banjo Bolt

507032551

$5.52

Washer

414920600

$1.52

200

Brake Caliper | Includes 200 to 200c

507032763

$341.51

200a

Brake Pad Kit

507032724

$76.12

200b

Lock Pin Kit

507032765

$39.97

200c

Spring Support | Not Shown

507032731

$32.28

210

Hex. Button Head Screw M8 X 1.25 X 35

250000764

$1.66

230

Banjo Bolt/ Bleeder

705601201

$17.66

240

Washer

414920600

$1.52

250

Bleeder Bolt Cap

705601190

$4.28

300

Brake Caliper Support

507032718

$119.97

310

Screw Socket S,Grip M10 X 60

205506044

$7.42

320

Washer

503192496

$0.75

400

Machined Disc Brake

507032697

$179.97

420

O Ring

293300221

$1.58

500

Deep Black, Disk Brake Guard

507032792

Unavailable

510

Torx Head Screw M6 X 16

250000717

$1.74

520

Hex. Flange Elastic Nut M6

233261466

$1.66

600

Hose Caliper

507032700

$59.97

610

Open Clamp

414108400

$3.11

620

Hex. Flange Screw M6 X 10

210261040

$1.25

625

Hose Clamp

293650257

$5.15

630

Blind Rivet 3/16

293150231

$0.31
